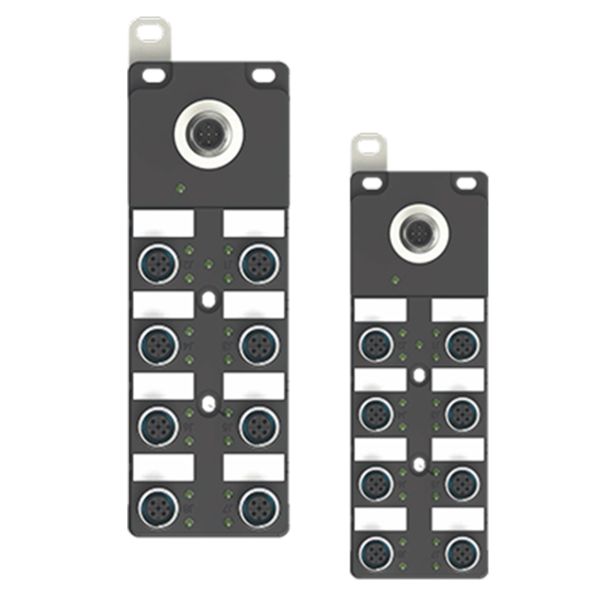

IACM-AIO8VI-IOL IP67 IO LINK Slave Module 8 Analog Input / Output Series IOLINK Protocol

IACM-AIO8VI-IOL,IOLINK Slave Station,8 Analog Input/Output Series

Product characteristics

Operating voltage: 10-30VDC

Output function: NPN/PNP, NO/NC Optional

With polarity, overload, short circuit protection

Protection level: IP67

Direct outlet type, connector type

Operating temperature -25°C-+70%C

The use of optimized traditional technology and advanced packaging technology to ensure long-term stability in harsh Environments

IO-LINK	Model			Product Description		I/O Connection Mode
Class A	IACM-AIO8VI-IOL			IO-LINK Slave Module 8×AlO port IP67 Protection class		M12,5Pin hole holder, A code
Communication and power parameters
Connection type	1x M12 A-code; 5- Core hole holder
Communication protocol	IOLINK
Communication rate	38.4 Kbit/s(COM2)
Minimum cycle time	|55 ms
Communication port tightening torque	M12;0.5Nm
System supply voltage US	18…30 VDC(type.24VDC)
Power port tightening torque	M12:0.5Nm
No load current consumption	≤80mA
Analog input and output parameters
Number of inputs and outputs	8 Channel current or voltage
Input and output port locations	J1…J8
Current input and output range	0~20 mA,4~20 mA
Voltage input and output range	0~+5 VDC;0~+10 VDC;+5~+10 VDC
Diagnose	Contains self-diagnosis
Sensor power supply	24VDC
Ripple wave	<1%
Voltage input and output error	<+0.3% Full scale
Current input and output errors	<±0.3% Full scale
Resolution ratio	16 Bit
Measurement display and output format	16 Bit unsigned integer
Factory settings	0~+10 VDC input
Module indicator light
IOLINK protocol
PWR	Green: the module power supply is normal
	Out: The module does not have power supply
Al	Extinguished (LEDA,LEDB) : The port is closed
(J1.….J8)	Green (LEDA) : channel signal is normal, input/output signal is within valid range
	Red (LEDA) : input/output signals are not in valid range
	Red (LEDA,LEDB) : 1 and 3 pin short circuit or port break
IO-LINK	Green: communication is not connected
	Green flash: communication is normal
	Green flash: communication is normal
I/O port pin definition
Port	Definition of stitch			Address distribution
M12
A-Code Mother end
Underlying parameter
Dimension Figure		Shell material		PA6+GF
		Shell color		Black
		level of protection		IP67, epoxy full potting
		Boundary dimension		155mm x53mm x28.7mm
		Weight		217g
		Operating temperature		-25°C...70°C
		Storage/transport temperature		40°C...85°C
		Operation humidity		5%...95%
		Store/transport humidity		5%...95%
		Operating atmospheric pressure		80KPa...106KPa
		Store/transport atmospheric pressure		80KPa...106KPa
		I/O Port tightening torque		M12:0.5Nm
		Application environment		In accordance with EN-61131
		Application environment		Comply with IEC60068-2
		Impact test		Comply with IEC60068-27
		Free drop test		Comply with IEC60068-32
		Electromagnetic compatibility (EMC)		Comply with IEC61000-4-2,-3,-4
		Authentication		CE,RoHS
		Mounting hole Specification		∅4.3mm x 4
