| Categories | IP20 LED Power Supply |
|---|---|
| Brand Name: | ANENpower |
| Model Number: | APL06C |
| Certification: | UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA |
| Place of Origin: | Shenzhen |
| MOQ: | 500pcs |
| Price: | Please contact our Sales |
| Payment Terms: | 50% deposit, 50% before dispatch |
| Supply Ability: | 500,000.00pcs/month |
| Delivery Time: | 18~25 working days after receiving the deposit |
| Packaging Details: | PE bag / White box / Custom made |
| Power: | 6W max. |
| Input: | 220-240VAC |
| Output Voltage: | 12V/ 24V |
| Dimension(LxWxH): | 128*46*12.5mm |
| Voltage Tolerance: | ±5% |
| Riple(P-P): | ＜1% |
| Efficiency: | ≥85% |
| Applicant: | Cabinet lights, LED strips, LED indoor lighting, LED decorative lighting, LED building lighting |
| Company Info. |
| ANEN Enterprise Limited |
| View Contact Details |
| Product List |

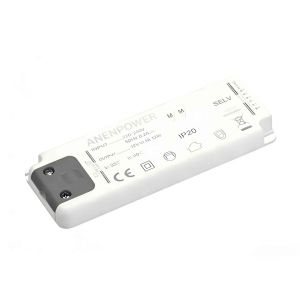

Ultra-Slim 6W 12/24V LED Power Supply with IP20 Protection – Dedicated Driver for Under-Cabinet & Showcase Lighting
Compact and efficient, the Ultra-Slim 6W LED Power Supply delivers reliable 12V or 24V output in a space-saving design—perfect for tight installations. With IP20 protection, it’s built for safe, indoor use in dry environments. Specially engineered for under-cabinet and showcase lighting, this dedicated driver ensures flicker-free performance and consistent brightness, making it an ideal choice for kitchens, retail displays, and accent lighting where clean lines and dependable operation matter most.
- Universal Input: 220-240V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power
consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
| MODEL DETAIL SPEC. | APL006C-1200500 | APL006C-1201670 | ||||||||
| INPUT | Input Voltage: | 220-240VAC | ||||||||
| Range of Input Voltage: | 198-264VAC | |||||||||
| Input Frequency: | 50/60Hz | |||||||||
| Input Current: | 0.1AMAX@Full Load | |||||||||
| Inrush Current: | < 65 Amps at 230VAC/50Hz@full load | |||||||||
| Leakage Current: | < 0.25mA/240VAC | |||||||||
| THD (Full load): | < 20% | |||||||||
| Unload Power Consumption: | < 0.5W | |||||||||
| Efficiency: | 85% | |||||||||
| Power Factor: | ≥0.7@Full Load 220-240VAC | |||||||||
| OUTPUT | DC Voltage: | 12V | 24V | |||||||
| Rated Current(Max): | 0.5A | 0.25A | ||||||||
| Rated Power(Max): | 6W | 6W | ||||||||
| Voltage Tolerance: | ±5% | |||||||||
| Ripple and Noise: | 400mVp-p | 400mVp-p | ||||||||
| Line Regulation: | ±3% | |||||||||
| Load Regulation: | ±5% | |||||||||
| Setup, Rise, Hold Up Time: | 1s, 10ms/60ms 230VAC @ full load | |||||||||
| ENVIRONMENTAL | Operating Temperature Ta: | -20℃ ~ +45℃ | ||||||||
| Storage Temp: | -40℃ ~ +85℃ | |||||||||
| Maximum Case Temperature Tc: | +85℃ | |||||||||
| Humidity: | 20 ~ 95% RH | |||||||||
| Lifetime: | >30000hours@ta 40℃ | |||||||||
| PROTECTION | Over Load: | Yes , Protection type: Auto Restore | ||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| Over Voltage: | Yes , Protection type: Auto Restore | |||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||
| Short Circuit: | Yes , Protection type: Auto Restore | |||||||||
| SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015+A1:2021;EN62493:2015 | ||||||||
| Withstand Voltage: | I/P-O/P:3750VAC | |||||||||
| Harmonic: | EN61000-3-2 Class C EN61000-3-3 | |||||||||
| EMI: | Compliance to EN55015 | |||||||||
| EMS: | Compliance to EN61547:2009 | |||||||||
| OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | ||||||||
| Case Material and Size: | Plastic | |||||||||
| IP Grade: | IP20 | |||||||||
| Size: | 128*46*12.5mm | |||||||||
| Weight: | 70g / pcs | |||||||||
| Packaging: | 200PCS/CTN | |||||||||
|
