| Categories | IP20 LED Power Supply |
|---|---|
| Brand Name: | ANENpower |
| Model Number: | APL012C |
| Certification: | UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA |
| Place of Origin: | Shenzhen |
| MOQ: | 500pcs |
| Price: | Please contact our Sales |
| Payment Terms: | 50% deposit, 50% before dispatch |
| Supply Ability: | 500,000.00pcs/month |
| Delivery Time: | 18~25 working days after receiving the deposit |
| Packaging Details: | PE bag / White box / Custom made |
| Power: | 12W max. |
| Input: | 220-240VAC |
| Output Voltage: | 12V/ 24V |
| Dimension(LxWxH): | 128*46*12.5mm |
| Voltage Tolerance: | ±5% |
| Riple(P-P): | ＜1% |
| Efficiency: | ≥85% |
| Applicant: | Cabinet lights, LED strips, LED indoor lighting, LED decorative lighting, LED building lighting |
| Company Info. |
| ANEN Enterprise Limited |
| View Contact Details |
| Product List |

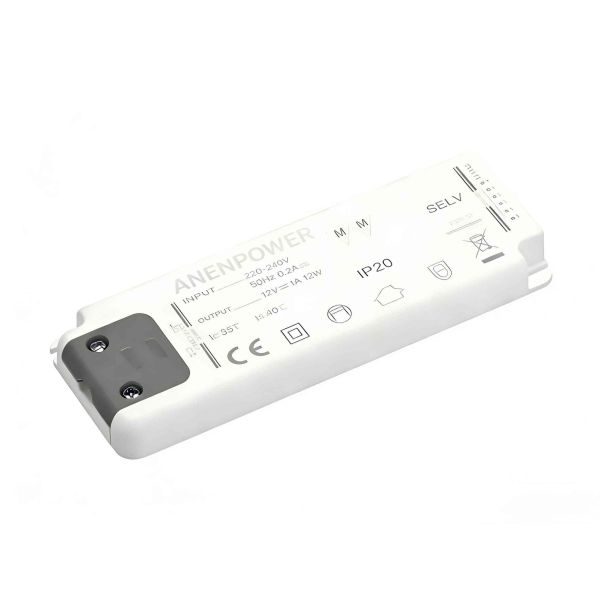

12W Max 12/24V IP20 Super Thin LED Power Supply – Compact Driver for Home & Commercial Cabinet Light Fixtures
Delivering up to 12W of stable power, this ultra-slim driver supports both 12V and 24V LED lighting systems—ideal for a wide range of low-voltage fixtures. Its minimal profile fits effortlessly into tight spaces under cabinets, inside display cases, or within shelving units. With IP20 protection, it’s optimized for safe, reliable indoor use in both residential and commercial settings. Whether for kitchen task lighting, retail showcases, or ambient home accents, this compact power supply combines performance, efficiency, and discreet design.
- Universal Input: 220-240V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power
consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
| MODEL DETAIL SPEC. | APL012C-1201000 | APL012C-2400500 | ||||||||
| INPUT | Input Voltage: | 220-240VAC | ||||||||
| Range of Input Voltage: | 198-264VAC | |||||||||
| Input Frequency: | 50/60Hz | |||||||||
| Input Current: | 0.1AMAX@Full Load | |||||||||
| Inrush Current: | < 65 Amps at 230VAC/50Hz@full load | |||||||||
| Leakage Current: | < 0.25mA/240VAC | |||||||||
| THD (Full load): | < 20% | |||||||||
| Unload Power Consumption: | < 0.5W | |||||||||
| Efficiency: | 85% | |||||||||
| Power Factor: | ≥0.7@Full Load 220-240VAC | |||||||||
| OUTPUT | DC Voltage: | 12V | 24V | |||||||
| Rated Current(Max): | 1.0A | 0.5A | ||||||||
| Rated Power(Max): | 12W | 12W | ||||||||
| Voltage Tolerance: | ±5% | |||||||||
| Ripple and Noise: | 400mVp-p | 400mVp-p | ||||||||
| Line Regulation: | ±3% | |||||||||
| Load Regulation: | ±5% | |||||||||
| Setup, Rise, Hold Up Time: | 1s, 10ms/60ms 230VAC @ full load | |||||||||
| ENVIRONMENTAL | Operating Temperature Ta: | -20℃ ~ +45℃ | ||||||||
| Storage Temp: | -40℃ ~ +85℃ | |||||||||
| Maximum Case Temperature Tc: | +85℃ | |||||||||
| Humidity: | 20 ~ 95% RH | |||||||||
| Lifetime: | >30000hours@ta 40℃ | |||||||||
| PROTECTION | Over Load: | Yes , Protection type: Auto Restore | ||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| Over Voltage: | Yes , Protection type: Auto Restore | |||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||
| Short Circuit: | Yes , Protection type: Auto Restore | |||||||||
| SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015+A1:2021;EN62493:2015 | ||||||||
| Withstand Voltage: | I/P-O/P:3750VAC | |||||||||
| Harmonic: | EN61000-3-2 Class C EN61000-3-3 | |||||||||
| EMI: | Compliance to EN55015 | |||||||||
| EMS: | Compliance to EN61547:2009 | |||||||||
| OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | ||||||||
| Case Material and Size: | Plastic | |||||||||
| IP Grade: | IP20 | |||||||||
| Size: | 128*46*12.5mm | |||||||||
| Weight: | 70g / pcs | |||||||||
| Packaging: | 200PCS/CTN | |||||||||
|
