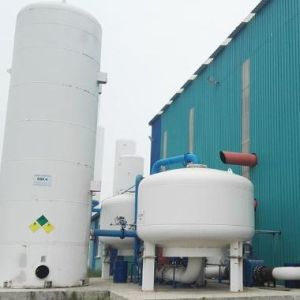

VPSA Oxygen Generator with 1 Year Maintenance Interval Vertical Placement and Cylindrical Shape for Industrial and Medical Use

Categories VPSA Oxygen Generator
Brand Name: GNEE
Certification: SGS
Place of Origin: CHINA
MOQ: ≥1sets
Payment Terms: L/C,D/A,D/P,MoneyGram,Western Union,T/T
Supply Ability: 25 every month
Packaging Details: Wooden box packaging
Keyword: vpsa oxygen plant
Safety Device: Pressure Relief Valve
Shape: Cylindrical
Power Consumption: 0.5-1.5 kW/Nm3
Placement Method: Vertical
Maintenance Interval: 1 year
Operating Temperature: 5-45°C
Outer Vessel Diameter: 2000 mm
Application: Oxygen production
Length: 6058mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

VPSA Oxygen Generator with 1 Year Maintenance Interval Vertical Placement and Cylindrical Shape for Industrial and Medical Use

The VPSA oxygen system is mainly composed of blower, vacuum pump, switching valve, adsorber and oxygen balancing tank. After the dust particles are removed by the inlet filter, the raw air is pressurized by the Roots blower to 0.3-0.5barg and enters one of the adsorbers. The adsorber is filled with adsorbent, in which water, carbon dioxide, and a small number of other gas components at the adsorber entrance are loaded at the bottom of the activated alumina adsorption, then nitrogen is loaded at the activated alumina upper zeolite adsorption. Oxygen (including argon) is a non-adsorptive component and is discharged from the top outlet of the adsorber as product gas to the oxygen balancing tank.


Product Parameters

Model

purity

Size

Weight

Inlet

Oulet

1

VPSA-3

90-95%

1200*900*1900

520

DN15

G1/2"

2

VPSA-5

90-95%

1350*1050*2100

750

DN20

G1/2"

3

VPSA-10

90-95%

1550*1300*2100

1100

DN25

G1/2"

4

VPSA-15

90-95%

1700*1450*2350

1500

DN32

G1/2"

5

VPSA-20

90-95%

1800*1550*2350

1750

DN32

G1/2"

6

VPSA-25

90-95%

1900*1650*2400

2000

DN40

G1"

7

VPSA-30

90-95%

2000*1750*2400

2250

DN40

G1/2"

8

VPSA-35

90-95%

1970*1250*2800

1800

DN40

DN25

9

VPSA-40

90-95%

2000*1300*2460

2380

DN40

DN25

10

VPSA-50

90-95%

2000*1300*2800

2790

DN50

DN25

11

VPSA-60

90-95%

2000*1300*2800

2930

DN50

DN25

12

VPSA-70

90-95%

2200*1500*2900

3190

DN50

DN40

13

VPSA-80

90-95%

2200*1500*2900

3585

DN50

DN40

14

VPSA-90

90-95%

2250*1550*2980

3940

DN50

DN40

15

VPSA-100

90-95%

2370*1500*3050

4249

DN65

DN40

16

VPSA-110

90-95%

2370*1500*3240

4508

DN65

DN40

17

VPSA-120

90-95%

2370*1500*3440

4708

DN65

DN40

18

VPSA-130

90-95%

2370*1500*3600

4910

DN65

DN50

19

VPSA-160

90-95%

2440*1850*3700

5810

DN80

DN65

psa Cryogenic Nitrogen Oxygen Generator

psa Cryogenic Nitrogen Oxygen Generator

psa Cryogenic Nitrogen Oxygen Generator


When the adsorbent is absorbed to a certain degree, the adsorbent will reach saturation state. At this time, the vacuum pump is used to vacuum the adsorbent through the switching valve (opposite to the adsorption direction), and the vacuum degree is 0.5-0.7barg. The adsorbed water, carbon dioxide, nitrogen and a small amount of other gas components are extracted and discharged to the atmosphere, and the adsorbent is recycled.

VPSA oxygen production device because of low energy consumption, simple operation, in paper, glass, chemical industry, metallurgy, minerals, environmental protection, building materials, light industry, aquaculture, biotechnology and other fields have beenwidely used.


In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in VPSA Oxygen Systems or other products, please feel free to send an email to info@gneeheatex.com. We will be very happy to serve you.
