6W SAA & RCM Certified Ultra-Thin LED Power Supply – 12V/500mA or 24V/250mA for Safe, Reliable Indoor Lighting

Categories IP20 LED Power Supply
Brand Name: ANENpower
Model Number: APL006S
Certification: UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin: Shenzhen
MOQ: 500pcs
Price: Please contact our Sales
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Delivery Time: 18~25 working days after receiving the deposit
Packaging Details: PE bag / White box / Custom made
Power: 6W max.
Input: 90-265V AC
Output Voltage: 12V/ 24V/ 36V /48V
Output Current: 500mA/ 250mA/ 160mA/ 125mA
Dimension(LxWxH): 128x46x12.5mm
Voltage Tolerance: ±5%
Riple(P-P): <1%
Efficiency: ≥85%
Applicant: Cabinet lights, LED strips, LED indoor lighting, LED decorative lighting, LED building lighting
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

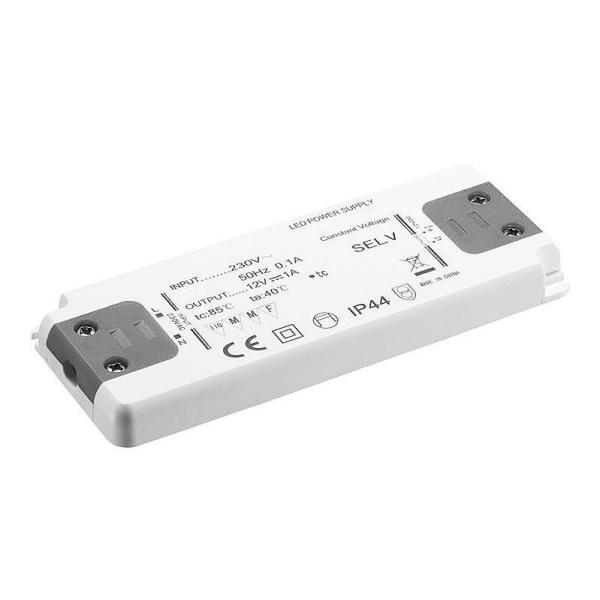

6W SAA & RCM Certified Ultra-Thin LED Power Supply – 12V/500mA or 24V/250mA for Safe, Reliable Indoor Lighting

6W SAA RCM Certified Ultra Thin 12V 500mA 24V 250mA Output LED Power Supply Driver


Engineered for safety and performance, this 6W ultra-thin LED power supply is fully certified with SAA and RCM—ensuring compliance with Australian electrical standards. It delivers a stable 12V at 500mA or 24V at 250mA output, making it ideal for low-voltage LED strips, under-cabinet lights, and display lighting in homes or commercial spaces. Its slim, compact design fits neatly in confined areas, while the IP20 rating guarantees safe operation in dry indoor environments. Trust certified quality for worry-free, flicker-free illumination.


- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating


MODEL DETAIL SPEC.

APL006S

-1200500

APL006S

-2400250

APL006S

-3600160

APL006S

-4800125

INPUTInput Voltage:100-240VAC/ 200-240VAC
Input Frequency:50-60Hz
Inrush Current:65 Amps max. at 230VAC/50Hz,full load
AC Current:0.21A/230VAC
Leakage Current:<0.25mA/240VAC
Efficiency:78%78%78%78%
OUTPUTDC Voltage:12V24V36V48V
Rated Current:500mA250mA160mA125mA
Rated Power:6W6W6W6W
Voltage Tolerance:±5.0%±5.0%±5.0%±5.0%
Ripple and Noise:120mVp-p240mVp-p360mVp-p480mVp-p
Line Regulation:±3%
Load Regulation:±5%
Setup, Rise, Hold Up time:1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTALOperating Temperature:-20 ~ +50 (Refer to "Derating Curve")
Storage Temp:-40℃ ~ 85℃
Storage Humidity:20 ~ 95% RH
Working Humidity:20 ~ 95% RH non-condensing
PROTECTIONOver Load:Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage:12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature:Shut down o/p voltage, re-power on to recover
SAFETY & EMCSafety Regulations:EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage:I/P-O/P:3750KVAC
HarmonicEN61000-3-2 Class C EN61000-3-3
EMI:Compliance to EN55015
EMS:compliance to 61547:2009
OTHERMTBF:200,000 Hours Minimum at Full Load at 25℃ Ambient
Size:127*50*12mm
Weight:70g / pcs
Packaging:200PCS/CTN
