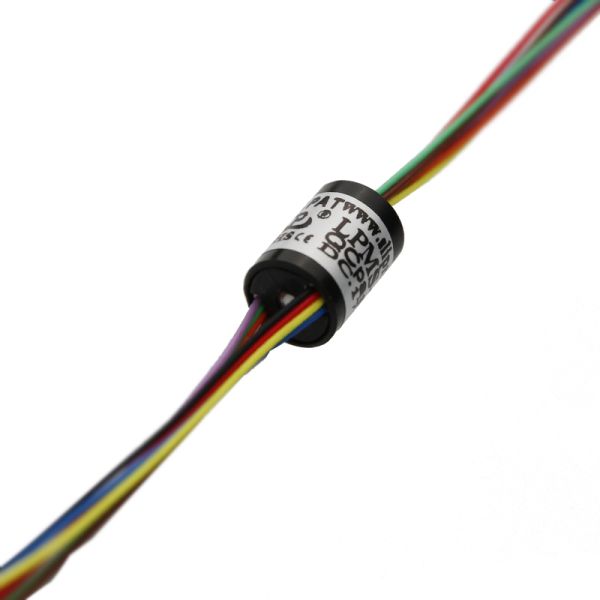

8 Circuit Capsule Slip Ring 1A 240VAC/DC Precious Metal

Bargain Price Only in Alibaba

LPMS-08A Slip Ring Description

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.

Typically, slip ring consists of a stationary graphite or metal contact (brush) which rubs on the outside diameter of a rotating metal ring. As the metal ring turns, the electric current or signal is conducted through the stationary brush to the metal ring making the connection.

LPMS-08A Slip Ring Feature

• 8 circuits models
• 1 amps per circuit, 240VAC/DC
• Precision assembly to provide exceptional rotational life
• Speed up to 300 rpm continuous
• Gold-Gold contacts
• Flexible, color-coded, silver-plated, lead wires
• Superior handling of low-level control signals

LPMS-08A Slip Ring Advantage

• Compact design to fit into the most demanding space.
• Smooth running
• Low electrical noise
• Quick shipment per your urgent requirement
• 360°continuous rotation
• Addition of special components

Dimension

Product Display

Welcome to JINPAT Electronics

Providing free custom slip rings solutions,creating propulsion for your technology

• With a large plant of over 12,000 square meters and more than 500 employees.
• The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.
• Long-term cooperation with global famous enterprises and agents all over the world.
• With Over 10,000 designs with success in civil, military, commercial and industrial applications.
• Founded in 1996, with more than 20 years of production and R & D experience.
• Providing free custom slip rings solutions,which can be suitable for a variety of equipment
• Fast delivery

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3.What kinds of slip rings do we offer

• Electrical Slip rings (capsule slip ring,through-hore slip ring,miniture slip ring, etc)
• Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)
• Pneumatic/Hydraulic Rotary Unions
• Custom Slip Rings
• Large volume series

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
