| Categories | Industrial Air Curtain |
|---|---|
| type: | PTC Heater |
| power source: | Electric |
| Place of Origin: | Guangdong, China |
| Brand Name: | Theodoor |
| dimension(l*w*h): | 1000mm |
| voltage: | 380 V |
| warranty: | 1 Year |
| working temperature range: | -10 - 43 |
| material: | Stainless Steel |
| key selling points: | Remote Control |
| core components: | Motor |
| machinery test report: | Provided |
| video outgoing-inspection: | Not Available |
| Weight (KG): | 25 |
| Heating capacity: | 6-12KW |
| Material: | Stainless steel cover and steel cabinet |
| Color: | Silver |
| Size: | 90cm ,120cm ,150cm, 180cm |
| Frequency: | 50HZ |
| Power supply: | 380V /50Hz |
| Heating element: | PTC Heater |
| Air velocity: | 8-9 m/s |
| Mounting: | Ceiling Mount |
| Control: | Remote control and key switch |
| Certification: | ISO9001, 14001, CCC |
| MOQ: | 50 |
| Price: | $199 |
| Company Info. |
| Guangzhou Theodoor Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Feature:

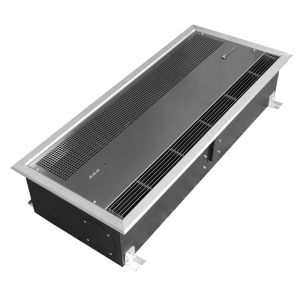

1. Recessed type air curtain, luxury and compact design.
2. Build in PTC Heater- Safety operation and high power output. With 3 power levels, creates different
temperature Air barriers, which effectively prevents cold airflow and ensure comfortable heating indoor.
3. Two types of airflow- provide heating or normal air, all seasons running.
4. High and low speed- with wireless Remote Control can meet the needs of various environments.
5. With over-heated protector in heater and Motor, effectively protecting.
6. Delay turnoff protecting device automatically performing when turning off heating air operating state,
efficiently extending product life.
7. Optional colors - stainless steel or white color steel cover.
Specifications:
Model | Size (mm) | Volt./ Freq. | Motor Power (W) | PTC heater Power (kW) | Air volume (m3/h) | Air speed (m/s) | Temp. rising (K) | N.W (kg) | |||||
Hi | low | H | M | L | |||||||||
RM-1209CS-3D/Y | 937x440x211 | 380v~ 50Hz | 160 | 110 | 6 | 4 | 2 | 1350 | 8-9 | 21-25 | 19 | ||
RM-1210CS-3D/Y | 1037x440x211 | 180 | 130 | 7 | 5 | 2 | 1550 | 21-25 | 21 | ||||
RM-1212CS-3D/Y | 1217x440x211 | 200 | 150 | 8 | 5 | 3 | 1850 | 21-25 | 25 | ||||
RM-1215CS-3D/Y | 1497x440x211 | 230 | 180 | 10 | 7 | 3 | 2400 | 21-25 | 29 | ||||
RM-1218CS-3D/Y | 1831x440x211 | 280 | 230 | 12 | 8 | 4 | 3050 | 21-25 | 33 | ||||
Photos:
What is AIR CURTAIN?
Air curtain is an air fresher equipment, to form an “invisible air door” by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.
PRECISION PRODUCTION
Founded in 2002, Theodoor is located in Guangzhou innovation and development new area—Sino-Singapore Knowledge City (SSGKC) with an area of 30,000 square meters. We have modern production workshop, applying the most advanced industrial equipments and detecting instruments to provide product manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.
With consecutive creation and innovation, Theodoor has built up national standard environmental simulation laboratory as well as air curtain long-time running laboratory. What’s more, Theodoor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry. Theodoor and the products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications etc.
Certificates
Our products has pass ISO9001, ISO14001, CCC, CE, ROHS, SASO, INMETRO, UL certifications.
OEM, ODM
Label, box design
Shipping arrangement
After sales spare parts support
How to select suitable air curtain?
There are many factors that we have to consider when selecting an air curtain, some of which are listed below:
1. Application
2. Door height
3. Door width
4. Outside wind
5. Building static pressure
6. Door structure
7. Ambient temperature
8. Air curtain size
9. Air curtain design and look
10. Noise level
11. Power consumption
Why choose us?
Experience: More than 22 years manufacture & export experience.
More than 100 models air curtain, suitable
for different environments.
Engineer: Professional R&D and engineer teams focus on Air curtain.
Machinery & technology: Advanced mould machines and equipments
ensure products performance and
reliability.
Materials and Quality: At every stage, from raw materials to the
end products we insist on results:
safety, efficiency, energy conservation and environmental
protection, and our rigorous testing ensure that
we reach standards higher than similar products. We want consumers
to depend on the precision and
reliability of our Air Curtain machinery.
Quality control: 100% product performance testing.
|
