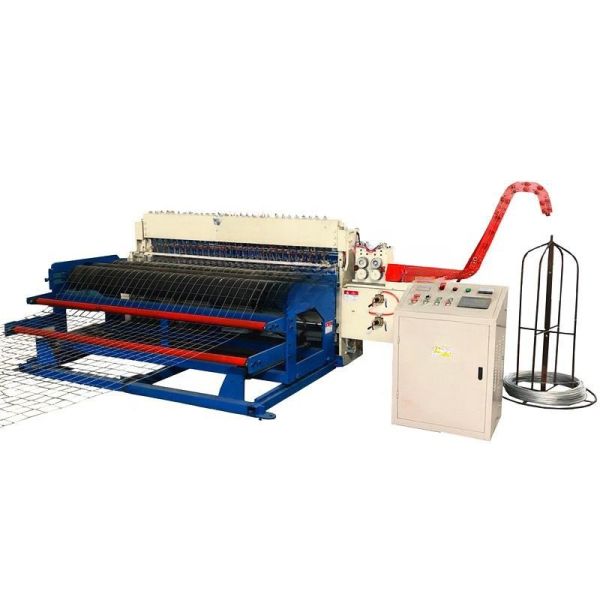

High Durability Wire Mesh Welding Machine Automatic 5.5kw 60-180 Times/Min Welding Speed

Automatic Wire Mesh Welding Machine High-Durability

1.Product Introduction:

Automatic welded wire mesh machine is our company according to the market trend of ordinary welding machine research and development improvement, the main welding machine and roll mesh system are operated separately.

2.Product Advantages:

The advantage of this technology is that the welding machine does not need to stop while roll mesh system unloading the wire mesh. This method greatly improves the production efficiency of the wire mesh and increases the competitiveness of the products.

This welded wire mesh machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.

3.PRODUCT SPECIFICATIONS

Model	DR-A	DR-B
Wire diameter	0.65-1.2 mm, 0.8-2 mm	1.5-3.5 mm
Line wire spacing	1/2” (12.5 mm)1” (25 mm) 2” (50 mm)	2” (50 mm)3” (75 mm) 4” (100 mm)
Cross wire spacing	10-200 mm	10-200 mm
Mesh width	4 feet (1.2 meter) 5 feet (1.5 meter) 6 feet (1.8 meter) 7 feet (2.1 meter)	4 feet (1.2 meter) 5 feet (1.5 meter) 6 feet (1.8 meter) 7 feet (2.1 meter)
Line wire feeding motor	2.0 kw (servo motor)	2.0 kw (servo motor)
Pull mesh motor	3.0 kw (servo motor)	3.0 kw (servo motor)
Welding transformer	70 kva*4pc, 5pc, 6pc, 7pc	125 kva*4pc, 5pc, 6pc, 7pc
Welding speed	60-180 times/min	60-100 times/min

4.Product Images:

Product Tags:


*From:	Your email address is incorrect!
*To:	Anping Weaver Wire Mesh Equipment Manufacturing Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Wire Mesh Welding Machine
Brand Name:	APBWR
Model Number:	DR
Certification:	ISO9001
Place of Origin:	CHINA
MOQ:	1 UNIT
Price:	$5000-50000
Payment Terms:	L/C,T/T
Supply Ability:	1000+ /year
Delivery Time:	14-21DAYS
Packaging Details:	Pallets or wooden crates as per customer's requirements.
Core components:	Engine, Motor, Pump
Machine type:	Wire Mesh Welding Machine
Machinery test report:	Provided
Key selling points:	High Productivity
Power (kw):	5.5kw
Weight (kg):	5800kg
Place of origin:	CHINA
Product name:	Welded Roll Mesh Machine
Voltage:	220V/380V/415V/440V (Customized)
Wire diameter:	0.4-0.6/0.6-1.4/1.2-2.5mm
Mesh opening size:	1/4'',1/2'',3/4'','1'', 2''/customized
Max Mesh length:	30-50 Meter/ROLL
Mesh width:	3-7 feet
Welded wire materials:	Low carbon steel wire,Galvanized wire, black
Transformer:	125kva*4
