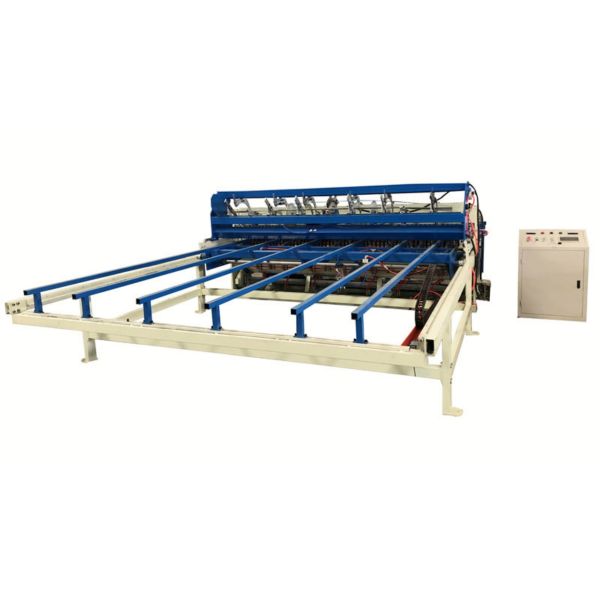

Safety Semi Auto Wire Mesh Panel Welding Machine Stable Running

Semi-Auto Wire Mesh Panel Welding Machine Stable-Running

1.Feature highlights:

Highly productive semi-automatic wire mesh panel welding machine for fence mesh, featuring synchronized digital control, precise servo motor mesh pulling, and a versatile welding transformer. The machine supports various wire types (low carbon, galvanized, black steel) and thicknesses (3.0-5.0 mm), with adjustable mesh sizes and no length limits. It ensures high efficiency with welding speeds of 40-80 times min and includes water-cooled transformers for extended operation.

The welding control system uses synchronized control with digital circuits to manage welding time and processes. The weft wire is fed using a rotating table and a stepping motor for automatic and precise feeding. The welded mesh does not require cutting—vertical wires are placed by hand, and there are no limits on the mesh length. A servo motor controls the pulling of the mesh, allowing for easy adjustments and accurate sizing. The machine can weld a variety of grid types and different mesh settings can be used. It features a new transformer that can weld wires of various thicknesses with a wide voltage range. Both simultaneous and partial welding do not interfere with other electrical devices.

2.CE certification

ensures compliance with international safety standards, facilitating global market access.

3.Supplier highlights:

This supplier mainly sells to Thailand, Chile, and Kazakhstan, offering full customization, design customization, and sample customization services, and holds product certifications. Customer satisfaction has reached 100.0%.

High productive Semi-automatic wire mesh panel welding machine for fence mesh, can be used for low carbon, galvanized, black steel wires.

4.Size information:

Model	KY-MWM-2000	KY-MWM-2500	KY-MWM-3000
Mesh width	Max.2000 mm	Max.2500 mm	Max.3000 mm
Mesh hole size	50 mm 100 mm 150 mm 200 mm 300 mm	50 mm 100 mm 150 mm 200 mm 300 mm	50 mm 100 mm 150 mm 200 mm 300 mm
Wire diameter	3.0-5.0 mm	3.0-5.0 mm	3.0-5.0 mm
Welding speed	40-80 Times/min	40-80 Times/min	40-80 Times/min
Transformer	125KVA*5	125KVA*6	125KVA*8
Dimensions	6.5 X 2.5 X 1.65 m	6.5 X 3.0 X 1.65 m	6.5 X 3.5 X 1.65 m
Weight	4500 KG	5500 KG	6500 KG

5.Detailed images:

Product spotlights

Product Tags:


*From:	Your email address is incorrect!
*To:	Anping Weaver Wire Mesh Equipment Manufacturing Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Wire Mesh Welding Machine
Brand Name:	APBWR
Model Number:	KY-MWM
Certification:	ISO9001
Place of Origin:	CHINA
MOQ:	1 UNIT
Price:	$5000-50000
Payment Terms:	T/T,L/C
Supply Ability:	1000+ /year
Delivery Time:	14-21DAYS
Packaging Details:	Pallets or wooden crates as per customer's requirements.
Place of origin:	CHINA
Weight (kg):	6500
Power (kw):	5.5
Control System:	PLC+touch screen
Core components:	Core components
Machine type:	Wire Mesh Welding Machine
Wire diameter:	4 - 8 mm
Machinery test report:	Provided
Key selling points:	High Productivity
Dimension(LWH):	7500mm700mm1200mm
Voltage:	220V/380V/415V/440V(Customized)
Wire material:	Cold drawing wire, low carbon wire, Galvanized wire
Line wire spacing:	50-3000 mm (or as your request)
Cross wire-spacing:	50-300mm
