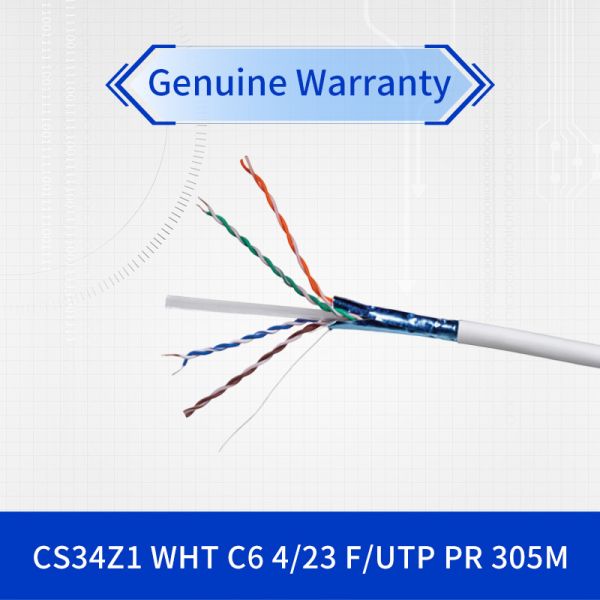

The CommScope NETCONNECT CS34Z1 represents a high-performance Category 6 cable solution engineered for modern network infrastructure. This F/UTP cable combines reliable data transmission with robust construction, making it suitable for both commercial and industrial applications. The cable features a distinctive white Low Smoke Zero Halogen jacket that minimizes toxic emissions in case of fire, enhancing building safety.
This Category 6 cable delivers superior performance with its 4-pair, 23 AWG solid copper conductor design. The F/UTP (Foiled/Unshielded Twisted Pair) construction provides effective EMI protection while maintaining flexibility during installation. With a standard 305-meter reel length, this network cable supports extensive horizontal runs without intermediate splicing.
This network cable meets rigorous industry standards including ANSI/TIA-568.2-D and ISO/IEC 11801 Class E specifications. The Category 6 cable fully supports Power over Ethernet applications per IEEE 802.3bt (Type 4) requirements, delivering up to 90W of power to connected devices. Environmental compliance includes RoHS, China-RoHS, and UK-RoHS certifications.
The CS34Z1 F/UTP cable is designed for horizontal cabling in commercial buildings, educational facilities, healthcare environments, and industrial settings. Its LSZH jacket makes it particularly suitable for spaces with limited ventilation or strict fire safety regulations. The cable supports high-speed data transmission for Ethernet networks including 10BASE-T, 100BASE-TX, 1000BASE-T, and 10GBASE-T over limited distances.
This Category 6 cable excels in Power over Ethernet applications, efficiently delivering power to access points, security cameras, LED lighting systems, and other powered devices while maintaining data integrity. The robust construction ensures reliable performance in diverse environmental conditions from -20°C to +60°C.
| Parameter | Specification |
|---|---|
| Product Number | CS34Z1 |
| Cable Type | Category 6 F/UTP |
| Conductor Gauge | 23 AWG solid copper |
| Jacket Color | White |
| Standard Length | 305 m (1000 ft) |
| DC Resistance | ≤ 9.38 Ω/100 m |
| Dielectric Strength | 1500 VAC / 2500 VDC |
| Operating Temperature | -20°C to +60°C |
| Flame Rating | IEC 60332-1 |
Compared to standard Category 6 cables, the CS34Z1 offers enhanced safety with its LSZH jacket that reduces toxic fumes during combustion. The F/UTP construction provides superior EMI protection over UTP alternatives while maintaining easier termination than fully shielded counterparts. With support for high-power PoE applications (IEEE 802.3bt Type 4), this network cable future-proofs installations for evolving power requirements.
The 23 AWG solid copper conductors in this Category 6 cable ensure lower DC resistance compared to smaller gauge alternatives, resulting in better power transmission efficiency for PoE applications. The comprehensive standards compliance and CommScope's quality assurance make this F/UTP cable a reliable choice for critical infrastructure projects.
CommScope provides comprehensive technical support for the NETCONNECT product line, including installation guidance and system design assistance. The company's global distribution network ensures reliable availability, with most orders processed within standard lead times. For specific warranty information and regional service options, consult your local CommScope representative.
The CS34Z1 supports the standard 100-meter channel length for Ethernet applications, with a 305-meter reel length provided for installation flexibility and reduced splicing requirements.
Yes, proper grounding of the overall foil shield is essential for optimal performance and safety. Follow TIA/EIA-607-B standards for telecommunications grounding and bonding.
No, this cable is designed for indoor applications. The LSZH jacket provides enhanced fire safety but does not include UV protection or moisture resistance required for outdoor deployment.
The cable fully complies with IEEE 802.3bt (Type 4) recommendations, supporting up to 90W power delivery per port when installed according to relevant standards.
Consult local building codes and regulations. While the LSZH jacket reduces smoke and toxic emissions, plenum-rated cables may be required for certain air handling spaces.
|
