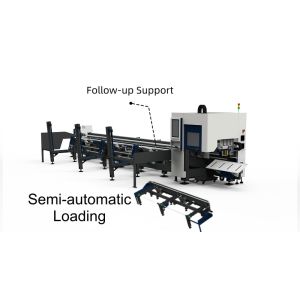

QH-GZ Zero-tailing Laser Tube Cutting Machine Semi-automatic Loading Follow-up Support

1. Semi-automatic Loading + Follow-up Support Boosts Efficiency: The semi-automatic loading system eliminates time-consuming manual alignment of long tubes (5500-6500mm), reducing batch setup time by 20%-30% compared to fully manual machines. Once loaded, the follow-up support dynamically stabilizes tubes during cutting—no need for frequent manual readjustment—allowing the 1500W-20KW laser to maintain consistent cutting speed, boosting daily throughput by 30%-40% for high-volume tube processing.
2. Dual Features Ensure Consistent High Precision: Semi-automatic loading provides repeatable auxiliary positioning, ensuring tubes are aligned accurately with the cutting path (avoiding manual positioning errors). Combined with the follow-up support’s anti-deflection function (critical for large-diameter tubes like Φ500mm or long 6500mm tubes), the machine retains ±0.03mm X/Y-axis precision across all cuts. This consistency reduces rework rates by 45%-55% vs. machines lacking either feature, where misalignment or vibration causes uneven slots/holes.
3. Zero-tailing Effectiveness Enhanced by Stable Loading & Support: The zero-tailing feature (≤5mm residual waste) relies on stable tube positioning during the final cut. The semi-automatic loading system ensures tubes are secured correctly upfront, while the follow-up support maintains stability until the last cut—preventing uneven residual lengths common with manual loading. For a workshop processing 300 6500mm-long stainless steel tubes (Φ300mm) monthly, this saves ~380kg of material annually, lowering raw material costs by 10%-14%.
4. User-Friendly Operation & Broad Compatibility: Semi-automatic loading reduces physical labor (no need to manually lift or align heavy 6500mm tubes alone), improving operator safety and reducing fatigue. Meanwhile, the follow-up support adapts seamlessly to round (Φ15-500mm) and square (15×15-500×500mm) tubes—eliminating the need for specialized loading/support tools for different tube types. This versatility maximizes equipment utility, making it suitable for small-batch custom tube parts and large-volume standard components alike.

​
