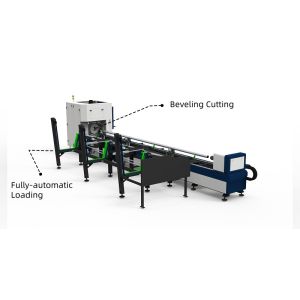

QH-GZ Zero-tailing Laser Tube Cutting Machine Beveling Cutting Fully-automatic Loading

QH-GZ Zero-tailing Laser Tube Cutting Machine Beveling Cutting Fully-automatic Loading

QH-GZ Zero-tailing Laser Tube Cutting Machine Beveling Cutting Fully-automatic Loading
QH-GZ Zero-tailing Laser Tube Cutting Machine Beveling Cutting Fully-automatic Loading
Categories Tube Metal Laser Cutting Machine
Brand Name: QIHAI
Model Number: QH-GZ
Certification: CE, ISO
Place of Origin: Foshan, Guangdong, China
MOQ: 1 Set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100 Set/month
Delivery Time: 50 days
Packaging Details: wood
Condition: New
Cnc or not: Yes
Graphic format supported: PLT,DXF,AI,BMP,DST
Cutting thickness: Depends,Materials,0-20mm,30mm acrylic,0-15mm
Cooling mode: Water Cooling
Warranty: 1 Year
After-sales service provided: Engineers available to service machinery overseas
Color: White,according to client,Required,Blue and white
Contact Now
Company Info.
Qihai Laser Tech. Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

QH-GZ Zero-tailing Laser Tube Cutting Machine Beveling Cutting Fully-automatic Loading

QH-GZ Zero-tailing Laser Tube Cutting Machine Beveling Cutting Fully-automatic Loading

Description​
The QH-GZ Zero-tailing Laser Tube Cutting Machine integrates Fully-automatic Loading and high-precision Beveling Cutting into a single solution, tailored for efficient, low-waste tube processing in automotive components, hydraulic systems, and structural engineering. Its fully-automatic loading system eliminates manual intervention: it automatically feeds, positions, and clamps tubes (round: Φ15-500mm; square: 15×15-500×500mm) with lengths of 5500-6500mm, reducing loading time by 60% vs. manual setups and ensuring consistent tube alignment—critical for uniform bevel quality.

Complementing the automated workflow, its beveling cutting function supports versatile profiles (V-type, U-type, Y-type, single/double-sided bevels) with adjustable angles (0°-45°, 0.1° increments) and maintains ±0.03mm X/Y-axis positioning/repositioning accuracy. This enables one-pass beveling and cutting, eliminating secondary grinding or milling. Paired with a 1500W-20KW laser power range, it handles diverse tube thicknesses, while the zero-tailing design limits residual waste to ≤5mm. Built with a 2T robust frame and dimensions of 9620×2950×2080mm, it balances industrial durability with workshop space adaptability, operating seamlessly in medium-to-large-scale production environments.
​
Quick Detail​
  • Dual Core Functions: Fully-automatic loading (auto feeds/clamps 5500-6500mm tubes; no manual handling); Beveling cutting (0°-45° angles, V/U/Y-type profiles, ±0.03mm precision).
  • Key Specs: Round Φ15-500mm/square 15×15-500×500mm cutting diameter; 1500W-20KW laser power; ≤5mm zero-tailing waste.
  • Fit: Automotive/hydraulic/structural industries; 2T weight + 9620×2950×2080mm size for industrial workshops.


Product Specifications
ModelQH-GZ
Cutting DiameterRound Tube: Φ15-500mm
Square Tube: 15*15mm to 500*500mm
Tube Length Capacity5500-6500mm
Machine Weight2T
Dimensions (L*W*H)9620*2950*2080mm
Laser Power Range1500W-20KW
Positioning Accuracy±0.03mm (X/Y-axis)
Repositioning Accuracy±0.03mm (X/Y-axis)
Compatible Tube TypesRound Tube / Square Tube


Advantage​
  1. Fully-automatic Loading Boosts Bevel Efficiency: The auto-loading system’s automatic tube feeding, positioning, and clamping cut setup time per batch by 40%-50% (e.g., loading 10×6500mm Φ300mm tubes takes 8-10 mins vs. 20+ mins manually). It also ensures consistent tube alignment, preventing bevel angle deviations caused by manual clamping errors—critical for maintaining ±0.03mm precision across high-volume runs.
  2. One-pass Beveling Reduces Post-processing: By combining auto-loading (fast, accurate tube setup) with beveling cutting (versatile profiles, 0°-45° adjustability), the machine completes tube cutting + beveling in one pass. This eliminates secondary beveling steps (e.g., manual grinding), reducing total processing time by 35%-45% and lowering labor costs associated with post-finishing.
  3. Precision Synergy Cuts Rework: The fully-automatic loading system’s repeatable positioning (±0.03mm alignment accuracy) pairs with the beveling function’s ±0.03mm axis precision, ensuring uniform bevel angles and edge quality across every tube. This reduces rework rates by 50%-60% vs. semi-automatic machines, where manual loading inconsistencies lead to bevel mismatches in welding.
  4. Waste Reduction via Auto-loading + Zero-tailing: The fully-automatic loading system precisely controls tube feed length, maximizing the use of 5500-6500mm tubes and avoiding material waste from manual overfeeding. When combined with the zero-tailing design (≤5mm residual), it cuts material scrap rates by 12%-18%—a significant saving for high-value metals like stainless steel tubes.
