| Categories | UV Laser Chiller |
|---|---|
| Brand Name: | TEYU |
| Model Number: | RMUP-500 |
| Certification: | CE, REACH and RoHS |
| Place of Origin: | China |
| MOQ: | Mail Inquiry |
| Price: | Mail Inquiry |
| Packaging Details: | Mail Inquiry |
| Delivery Time: | Mail Inquiry |
| Supply Ability: | Mail Inquiry |
| Model: | RMUP-500 |
| Machine Size: | 49 X 48 X 26cm (L X W X H) 6U / 7U |
| Warranty: | 2 years |
| Standard: | CE, REACH and RoHS |
| Company Info. |
| Guangzhou Hopoke CNC Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

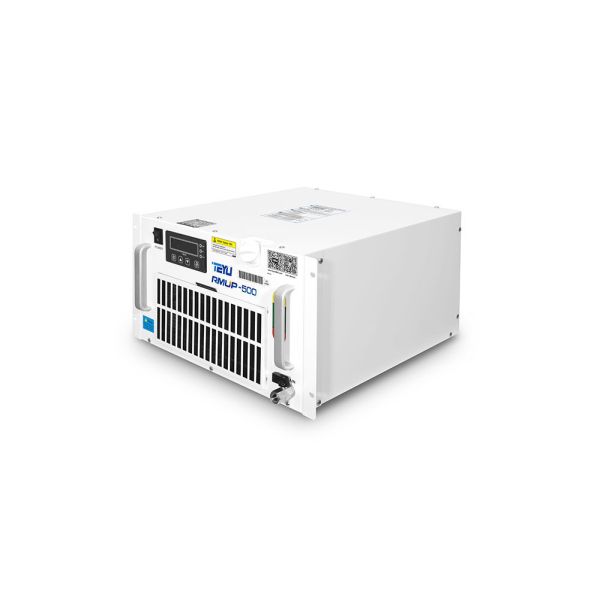

TEYU 6U/7U air-cooled rack chiller RMUP-500 features a 6U/7U rack mount design and is perfect for 10W-20W UV laser, ultrafast laser, semiconductor and laboratory instrument cooling applications. Mountable in a 6U/7U rack, this industrial water cooling system allows the stacking of related devices, indicating a high level of flexibility and mobility. It delivers extremely precise cooling of ±0.1°C stability with PID control technology.
The refrigerating power of rack mount water chiller RMUP-500 can reach up to 1240W. A water level check is installed in the front with thoughtful indications. Water temperature can be set between 5°C and 35°C with constant temperature mode or intelligent temperature control mode for selection.
Intelligent functions
* Low tank water level detecting
* Low water flow rate detecting
* Over water temperature detecting
* Heating of the coolant water at low ambient temperature
Self-check display
* 12 types of alarm codes
Easy routine maintenance
* Toolless maintenance of dustproof filter screen
* Quick-replaceable optional water filter
Communication function
* Equipped with RS485 Modbus RTU protocol
| Model | RMUP-500AI | RMUP-500BI | RMUP-500ANP | RMUP-500BNP |
| Voltage | AC 1P 220-240V | AC 1P 220-240V | AC 1P 220-240V | AC 1P 220-240V |
| Frequency | 50Hz | 60Hz | 50Hz | 60Hz |
| Current | 0.6~5.2A | 0.6~5.2A | 0.91~5.41A | 0.91~5.41A |
| Max. power consumption | 0.98kW | 1kW | 1.99kW | 2.89kW |
| Compressor power | 0.32kW | 0.35kW | 1.73kW | 2.09kW |
| 0.44HP | 0.46HP | 2.32HP | 2.8HP | |
| Nominal cooling capacity | 2217Btu/h | 4229Btu/h | ||
| 0.65kW | 1.24kW | |||
| 558Kcal/h | 1064Kcal/h | |||
| Refrigerant | R-134a | R-407c | ||
| Precision | ±0.1℃ | |||
| Reducer | Capillary | |||
| Tank capacity | 5.5L | 7L | ||
| Inlet and outlet | Rp1/2” | |||
| Pump power | 0.09kW | 0.2kW | ||
| Max. pump pressure | 2.5bar | 4.0bar | ||
| Max. pump flow | 15L/min | 38L/min | ||
| N.W | 21Kg | 35Kg | ||
| G.W | 24Kg | 39Kg | ||
| Dimension | 49X48X26cm (L X W X H) 6U | 67x48x33cm (L X W X H) 7U | ||
| Package dimension | 59X53X34cm (L X W X H) | 74x57x50cm (L X W X H) | ||
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
|
