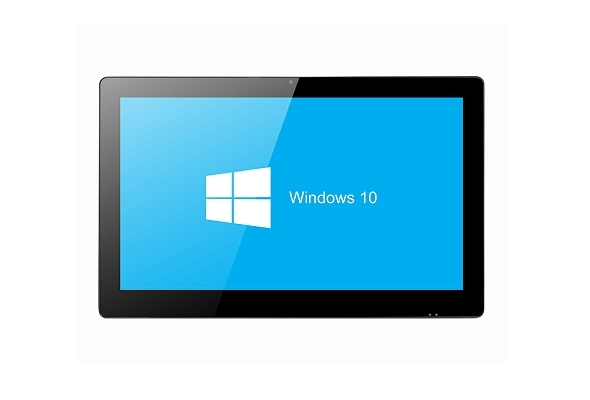

15.6" All-In-One Computers Wall Mounted Panel Pc Industrial Control Panel Touchscreen All-In-One Computers

Categories All-in-One Computers
Brand Name: LC Rising-sun
Model Number: 15.6Inch
Place Of Origin: China
MOQ: 1
Response time: 15ms
Touch panel: Capacitive
Screen Size: 15.6 Inch
Wireless Network: WIFI Optional
Resolution: 1920x1080
Brightness: 250 Cd/m2
View angle: 85°/85°/85°/85° (R/L/U/D)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

15.6" All-In-One Computers Wall Mounted Panel Pc Industrial Control Panel Touchscreen All-In-One Computers

15.6 inch Wall mounted panel PC Industrial Control Panel Touchscreen All-in-One Computers

产品描述:

这款小巧的一体机配备 15.6 英寸触摸屏,设计紧凑,性能强大.1920x1080 分辨率确保图像清晰锐利,电容式触摸屏则带来流畅直观的用户体验.

凭借 85°/85°/85°/85°(右/左/上/下)的宽视角,用户可从任何角度欣赏鲜艳的色彩和清晰锐利的细节.无论您是在观看电影,处理文档还是畅玩游戏,这款一体机都能为您带来沉浸式的观看体验.

15.6 英寸的屏幕尺寸在便携性和易用性之间实现了完美平衡,是工作和娱乐的理想之选.这款小巧的一体机尺寸使其能够无缝融入任何空间,无论是家庭办公室,宿舍还是客厅.

这款一体机配备电容式触控面板,提供灵敏的触控控制,提升工作效率和易用性.浏览应用程序,网站和文件流畅便捷,带来现代便捷的计算体验.

除了令人印象深刻的显示屏和触控功能外,这款一体机还提供可选的 WIFI 连接,实现无缝互联网连接.得益于无线网络支持,您可以轻松保持连接,播放流媒体内容和下载文件.


技术参数:

触摸屏电容式
响应时间15毫秒
解决1920x1080
屏幕尺寸15.6英寸
亮度250 烛光/平方米
无线网络WIFI 可选
视角85°/85°/85°/85° (右/左/上/下)

LCD panel( IPS screen)

Bestview 15.6 inch wall mounted touch screen computer

PC

CPU

Inter Celeron J1900, quad core, 2.0Ghz, fanless( Core i3, Core i5 optional)

Memory

2GB DDR3, ( Max. 8G)

Hard Drive Capacity

32G SSD or 320G HDD


Hard Drive Optional


SSD: 32GB,64GB,128GB,256GB

HDD: 320GB,500GB,1TB

Network

1×Realtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI optional

I/O Interface

1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC

Opetation System

Preinstall test version Windows 7/8/10,Linux

Image Format

Support BMP,JPEG,PNG,GIF

LCD panel

Panel size

15.6Inch

Resolution

1920x1080

Brightness (cd/m²)

250 cd/m2

Response time

15ms

Contrast ratio

800:1

View angle

85°/85°/85°/85° (R/L/U/D)

Touch panel

Touch Type

10 points projective Capacitive touch optional

Touch Interface

USB

Response time

<8ms

Luminousness

75-85%

Power Supply

External Power Supply

AC 100 - 240V

Working voltage

DC 12V

Power consumption

≤18W

Operating Environment

Temperature range

operating: -10 to 60°C, storage :-20 to 70°C

Relative humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Packing Details

Accessories

Power adapter, Wifi antenna

Other


Mounting (options)


1 provide wall brackets for wall-mounting, VESA 100×100mm

2 provide Floor standing to support the PC

Certification

CE, FCC,ROHS

Warranty

1 year warranty

The 15.6-inch Wall mount panel PC (Wall mount panel PC) has a wide range of application areas and features, mainly including the following:


Application Areas:


Industrial Automation: for production line monitoring, equipment control, data acquisition and processing, etc.

Logistics and Fleet: For inventory tracking, order processing and logistics management in warehouse management systems.

Retail: POS systems, digital billboards, self-service terminals, etc.

Healthcare: for medical control, medical image display and hospital information management systems.

Transport: Intelligent traffic system, station information display, truck freight, etc.

Military and aerospace: for flight simulators, military command and control systems and aerospace equipment control.

Education: digital classrooms, teaching interactive equipment and school information management systems.

Financial sector: ATM machines, self-service terminals and bank information display systems.


Features:


Wall-mounted design: suitable for occasions that need to be fixed on the wall or other surfaces, space-saving and easy to install.

15.6-inch touch screen: Provides interactive operation and user interface.

High-performance processor: Typically equipped with a high-performance processor capable of handling multitasking and complex applications.

Waterproof: Designed to be capable, waterproof and shock resistant for groundwater environments.

Reliability: With stable performance and reliable operation, suitable for long time operation and industrial applications.

Multiple Interfaces: Usually equipped with multiple interfaces such as USB, RS232, LAN, etc. for easy connection to other devices and external sensors.

Low Power Consumption: Designed with energy-saving and low power consumption, it helps to reduce the cost of power consumption.

The 15.6-inch wall-mounted panel PCs provide reliable solutions in industrial automation, retail, healthcare, and other fields, meeting the needs of various industries for efficiency, stability, and ease of operation.


For more detailed and accurate information, please contact us for a copy of our specifications.
