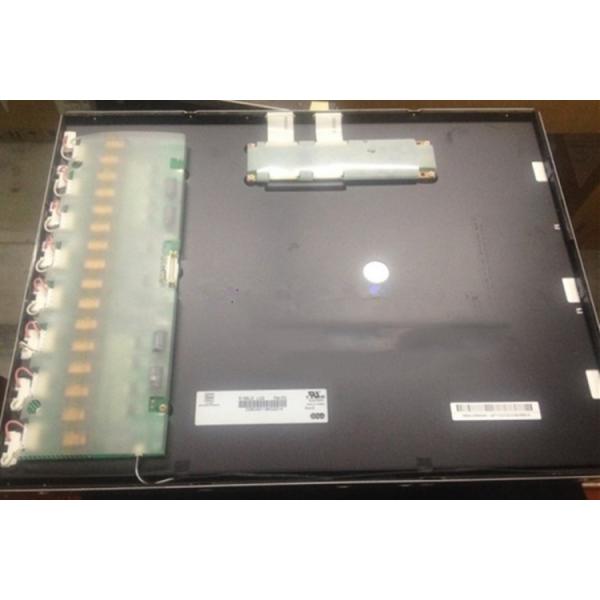

R196U2-L02 Chimei Innolux 19.6" 1600(RGB)×1200, 500 cd/m² INDUSTRIAL LCD DISPLAY

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 398.4(W)×298.8(H) mm, outline size of 427(W)×322.4(H)×38.3(D) mm, viewing area size of 402.4(W)×302.8(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.94/1.99Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, R196U2-L02 can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥20) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 17 pcs CCFL as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, With Inverter. R196U2-L02 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 12.0V (Typ.)

Sapientia Display Co.,LIMITED is a professional leading company for LCD panels in China and Hong Kong China,established in year 2015, strong at collecting OEM excess stock from world famous big OEM factories, with experienced sourcing and sales and QC team, we can offer most competitive price with qualified panels.

Main products widely used for industrial facilities display, medical machine display, automotive display system, advertisement display and other portable display. We have our own warehouses which located in HK, SHENZHEN, HUIZHOU and HANGZHOU cities, with huge inventories of world famous brands LCD panels such as NEC, AUO, SHARP, LG, TIANMA, HITACHI, MITSUBISHI, TOSHIBA, SAMSUNG.

Panel size from 0.96 inch to 55inch, most panels packed in new original, factory box packing, panels been well kept in good status in our professional warehouses, engineering teams can support professional techique supports for lighting on panels, offering suitable cables/inverters/driving boards and other relative accessories.

Sapientia display will be your best choice for LCD panels, contact us for WIN-WIN business!
