| Categories | Through Hole Slip Ring |
|---|---|
| Brand Name: | JINPAT |
| Model Number: | LPT038 |
| Certification: | ISO/CE/RoHS/UL |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | Negotiable |
| Payment Terms: | TT/CC/Paypal |
| Supply Ability: | 1000 units/week |
| Delivery Time: | 2 weeks ARO |
| Packaging Details: | Standard/On Request |
| Inner Diameter: | Φ38.1mm |
| Working Speed: | 0~300rp |
| Contact Material: | Precious Metal |
| Operating Speed: | 300 rpm |
| Housing Material: | Aluminum Alloy |
| Rating Voltage: | 240VAC/ DC |
| Insulation Resistance: | ≥500MΩ@500VDC |
| Working Temperature: | -20°C~+60° |
| Company Info. |
| JINPAT Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

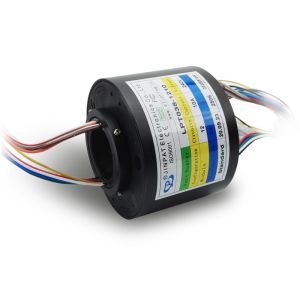

Precious Metal 300rp Through Hole Slip Ring Inner Diameter 38.1mm
The LPT038 provides an economical, readily available solution when a compact through bore configuration is required.
This unit provides a 38.1mm through bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications. The 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 6CKT | Working Speed | 0~300rp |
| Detail | 6X5A | Inner Diameter | Φ38.1mm | |
| Rating Voltage | 240VAC/ DC | Contact Material | Precious Metal | |
| Dielectric Strength | 1000VAC@50Hz | Housing Material | Aluminum Alloy | |
| Insulation Resistance | ≥500MΩ@500VDC | Lead Wire Length | Stator:300mm Rotor:300mm | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+60° | Other | / | |
| Working Humidity | ≤60%RH | |||

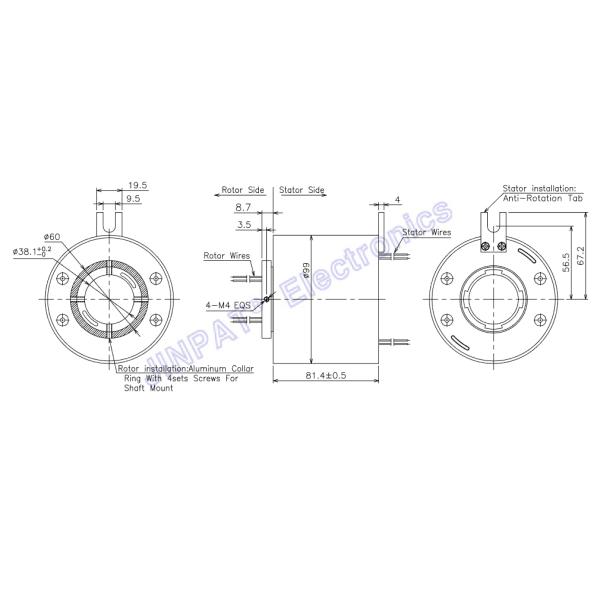

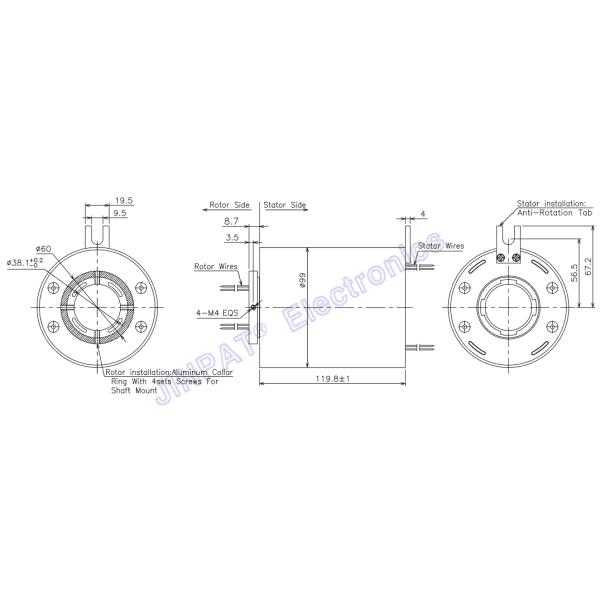

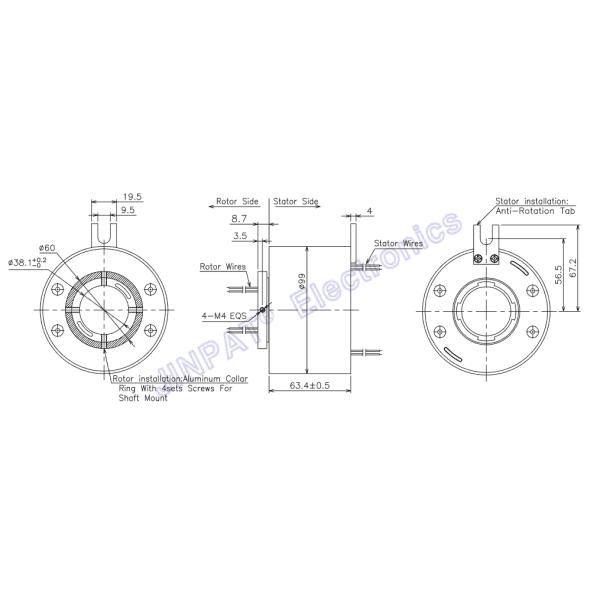

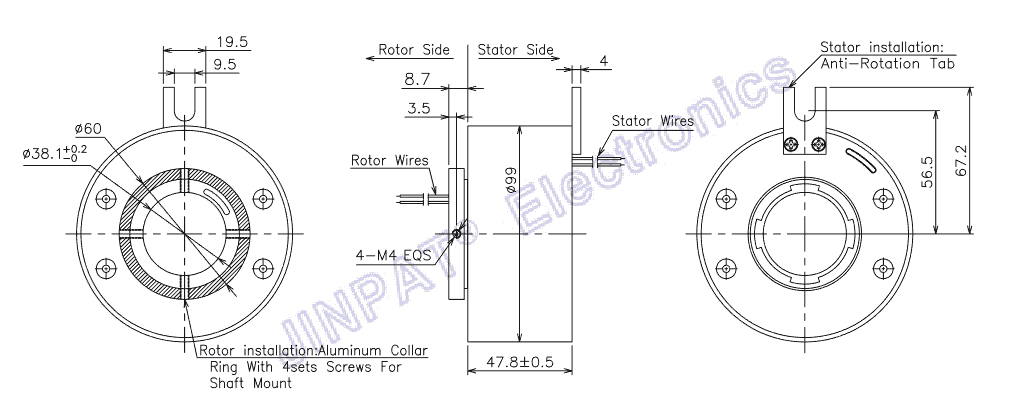

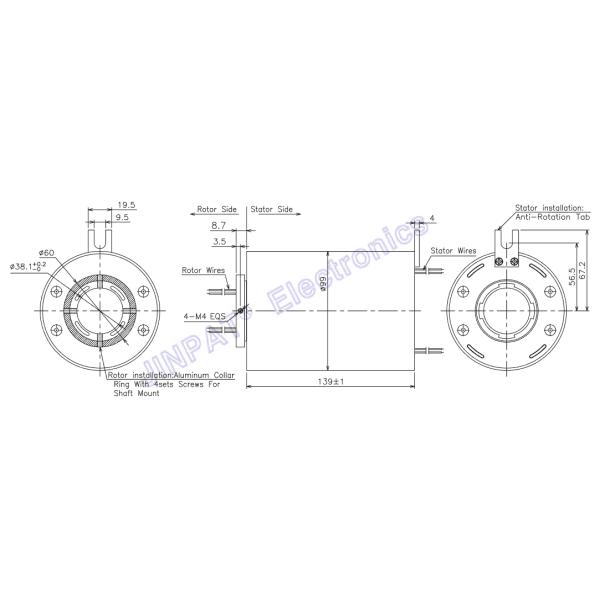

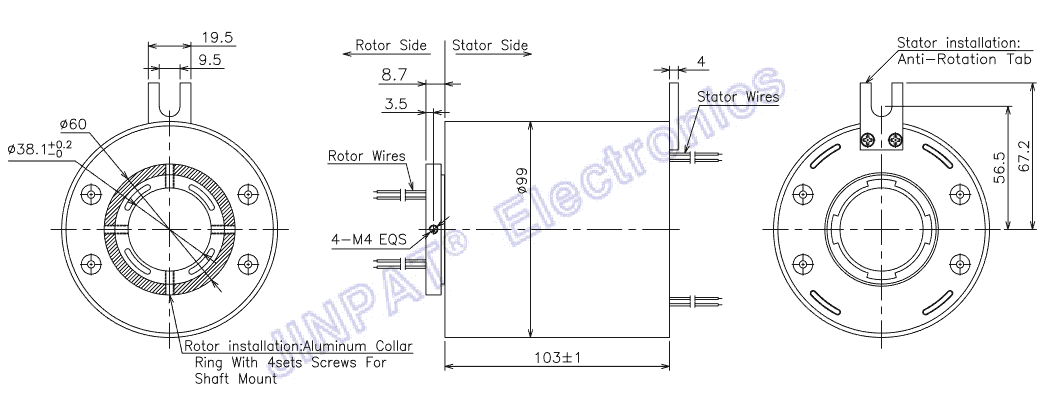

Outline Drawing
Outline Drawing
Outline Drawing
Outline Drawing
Outline Drawing
Outline Drawing
Outline Drawing
Outline Drawing
Outline Drawing
Outline Drawing
Outline Drawing
Outline Drawing
|
