Diameter 38.1mm Rotary Joint Slip Ring 6 Circuit 15A 240VAC

Diameter 38.1mm Rotary Joint Slip Ring 6 Circuit 15A 240VAC

Diameter 38.1mm Rotary Joint Slip Ring 6 Circuit 15A 240VAC
Diameter 38.1mm Rotary Joint Slip Ring 6 Circuit 15A 240VAC
Categories Through Hole Slip Ring
Brand Name: JINPAT
Model Number: LPT038-0615
Certification: ISO/CE/RoHS/UL
Place of Origin: China
MOQ: 10pcs
Price: Negotiable
Payment Terms: TT/CC/Paypal
Supply Ability: 100K units/week
Delivery Time: 2 weeks ARO
Packaging Details: Standard/On Request
Operating Speed: 0-300rpm
Circuits: 6circuits
Working Temperature: -20~ +60
Product name: Rotary Joint Slip Ring
Diameter: 38.1mm
Application: Construction Machinery
Working Humidity: 60%RH or higher
Insulation Resistance: 500MΩ/ 500VDC
Contact Now
Company Info.
JINPAT Electronics Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

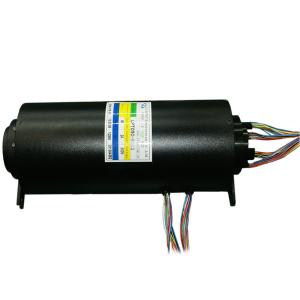

Diameter 38.1mm Rotary Joint Slip Ring 6 Circuit 15A 240VAC

The LPT038-0615 aims at special application requirements of wind power generation system, JINPAT designed for wind power equipment manufacturers a variety of wind power slip ring, which is widely used in power generation 600KW - 5MW wind power system.

Standard product power circuits,Gigabit Ethernet signal or other signals can be custom.Please leave a message tell us your special needs!


Features

  • Which has advanced production equipment and a variety of performance testing system.
  • Good resistance for low temperature, wind resistance, corrosion resistance, impact resistance, anti
  • vibration and other characteristics.
  • The service life would be up to 20 years or more than hundred million rounds.
  • Options include cable length, encoder type, and high current (300A) and so on.
  • Please contact us to recommend you suitable product and customization design

Specification
Circuits6circuits
Operating Speed0-300rpm
Working Temperature-20~ +60
Working Humidity60%RH or higher
Voltage Rating240VAC/DC or higher
Current Rating15A per circuit
Dielectric Strength≥1000V@50Hz between each circuit
Insulation Resistance500MΩ/ 500VDC
Via diameter38.1mm
Contact MaterialPrecious metal
Housing MaterialAluminum alloy
ProtectionIP44 or higher

Product outline drawing


Product Image
