| Categories | HMI Control Panel |
|---|---|
| Brand Name: | Coolmay |
| Model Number: | TK6100FH |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | usd94-usd1138 per piece |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs/month |
| Delivery Time: | 5-7 working days |
| Packaging Details: | box 36.5*26*10cm |
| Product: | HMI |
| Display Size: | 10 inch |
| Cutout Size: | 262*180mm |
| Resolution: | 1024*600 |
| ROM: | NOR Flash 16MB |
| RAM: | 64MB |
| CPU: | 32bit CPU 408MHz |
| Protocol: | Support MODBUS, free port and common PLC communication Protocol |
| Company Info. |
| Shenzhen Coolmay Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

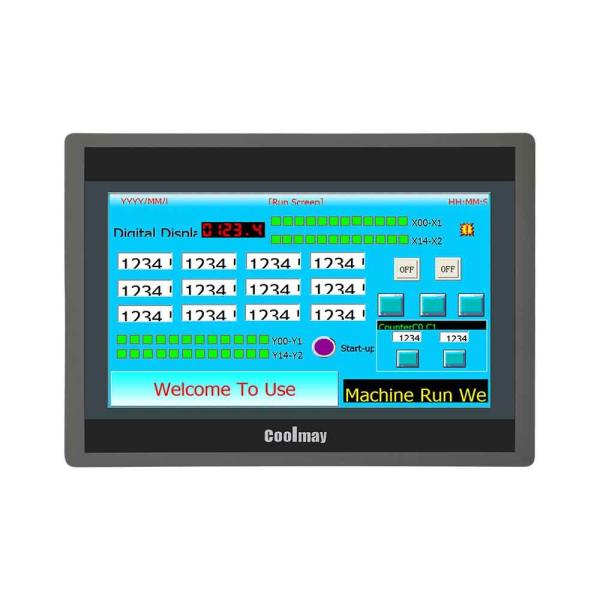

10 inch HD 1024X600 Pixels HMI Control Panel for plc vfd controller monitoring
Model:TK6100FH
Protection class: IP65, Waterproof
Com Port: RS232, RS485
Protocol: Support MODBUS, free port and common PLC communication Protocol
Downloading Port: USB Type C
Programming Software: mView

TK series HMI applied Coolmay software “mView”. “mView” is a set of
stable and reliable human machine interface programming software
for industrial occasions. Independent and original system design,
running speed increased by 200%, memory usage reduced by 50%.
It supports many communication protocols and can communicate with
more than 200 PLC and controllers on the market.
Com Port Definition :

Installation :

More Size In stock!
| Specification | TK6037FH | TK6043FH | TK6050FH | TK6070FH | TK6100FH |
| Dimension | 88x88x25mm | 134x102x36mm | 151x96x36mm | 200x146x36mm | 275*194*36mm |
| Cutout Size | 72x72mm | 120x94mm | 143x86mm | 192x138mm | 262x180mm |
| Display | 3.5 inch | 4.3 inch | 5 inch | 7 inch | 10 inch |
| Display size | 73x56mm | 97x56mm | 108x65mm | 154x87mm | 222x125mm |
| Resolution | 320*240 | 480*272 | 800*480 | 800*480 | 1024*600 |
| Touch type | 4-wire resistive panel  | ||||
| RAM | 64MB | ||||
| CPU | 32bit CPU 408MHz | ||||
| Operating System | No operating system | ||||
| USB | Type C, for downloading program | ||||
| COM port | 1 RS232 and 1 RS485 | ||||
| Optional | NULL | 1 WIFI (occupy default RS485 port) | |||
| Protocol | Support MODBUS, free port and common PLC communication Protocol | ||||
| Calendar | Yes | ||||
| Input Voltage | 12-24VDC±10%<150mA @ 24VDC | ||||
| Protection Class | IP65 (front panel) | ||||
| Temperature | Ambient environment: 0~50℃ | Storage environment: -20~70℃ | ||||
| Humidity | 20%~90% RH | ||||
| Software | mView Coolmay programming software | ||||

                             |
