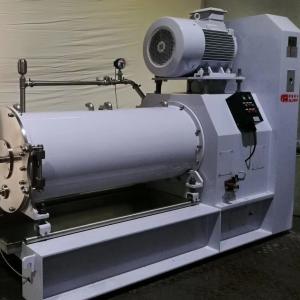

Wearable Titanium Dioxide Grinding Horizontal Bead Mill SUS304 Disc Grinding Machine

Wearable Titanium Dioxide Grinding Horizontal Bead Mill SUS304 Disc Grinding Machine

The Advantages:

L Great flow rate and super fine discharging

High production capacity and high efficiency

Wear-resistant grinding chamber

Double mechanical sealing with research and development indepent technology

High cooling efficiency with multiple cooling

Long time life and low maintenance.

With ISO9001 certification and more than 11 patents of sand mill

The working principle:

The working principle is to use the material pump to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber, and the material and the grinding medium in the chamber are stirred by the high-speed rotating disperser, so that the solid particles in the material and the grinding media produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing .After grinding and dispersing, the material passes through a dynamic separator to separate the grinding medium and flows out of the discharge pipe.

The main techinical data:

1. Non explosion proof motor: 55kW 380V 50HZ
2. Effective volume of grinding chamber: 250L
3. Water pressure(Mpa): 0.3
4. Cooling water consumption: 2.5 -3m³/h
5. Dimension (L*W*H): 2100*900*2000mm
6. Weight: 3000Kg

The main Configuration instructions:

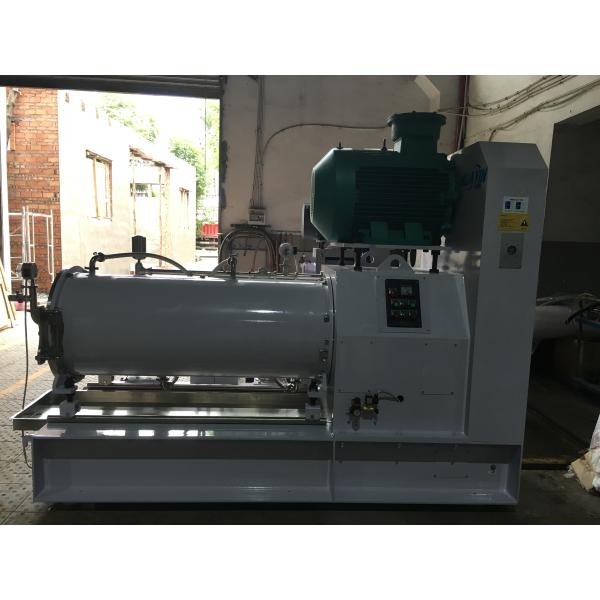

The production show:

The mature production and model of SP250, and have plentiful experiences in Chemical Fibre Titanium Dioxide.

The detailed parts:

Allwin research and development the double mechanical seal indepently.

• The Packing and delivery: Wooden boxes and FUL or LCL container

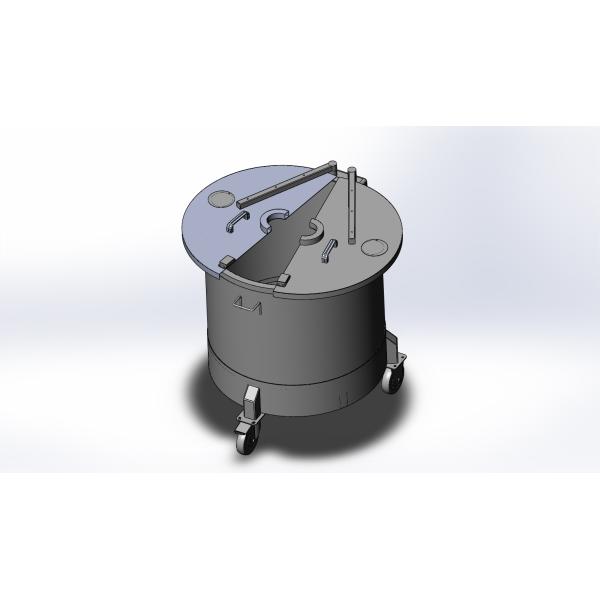

The related products:(Dispersing machine and Movable Tank)

The efficiency of griding will be improved after enough pre-dispersing, So the dispersing machine also is very important.

Allwin Machine & Equipment Co., Ltd. is a Chinese national high-tech enterprise and specialized manufacturer of wet grinding, dispersing equipment, and production lines. Established in 1993 in Chongqing, China, we have been certified with ISO9001:2015.

With 30 years of industry experience, Allwin is committed to helping providing customers with full-process services from construction planning, product supply, to providing complete production lines, personnel training, and lifelong maintenance services.

Allwin specializes in the research and production of bead mills, mixers, dissolvers, customized production lines, tanks, and zirconia beads, with 30 years of industry experience and proficient in wet grinding core technology. We have sold more than 10,000 devices, serving 180 cities in China and exporting products to multiple countries.

Our customer base mainly covers Battery, Ceramics, Nanomaterials, Coatings, MLCC/LTCC, Pharmaceuticals, Food, Titanium dioxide, Personal Care, Papermaking, Inks, Pesticides, Graphene, Metallic and Non-metallic Minerals and more.

We have a professional R&D team, After-Sales Service team, Process Production department, run a Product Lifecycle Management (PLM) system. Our equipment is excellent, from materials to parts are all produced by CNC. The quality characteristics of our products are stable, reliable, interchangeable well, Precise, low noise, and long life. As a manufacturer, we comply with the ISO9001 standard strictly.

Allwin workshop:

Allwin Service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

R & D Team：

1. Allwin has been authorized with more than 11 patents and established cooperation with universities. Allwin has more than 12 engineers for Design and optimizing.
2. Whole production solution: Allwin can offer the Whole production solution for you, from Dispersing to grinding, from accessories to grinding media.

Sales Team:

      Allwin have professional sales team for you, before order we will recommand the suitable mills for your according to your requiriments and materials characteristics.

Quality Team:

       Allwin have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Production Team:

•      Advanced machining center and skilled operators.
