| Categories | Aluminium Checker Plate |
|---|---|
| Brand Name: | RUIYI |
| Model Number: | 1050 1060 1100 3003 3105 5052 |
| Certification: | ISO9001, ASTM, JIS, GB, EN, ASTM |
| Place of Origin: | China |
| MOQ: | 3 Ton |
| Price: | US$2100-US$2900 per ton |
| Supply Ability: | 1000 ton per Month |
| Delivery Time: | 25 days |
| Packaging Details: | standard wood pallet |
| Product name: | aluminium checker plate |
| Alloy Name: | A1050 1060 1100 3003 3105 5052 |
| Thickness: | 0.2mm -10.0mm |
| Width: | 200mm- 2000mm or customize |
| Length: | 1000mm - 6000mm or customize |
| Type: | sheet or coil |
| Finish: | Bright, Brite, Mill, Embossed |
| Application: | Ramps, Trailers, kick plates, stairways |

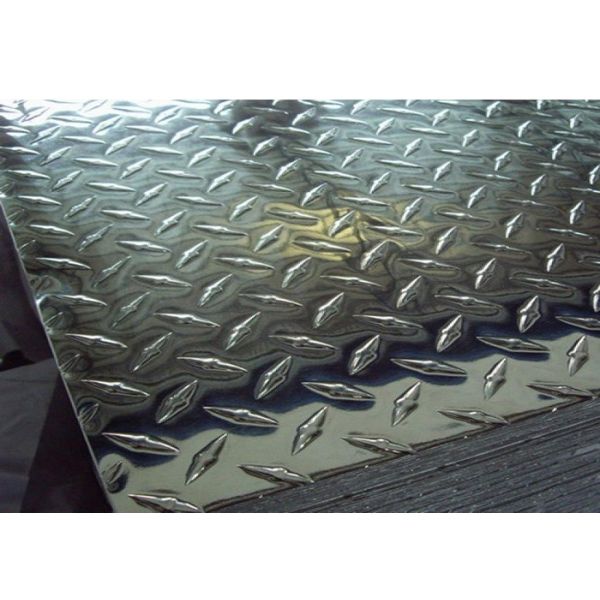

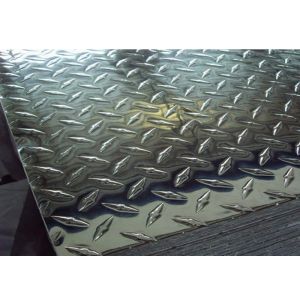

ASTM 786 A1050 1060 1100 3003 3105 5052 Aluminium Checker Plate | Aluminium Tread Plate 5 Bar
Aluminum checker plate is also called treadplates,because of its raised patterns.
Tread plate—also known as floor plate, diamond plate, or diamond tread plate—provides a durable, anti-slip surface for dock surfaces, vehicle running boards, and more. Because it is highly resistant to weathering, corrosion, and chemicals, tread plate requires no maintenance or surface treatments.
Industrial Metal Supply offers steel tread plate that meets ASTM A786 standards, and aluminum tread plate in 3003 and 6061 alloys. Four styles are available.
5-Bar Tread Plate is defined by its unique pattern, with small, individual blocks of five parallel bars oriented perpendicularly to their neighboring blocks.
Tread Brite Tread Plate is the most common type of aluminum tread plate, used for a wide variety of applications.
Embossed Firetruck-Quality (FTQ) Tread Plate is the same as Tread Brite in all aspects, with the exception of a slightly modified pattern that provides even better grip.
Mill Finish Tread Plate has a matte-finish diamond pattern, and is used primarily in structural applications that do not require bending.
| Chemical Analysis of aluminum alloy Plate | ||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | Remains |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | - | - | - | - | - | Remains |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | - | - | Remains |
| 1100 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | Remains |
| 1200 | 1 | 1 | 0.05 | 0.05 | - | - | - | 0.1 | 0.05 | Remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | Remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | Remains |
| 5042 | 0.2 | 0.35 | 0.15 | 0.2--.5 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | Remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | Remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | - | Remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | Remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | - | Remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45 | 0.1 | - | 0.1 | - | Remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | Remains |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | Remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | Remains |
|
