| Categories | Aluminium Checker Plate |
|---|---|
| Brand Name: | RUIYI |
| Model Number: | 3003 3105 5052 |
| Certification: | ISO9001, ASTM, JIS, GB, EN, ASTM |
| Place of Origin: | China |
| MOQ: | 3 Ton |
| Price: | US$2100-US$2900 per ton |
| Supply Ability: | 1000 ton per Month |
| Delivery Time: | 25 days |
| Packaging Details: | standard wood pallet |
| Product name: | mirror finish aluminum sheet |
| Alloy Name: | 3003 3105 5052 |
| Thickness: | 0.2mm -10.0mm |
| Width: | 200mm- 2000mm or customize |
| Length: | 1000mm - 6000mm or customize |
| Type: | plate |
| Finish: | Bright, Brite, Mill |
| Application: | Ramps, Trailers, decorative floor, stairways |

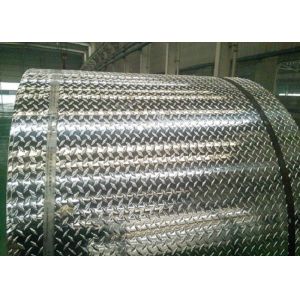

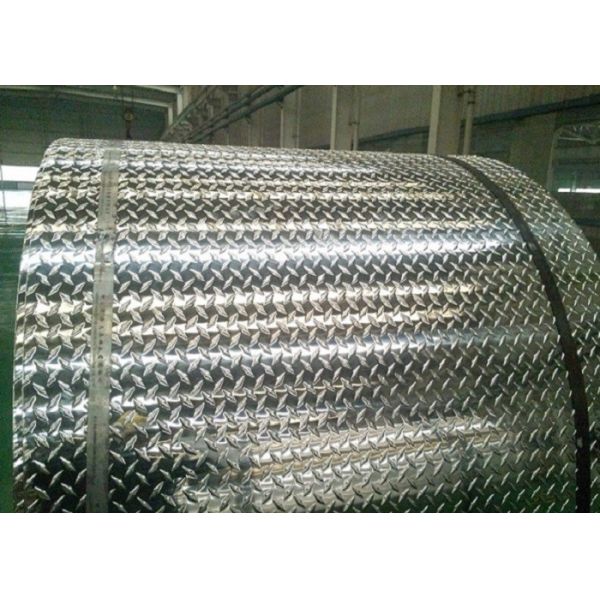

Mirror finish aluminum sheet checker plate 5mm 6mm 7mm Corrosion Resistance Flooring Sheet Aluminium Checker Plate
Aluminum checker plate is also called treadplates,because of its raised patterns.
Tread plate—also known as floor plate, diamond plate, or diamond tread plate—provides a durable, anti-slip surface for dock surfaces, vehicle running boards, and more. Because it is highly resistant to weathering, corrosion, and chemicals, tread plate requires no maintenance or surface treatments.
| Product Specification |
| Grace | 1000 Series:1050 1060 1070 1100 1200 1235 etc | pure aluminum |
| 2000 Series: 2011, 2014, 2017, 2024 etc | Aluminum copper alloy | |
| 3000 Series: 3003 3004 3005 3104 3105 3A21 etc | Aluminum manganese Alloy | |
| 4000 Series: 4A01 4045, 4343 etc | Aluminum silicon alloy | |
| 5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc | Aluminum magnesium alloy | |
| 6000 Series: 6061 6063 6082 6A02 etc | Aluminum magnesium silicon alloy | |
| 7000 Series: 7075, 7005.7050,ect | Aluminum magnesium silicon copper alloy | |
| 8000 Series: 8006 8011 8079 etc | Aluminum foil alloy | |
| Thickness | 0.20-350mm | |
| Width | 2400mm max | |
| Length | 12000max | |
| Grade | 1000,3000,4000,5000,6000,7000,8000series | |
| Temper | ||
| F | processing state | |
| H | strain hardening state | |
| O | annealing | |
| T | heat treatment state | |
| H112 | pure state of strain hardening, adjustment has been made to degree of strain hardening and annealing | |
| T4 | solid solution treatment and natural efficiency to achieve sufficient stability condition | |
| T5 | artificial aging condition of the reentry after high temperature thermal cooling | |
| T6 | artificial aging state after solid solution treatment | |
| Surface | 1)Brushed aluminum 2)Printed aluminum 3)Embossed aluminum 4)Color coated aluminum 5)Anodized aluminum 6)Powder coated aluminum | |
| Product Manufacturing | ||
| Ingot + Master Alloy → Melting → Holding Fumace → Continuous Casting → Cold Rolling(Mediate Annealing) → Horizontal shear → Annealing → Aluminum Sheet | ||
| Chemical Analysis of aluminum alloy Plate | ||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | Remains |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | - | - | - | - | - | Remains |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | - | - | Remains |
| 1100 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | Remains |
| 1200 | 1 | 1 | 0.05 | 0.05 | - | - | - | 0.1 | 0.05 | Remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | Remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | Remains |
| 5042 | 0.2 | 0.35 | 0.15 | 0.2--.5 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | Remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | Remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | - | Remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | Remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | - | Remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45 | 0.1 | - | 0.1 | - | Remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | Remains |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | Remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | Remains |
|
