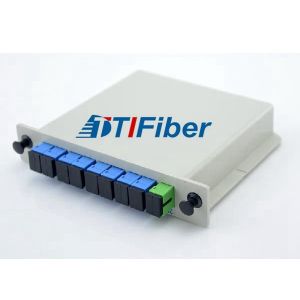

1X8/ 1x16 Fiber Optic Splitter With SC/UPC Connector / PLC Splitter Module ( Insert Type )

Categories	Fiber Optic Splitter
Brand Name:	TTI Fiber
Model Number:	1x8 Splitter module
Certification:	ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates
Place of Origin:	China
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T, , paypal
Supply Ability:	5000pcs/day
Delivery Time:	3-5working days
Packaging Details:	in pp bag
connector:	SC/UPC
Wavelength:	1310/1550nm
Cable:	0.9mm
Length:	0.5m,1m or as customzied

Contact Now

Add to Cart

Company Info.

TTI Fiber Communication Tech. Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

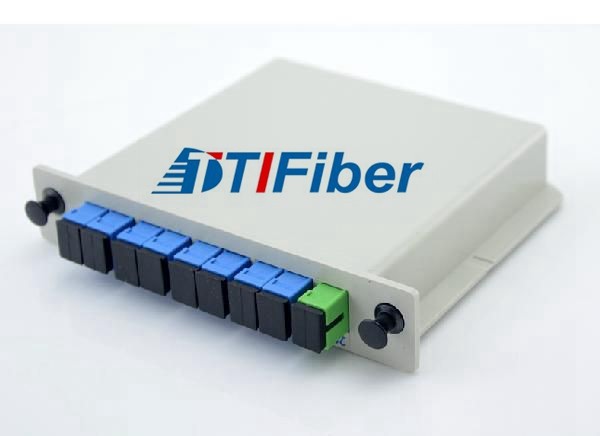

1X8/ 1x16 PLC Splitter Module (Insert type) with SC/UPC connector

Feature :

Low Excess loss

Various Coupling Ratio

Environment stable

Single mode and multi mode available

Application:

Long-haul Telecommunications

CATV Systems & Fiber Optic Sensors

Fiber Optic communication system

Local Area Network

Specification:

Parameters	1×2	1×4	1×8	1×16	1×32
Operating Wavelength (nm)	1310/1490/1550
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	17/17.4
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5
Temperature Stability (-40~85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Device Dimension (mm)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4
Module Dimension (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18
Mini-Module Dimension (mm)	50×7×4	50×7×4	50×7×4	60×12×4	80×20×6

Packing and Shipping :
