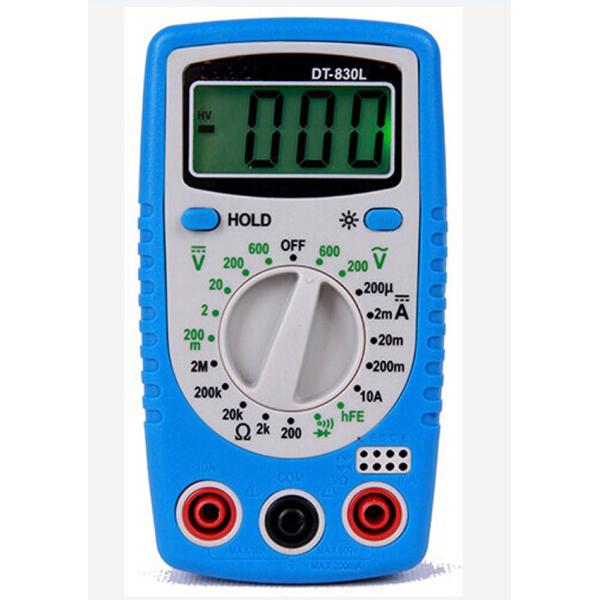

LCD DMM Digital Multimeter Voltmeter Ammeter Avometer Multifunction Electrical Tester
Quik Details :
Place of Origin : Shenzhen ,China
Model: DT830L
Brand Name : HD , OUMIAN
Max Display : 1999
Input impedance :1MΩ
Measuring Current Range : 200uA-10A
Measuring Voltage Range : 200mV-600V
Measuring Resistance Range : 200Ω-2MΩ
Weight : 90g
MOQ : 500PCS
Payment : T / T , Paypal , West Union
Specification :
Basic function | Measurement range | Basic accuracy |
DC voltage | 200mV/2V/20V/600V | ±(0.5%+3) |
AC voltage | 200V/600V | ±(0.8%+3) |
DC current | 200uA/2mA/200mA/10A | ±(1.0%+3) |
hFE test | V | |
Diode test | V | |
Continuity buzzer | V | |
Low power display | V | |
Function protection | V | |
Backlight | V | |
Max display | 1999 | |
General Characteristic :
Power supply : 9V(6F 22)
Color : Ron-Gray + Yellow
Weight : 90g(including batteries)
Dimension : 102*58*18mm
Accessories : Test lead ,manual ,battery
Standard inner package : Color box
|
