| Categories | Laser Chuck |
|---|---|
| Model Number: | G400C-170 |
| Brand Name: | Lingman |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 |
| Price: | $6,900-7,200 |
| Material: | Steel, Stainless Steel |
| Number of jaws: | 4 |
| Power type: | Pneumatic |
| Claw stroke: | 165mm |
| Maximum clamping force: | 1.36KN |
| Allowable pressure: | 0.1-0.9MPa |
| Limit speed: | 150r/min |
| Clamping range: | 0-170mm |
| Central height: | 280mm |
| Rotational inertia: | 3.95kg.㎡ |
| Rotating part weight: | 128.5kg |
| Whole unit weight: | 210kg |
| Model: | G400C-170 |
| Clamping force range: | 1.36KN(0.5Mpa) 2.45KN(0.9Mpa) |
| Dimensions A: | 600 |
| Company Info. |
| Lingman Machinery Technology (Changzhou) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

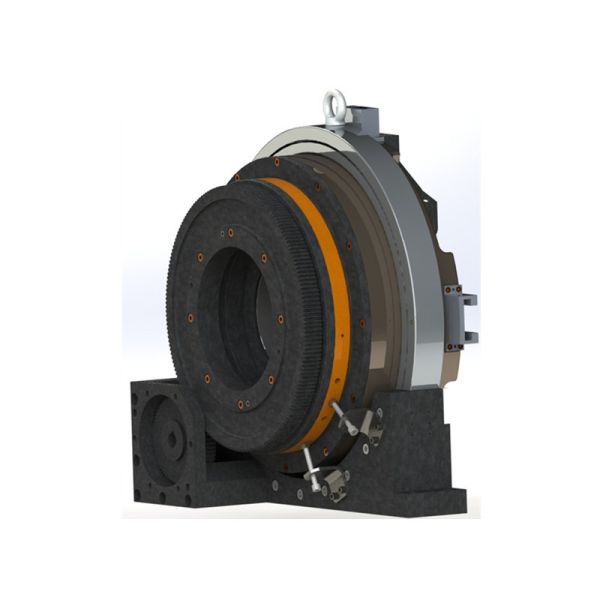

High Production Efficiency 4 Jaw Chuck Full Stroke Main Chuck for Laser Special Pipe Cutting Machine
Our laser chuck is specially designed for laser tube cutting equipment. It can be used as an independent rotating spindle with a chuck which can firmly clamp workpiece and rotate simultaneously.
The chuck can work in full stroke without additional adjustment of four claws,so it can clamp all applicable pipe fittings and improve production efficiency.
The chuck works along the full stroke, there is no need to adjust
the four-jaw position, a full range of applicable pipe parts can be
clapmed, and the production efficiency is improved.
The product is widely used in special purpose laser pipe cutting
machine and other pipe processing machine tool systems.
Performance Parameters
| Model | Claw Stroke | Maximum clamping force | Allowable pressure | Limit speed | Clamping range | Central height | Rotational ineria | Rotating part weight | Whole unit weight |
| G400C-170 | 165mm | 1.36KN(0.5Mpa) 2.45KN(0.9Mpa) | 0.1-0.9Mpa | 150r/min | 0-170mm | 280mm | 3.95kg.m2 | 128.5kg | 210kg |
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S |
| G400C-170 | 600 | 280 | 590 | 602 | 100 | 60 | 570 | 273 | 170 | 235 | 250 | 400 | / | / | / | 10 | / | / | 8-M8 | 18X21 |
Advantages
1.Full stroke design
2.Wide range of applications, diversification of processing profiles
3.High repetitive positioning accuracy
4. Low maintenance cost, long service life
5. multiple configurations are available
5.1 Solid or hollow
5.2 Comb-type or mortise-groove type claws
Company Information
Located in Changzhou CIty, Jiangsu Province, Lingman Machinery
Technology(Changzhou) Co.,Ltd. . is an enterprise focusing on
R&D, production and sales of various pneumatic chucks, electric
chucks. hydraulic chucks and other power chucks. With production
equipment and innovative design capabilities, it can provide users
with satisfactory service. It also can design and produce various
types of machine tools, non-standard equipment, and special power
fixtures and chucks for laser pipe cutting machines according to
different users' needs. The company is based on technological
innovation to provide every customer with suitable products, caring
services, continuous technology research and development, fully
implement quality management, continue to improve the service
system, and look forward to winning new and old customers favor.
Looking forward to be your Chinese partner in chuck business!
Producing Line
Our Service
1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.
3.Professional QC team to guarantee the high quality.
4.Providing OEM & ODM service.
FAQ
Q: What parameters should we offer us for proper quotation?
A: Application, dimension, quantity, packing requirements.
Q:What's your advantages?
A:Honest business with competitive price and professional service on export process.
Q: Can we visit your company to inspect products before delivery?
A: You are welcome to visit our company to inspect us and our
products.
Q:What's your lead time?
A: Within 15-35 days after confirming the order.
Q: What are your payment terms?
A: T/T, L/C, West Union, Paypal, etc.
