| Categories | Tilt Sensor Inclinometer |
|---|---|
| Brand Name: | RION |
| Model Number: | WCA360M |
| Certification: | CE FCC ROHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | $15.00/Pieces |
| Payment Terms: | T/T,paypal |
| Supply Ability: | 3000/month |
| Delivery Time: | 2 work days |
| Packaging Details: | carton packing |
| Output Interface: | RS485 (RTU MODBUS PROTOCOL) |
| Output Load: | > 500 ohm |
| Range: | 0 ~ 360° |
| Resolution: | 0.1° |
| Measure Accuracy (RMS): | ±0.2° |
| Response Time: | 0.1S |
| Temp. Drift Characteristics: | ±0.003°/°C |
| Operating Temp.: | -40~85°C |
| Company Info. |
| Shenzhen Rion Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

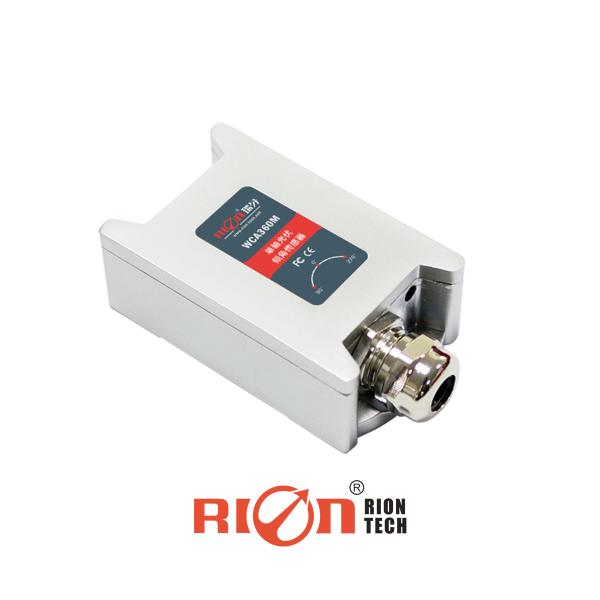

The WCA360M is a low-cost, high-performance single-axis tilt sensor developed by Ruifen Technology. Featuring the latest anti-interference platform and advanced capacitive micro-mechanical unit, it ensures:
Wide temperature operation
Excellent vibration resistance
Long-term stable performance (up to 10 years service life)
Using a non-contact measurement principle, it calculates real-time tilt angles by detecting gravitational components. Installation is simple—just mount on the object. No shafts or rotating parts needed. Ideal for construction machinery, agricultural equipment, and other industrial applications.
High resolution: 0.1°
Electrical protection: Over-voltage, over-current, and output surge protection
Interface: RS485 (MODBUS)
Wide voltage input: 9–36V
Operating temperature: -40℃ to +85℃
IP67 waterproof & dustproof
High vibration resistance: >3500g
Solar PV tracking systems ☀️
Woodworking machinery
|
|
