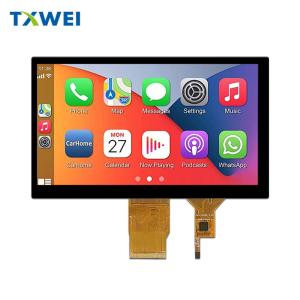

7-inch LCD touch screen with HDMI driver board 1024 * 600 high-definition IPS single screen touch screen USB interface

7-inch IPS full view high brightness screen, designed for extreme environments!

Still feeling embarrassed about the 'black screen' in strong outdoor light? Are you still worried about freezing due to low/high temperatures?TXW700076 series integrated screen, solves the three major display pain points of industrial, automotive, and medical at once. This model can choose single screen/capacitive touch screen and optional HDMI driver board!

Core selling point, locking in customers at a glance

It has a resolution of 1024 * 600, paired with original A-grade true color glass and IPS full view technology. No matter from which angle you look, the image is accurate, clear, and sharp in color. The RGB 24 Bit interface and 50 PIN configuration ensure "zero distortion" in image transmission, even for fine charts and high-definition images, details can be accurately presented, safeguarding the visual experience.
Equipped with a high brightness LED backlight, the brightness can reach 450cd/m ². When exposed to direct sunlight outdoors, the screen content remains clear and visible; The indoor lighting is dim, but it can still be bright, completely breaking free from the limitations of the environment on the display effect.
Adopting G+G touch technology and GT911 touch chip, the touch response is fast and accurate. Whether it's light touch selection or sliding operation, it's smooth and natural, and the interactive experience is full. Simultaneously supporting the combination selection of single screen or capacitive touch+driver board, flexibly adapting to the interaction needs of different devices.
The working and storage temperature range is from -30 ℃ to+85 ℃. It can operate stably in harsh northern winters, hot southern summers, or high temperature environments in industrial sites and outdoor cold scenes, providing strong support for stable operations in various industries.

Motorcycle instrument panel: -30 ℃ instant start, 450 nit high brightness, 5g vibration without screen, visible all the way through snow, desert, and mountain roads.
Car navigation: 2DIN in-situ replacement, HDMI plug and play, side view 178 ° IPS, automatic reading of backlight and tunnel brightness.
Electric vehicle instrument panel: 48V drop voltage 20V stable operation, IP65 waterproof, scan code settlement completed in 1 second, fully compatible with shared/private use.
Outdoor sunlight viewing equipment: micro prism backlight+AR coating, 1200 lux direct light without glare; Salt spray for 96 hours, UV for 720 hours, Kiosk by the sea is always transparent.
Industrial control equipment: G+G fully tempered steel, 1 J impact without cracks; Thick gloves, oil and water environment touch error<0.5 mm, 24-hour production line without chain drop.
Medical equipment: fully laminated without reflection, alcohol resistant to 1000 rubs; Δ E ＜ 1.5 true color display, the -30 ℃ cold chain lights up after 5 minutes in the operating room.
Human computer interface control panel: 3.5mm ultra-thin body, 1U rack can be installed freely; RGB 24 bit native interface, Linux/Android zero drive display, 85 ℃ thousand hour brightness without degradation.

• GT911+G+G: Multi touch in "3mm tempered steel+2mm air+2mm gloves"
• Thick glove mode Raw threshold 60, SNR>45 dB, Drift with water, oil, and saltwater;
• 7H tempered glass tempered at 550 ℃, 1 J steel ball impact without cracks, in compliance with IEC 60068-2-75 vehicle impact;
• The surface water droplet angle is 110 °, and the AF coating does not fail after wiping with alcohol 1000 times. Hospital 84 disinfectant can be sprayed freely.
• -30 ℃~+85 ℃ working temperature: not "wide temperature", it is "vehicle grade wide temperature"
• LCD: Merck MLC-7026-000, clear point 102 ℃, viscosity 450 mm ²/s at -30 ℃, response time 25 ms;
• Polarizing film: Sumitomo 120 ℃ grade, 85 ℃/85% RH 1000 h without delamination;
• Backlight adhesive: 3M 9469 PC, Tg -55 ℃, no warping after 200 cold and hot shocks;
• Actual measurement: Freeze at -40 ℃ for 4 hours → Drop at 1 meter → 85 ℃ for 4 hours, 10 cycles, colorless float, no bubbles, no bright lines.
• 50P RGB 24 bit: The oldest interface and most stable supply chain
• Directly connected to S32K, TMS570, RK3568 native RGB controllers, with 0 conversion chips;
• 50 pins with a spacing of 0.5 mm, 6 more grounds than 40P-EDP, differential impedance of 100 Ω± 10%, EMI can be passed in one go;
• 24 bit color depth Linux Framebuffer direct mapping, zero latency startup logo, no need for LUT color adjustment.

eal scene, batch verified
Instrument panel for two/three wheeled electric vehicles
A leading car factory in Guangdong adopts 3K per month, replacing traditional segment code screens with integrated navigation, battery, and tire pressure screens, which remain transparent under sunlight.

Rear mounted navigation and reversing screen for automobiles
The customer of the rear loading machine adopts the "touch+driver board" set, which is HDMI plug and play, eliminating the need for cable adapters and improving the overall assembly efficiency by 40%.

Industrial grade HDMI
Jiangsu Automation customer made PLC operation panel, tested at -20 ℃ cold storage for 24 hours without condensation or ghosting, and directly passed CE certification.

Portable medical monitoring
Shenzhen Medical Equipment Factory adopts a single screen solution, reducing the overall weight by 180 grams and making it easier for doctors to carry during ward rounds.

The 4 most concerned issues for FQA engineers

Can the brightness be further increased?
Standard configuration is 450 nit. If you need to customize higher brightness, please contact us.

Does the capacitive screen support thick gloves?
Factory cured GT911 2.0 firmware, supporting 1.5mm protective gloves, wet hands, and saltwater environments, with adjustable touch height.

Can we make a fully laminated black?
Support OCA full lamination, optical transmittance>94%, integrated black effect, high-end medical/smart home projects have been mass-produced.

Minimum order quantity? Delivery date?
Single screen/touch control: minimum order quantity of 1 piece; Regular inventory ≤ 1K, shipped within 3 days; Batch size of 5K, delivery time of 2-3 weeks, depending on actual inventory and material situation.
