Chemical Material Stainless Steel Hydraulic Emergency Cut-off Valve with 0.6MPa Nominal Pressure

Categories Special Vehicle Parts
Place of Origin: Hubei, China
Brand Name: CHUANCHU
Model Number: HT.QDQ413F-16P
Working Voltage: /
Flow Rate: /
Warranty: 12 Months
Certificate: /
Type: Valve
Product Name: Hydraulic Emergency Cut-off Valve
Material: Stainless steel/F46
Nominal Pressure: 0.6MPa
Medium: Chemical material
Seal material: Viton,PTFE
Package: Carton
Customized Support: ODM,OEM,OBM
Opening method: Hydraulic
Use: Chemical
Application: Tanker Truck
Price: $600/pieces >=1 pieces
Packaging Details: Wooden box
Delivery Time: 7-30 days
Payment Terms: T/T
MOQ: 1
Supply Ability: Meet large-scale orders
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Chemical Material Stainless Steel Hydraulic Emergency Cut-off Valve with 0.6MPa Nominal Pressure

Product Description

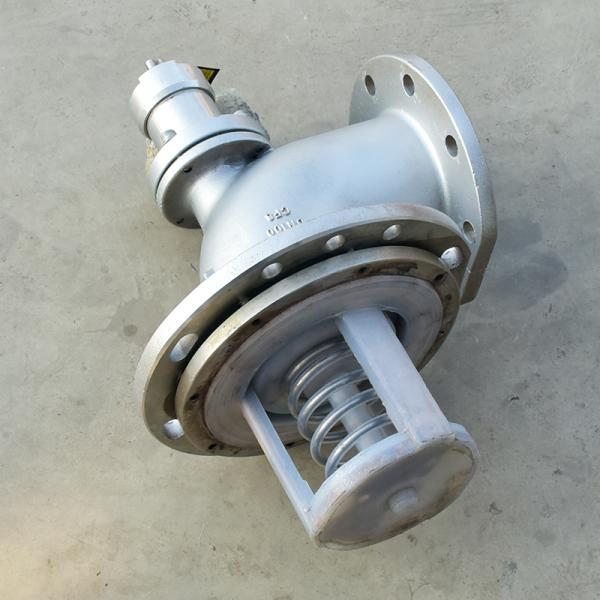

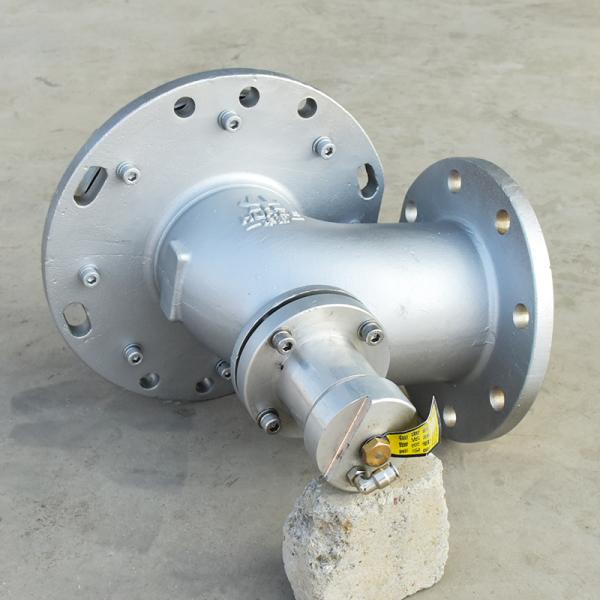

Stainless Steel Hydraulic Emergency Cut-off Valve

Emergency Cut-off Valve also named bottom loading valve.It's installed at the bottom of tank.The main of the valve was installed inside of the tank.When the pipeline or valve is accidentally broken or damaged,the tank can still be sealed.The product is lined with F46 stainless steel to effectively prevent the medium from corroding the valve body.This product has upgraded the hydraulic transmission method,which is more quickly and the power transmission is safer than before.And its hydraulic oil has self-lubricating effect,and its service life is longer.This product meets the relevant requirement of QC932-2019.

Feature:

1.This product adopts hydraulic transmission control,running smoothly,safe and reliable.

2.The automatic limit function is turned on,reasonable structure design to ensure large flow through.

3.When the bottom of the tanker is hit,the emergency cut-off groove automatically breaks to separate the tank from the bottom and become an independent closed tank from to prevent liquid leakage.

Product nameHydraulic Emergency Cut-off Valve
Main MeterialStainless steel/F46
Nominal diameterDN100
Nominal pressure0.6MPa
Design temperature-20ºC~+150ºC
Weight25kg
MediumSulfuric acid,hydrochloric acid,nitric acid,sodium chloride,sodium hydroxide
Flange Size6"
Opening methodHydraulic
Seal materialViton,PTFE

Company Information

Certifications

Packaging & Shipping

FAQ

Q: Are you trading company or manufacturer? A: We are factory.

Q:Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost
Q: :How long have you worked in this field?
A: Over 15 years. Q:What's the delivery time? A: Standard products will be arranged to ship in 7-10 days after full payment received. Q: Can your factory produce products according to our drawings or samples? A: Yes, of course we can.
