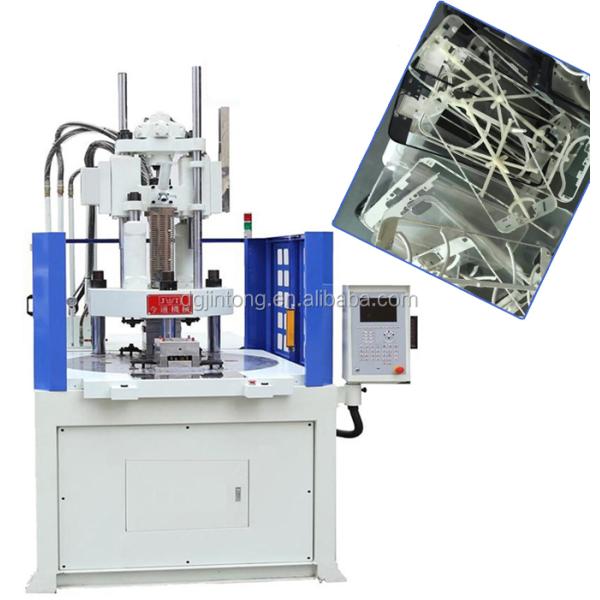

| Categories | Plastic Vertical Injection Moulding Machine |
|---|---|
| Place of Origin: | China |
| Model Number: | JTT-2000R |
| Brand Name: | JINTONG |
| Certification: | ISO9001 CE |
| MOQ: | 1 piece |
| Price: | $62,000-66,000 / piece |
| Clamping Force: | 200T |
| Injection Weight: | 456-662g |
| Ejector Stroke: | 75 mm |
| Ejector Force: | 48 kN |
| Shot Volume: | 678 cm³ |
| Injection Rate: | 212 g/s |
| Screw Diameter: | 60 mm |
| Tie Bar Distance: | 760mm |
| Machine Weight: | 12000 kg |
| Open Stroke: | 600 mm |
| Power: | 44.3 kW |
| Screw Stroke: | 260mm |
| Opening Force: | 22.4T |
| Rotary Table Diameter: | 1500mm |
| Machine Dimensions: | 3.0*2.2*3.6m |
| Company Info. |
| Dongguan Jintong Plastic Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by
using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil
pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to
similar products
Low noise: optimize motor working condition with imported bearing
and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor
and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
|
