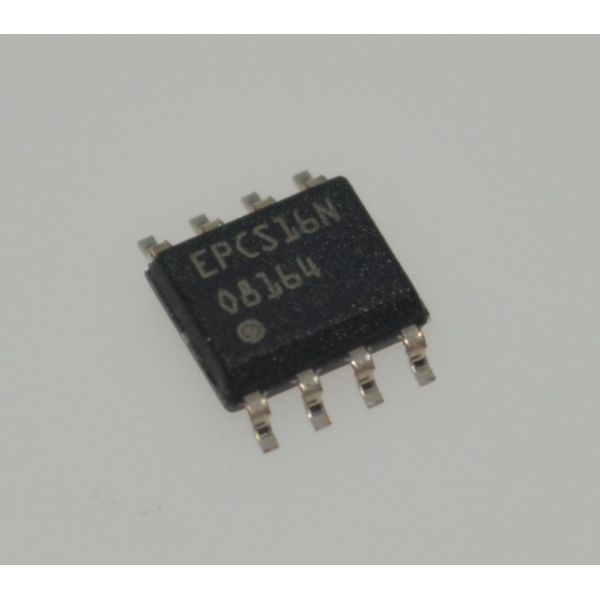

EPCS16SI8N 16Mb Serial Flash Low-Power High-Speed 100MHz Single 3.0V Supply Small Form Factor FPGA Configurator Reliable and Secure Data Storage

EPCS16SI8N 16Mb Serial Flash Low-Power High-Speed 100MHz Single 3.0V Supply Small Form Factor FPGA Configurator Reliable andamp; Secure Data Storage

andnbsp;

Features

■ 1- and 4-Mbit flash memory devices that serially configure CycloneTM FPGAs

■ Easy-to-use four-pin interface

■ Low cost, low pin count and non-volatile memory

■ Low current during configuration and near-zero standby mode current

■ 3.3-V operation

■ Available in 8-pin small outline integrated circuit (SOIC) package

■ Enables the Nios processor to access unused flash memory through active serial (AS) memory interface

■ Re-programmable memory with more than 100,000 erase/program cycles

■ Programming support with ByteBlasterTM II download cable

■ Additional programming support with the Alteraandreg;andnbsp;Programming Unit (APU) and programming hardware from BP Microsystems, System General, and other vendors

■ Software design support with the Altera Quartusandreg;andnbsp;II development system for Windows-based PCs as well as Sun SPARC station and HP 9000 Series 700/800

■ Delivered with the memory array erased (all the bits set to 1)

andnbsp;

Applications

1:Industrial Automation and Control: PLCs (Programmable Logic Controllers), industrial robots, motor drives, sensor gateways. Its reliability and

wide temperature range make it suitable for harsh industrial environments.

2:Communication Equipment: Network switches, routers, base station equipment, optical modules, etc., used for storing configuration data and

initialization code.

3:Medical Electronics: Medical monitoring equipment, portable diagnostic instruments, and other fields with high requirements for reliability and data security.

4:Automotive Electronics: In-vehicle infotainment systems, driver assistance control modules, etc. (Note: Specific automotive-grade certification requirements must be considered).

5:Consumer Electronics: Smart home devices (e.g., smart gateways, routers), printers, digital cameras, etc.

6:Test and Measurement Equipment: Oscilloscopes, signal generators, data acquisition cards, etc.

andnbsp;

Description

The EPCS16SI8N is a 16-megabit (Mb) serial configuration memory device developed by Intel (Altera), packaged in a compact SOIC-8 form factor. It is specifically designed to store and configure firmware data for FPGAs such as the Cycloneandreg; IV and Cycloneandreg; III series, ensuring reliable and fast loading of operational programs upon power-up.

The device communicates with the host controller via an efficient 4-wire SPI (Serial Peripheral Interface) bus, supporting clock frequencies of up to 100 MHz for high-speed data transfer. It operates within a single voltage supply range of 3.0V to 3.6V and features low power consumption, making it highly suitable for portable and battery-powered embedded applications.

The EPCS16SI8N offers exceptional reliability and data security, including a data retention period of up to 20 years and robust write-protection mechanisms. Its industrial temperature range and rugged design make it an ideal choice for applications in industrial automation, communication equipment, medical instruments, and consumer electronics.
