| Categories | Fiber Optic Connectors |
|---|---|
| Brand Name: | Liocrebif |
| Model Number: | LKF-780-1650PM Fiber Optic Patch Cords |
| Certification: | GJB 9001C-2017 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 5000-25000CHY |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
| Delivery Time: | 2-4 weeks |
| Packaging Details: | Wooden box/Cardboard box/Container |
| Color&Classification: | LKF-780-1650PM Fiber Optic Patch Cords |
| Brand: | Liocrebif |
| Output format: | RS422 |
| Application: | Related optical detection and applications. Fiber optic sensing systems. Medical detection equipment. Aviation and aerospace communications equipment |
| Original Place: | China |
| Dimension: | Determined by model |
| Company Info. |
| Wuhan Liocrebif Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

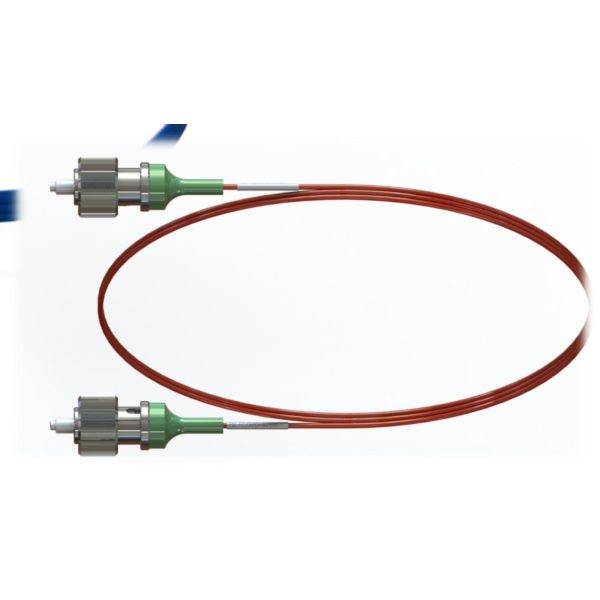

Polarization-maintaining fiber patch cords (tail fibers) are fiber optic connectors featuring standard fiber optic connectors at one or both ends. They are manufactured using polarization-maintaining fibers with precise stress axis alignment to create fiber patch cords (tail fibers). Our polarization-maintaining fiber patch cords utilize imported polarization-maintaining fiber optic connectors, offering low loss, high extinction ratio, and low return loss. We also provide optical fiber end-face AR coating upon customer request to optimize fiber-to-free-space coupling.
Table1 780-1650PM Fiber Optoc Patch Cords Main Parameters
Category | Indicator Requirements | Unit | ||
Center Wavelength | 780nm | 980nm | 1310nm | nm |
Connector Type | FC/SC/LC or customized | / | ||
Insertion Loss | ≤1.0 | ≤0.8 | ≤0.5 | dB |
Return Loss | ＞50(PC),＞60(APC) | dB | ||
Extinction Ratio | ≥23 | dB | ||
Interchangeability | ≤0.2 | dB | ||
Repeatability | ≤0.2 | dB | ||
Mating Cycles | ＞1000 | time | ||
Fiber Type | PM850 fiber | PM980 fiber | PM1310 fiber | / |
Power Handling (CW) | 300 | mW | ||
Tensile Load | ≥5 (0.9 optical cable), ≥50 (3.0 optical cable) | N | ||
Operating Temperature | -20~+85 | C | ||
Main Features
Covers multiple communication wavelengths including 780nm, 850nm, 980nm, 1064nm, 1310nm, 1550nm, and 1650nm.
Connectors utilize imported connector components, featuring low loss and high extinction ratio.
Offers fast-axis, slow-axis, and custom-angle alignment to meet diverse customer requirements.
Connectors available in FC, SC, LC, and other models, with support for non-standard (steel-jacketed pins) polarization-maintaining end customization.
Fiber end-face finishes include PC, UPC, APC, or custom grinding angles.
Applications
Related optical detection and applications
Fiber optic sensing systems
Medical detection equipment
Aviation and aerospace communications equipment
|
