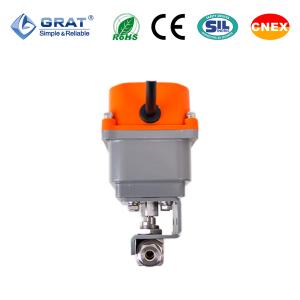

IoT Mini Double Ferrule Ball Valve with Compact Actuator for laboratory automation and environmental monitoring devices

IoT Mini Double Ferrule Ball Valve with Compact Actuator for laboratory automation and environmental monitoring devices

IoT Mini Double Ferrule Ball Valve with Compact Actuator for laboratory automation and environmental monitoring devices
IoT Mini Double Ferrule Ball Valve with Compact Actuator for laboratory automation and environmental monitoring devices
Categories Compact Actuator
Brand Name: GRAT
Model Number: EK-20
Certification: IP66,CCC, ISO, CE,CNAS,SIL
Place of Origin: Wuhan, Hubei, China
MOQ: 1 pc
Price: USD $150.00/ Piece
Payment Terms: LC, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Week
Delivery Time: 7 working days
Packaging Details: Carton/Wooden Box
Type: On/Off
Power Supply: AC220V/DC24V
Ambient Temp: -30ºC~60ºC
Application: Food, Environmental Protection, Paper-making, Chemical Engineering, and Power
Action Time: 15S - 25S
Communication Protocol: Modbus
Torque: 20NM
Size: DN20 ( up to DN25 )
Speed Regulation Mode: PWM
Position Display: OLED
Backlash: 0.5%
Dead: 0.5%
Feedback: 0.5%
Contact Now
Company Info.
Wuhan Grat Control Valve Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IoT Mini Double Ferrule Ball Valve with Compact Actuator for laboratory automation and environmental monitoring devices

IoT Double Ferrule Ball Valve
Product Description
The Double Ferrule Ball Valve integrates the efficient opening/closing mechanism of a ball valve with robust double ferrule sealing technology, ensuring exceptional leak-proof performance and long-term reliability. Designed for demanding applications, this valve is ideal for high-pressure, high-precision fluid control systems in industries such as oil and gas, chemical processing, and instrumentation. Its compact design, coupled with easy installation and minimal maintenance requirements, makes it a versatile solution for critical fluid handling where safety and precision are paramount.
Features
  • Low power consumption and high efficiency: It only requires 10W of power, saving energy costs while maintaining efficient and stable operation.
  • Smooth speed regulation: Adopting PWM stepless speed regulation ensures stable actuator operation and more precise control.
  • High-performance motor: The built-in brushless motor with overload protection is stable, reliable, and has a long service life.
  • Real-time parameter display: The OLED displays status and parameter information in Chinese or English, providing real-time feedback and fault alarm information.
  • Precise control: Adjustable range from 30% to 100% with 0.5% control accuracy, meeting diverse control requirements.
  • Multiple feedback methods: Supports 4-20mA/0-10V/1-5V feedback methods for accurate control.
Basic Parameters
Nominal Bore (DN)DN15～DN40
Operating VoltageAC220V, DC24V
Medium Temperature-15℃～60℃
Nominal PressurePN1.0～1.6MPa
Flow CharacteristicQuick opening
Physical Specifications
Connection TypeUnion, Flange
Valve Body MaterialsUPVC, CPCV, PVC
Valve Core MaterialsUPVC, CPCV, PVC
Ball Valve SealPTFE, PPL, etc.
Packing MaterialGraphite, PTFE
Actuator SealViton (FKM)
Actuator MaterialCast aluminum alloy
Suitable Media
  • Neutral gases
  • Neutral liquids
Standards Compliance
Design & ManufacturingGB12237-2007, API 6D
Product Inspection & TestingAPI 598
Circuit Wiring Diagram
IoT Mini 24V Circuit wiring diagram
DC 24V
IoT Mini 220V Circuit wiring diagram
AC 220V
Packing & Shipping
  • Packing: Inner with bubble wrap, outer with cardboard box and wooden case.
  • Transportation: By sea, by air, by train.
If you have other requirements, please feel free to tell us.
