| Categories | Data Center Switch |
|---|---|
| Brand Name: | Ruijie |
| Model Number: | RG-PF2920-16GT2XS |
| Vlan Support: | 4096 |
| Power Consumption: | Maximum 60W |
| Product Type: | Layer 3 Switch |
| Operating Humidity: | 5%~95% |
| Switching Capacity: | 176Gbps |
| Port: | 48*10/100/1000Base-T |
| Forwarding Performance: | 130.95Mpps |
| Warranty: | 5 years |
| Operating Temperature: | 0℃~45℃ |
| Power Supply: | AC 100-240V, 50/60Hz |
| Weight: | 3.2kg |
| Dimensions: | 440mm*44mm*220mm |
| Mac Address Table Size: | 32K |
| Model: | RG-S5750E |
| Company Info. |
| Shanghai Xinben Information Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

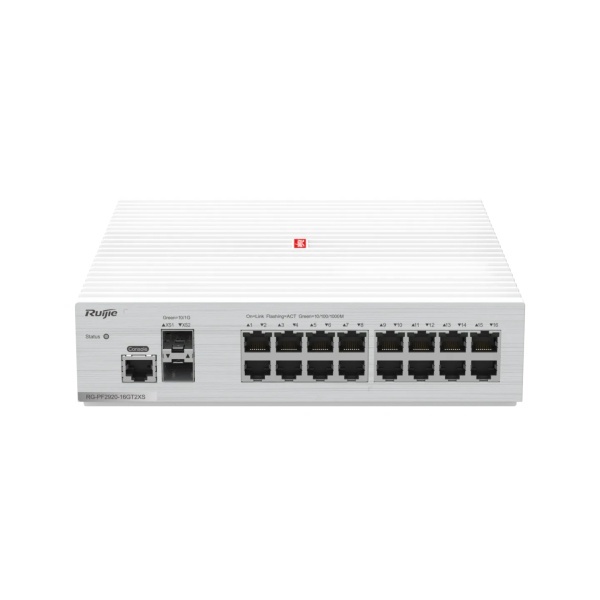

High-Performance 16-Port Ruijie Switch With 10G Uplink & Flexible Stacking For SMBs
The Ruijie RG-PF2920-16GT2XS is a next-generation 16-port Gigabit Ethernet switch designed for small and medium businesses (SMBs), enterprise branch offices, and campus networks. Featuring 2x 10G SFP+ uplink ports and Flexible Stacking technology, this high-performance switch ensures scalable bandwidth, seamless expansion, and simplified network management.
16x Gigabit Copper Ports + 2x 10G SFP+ Uplinks – Delivers
high-speed connectivity for workstations, IP cameras, and servers,
with 10G fiber uplinks for backbone aggregation.
Flexible Stacking (Up to 8 Units) – Combine multiple switches into
a single logical device for easier management and higher
redundancy.
Advanced QoS & Traffic Prioritization – Ensures smooth performance
for VoIP, video conferencing, and critical applications.
Enterprise-Grade Security – Supports 802.1X authentication, ACLs,
and port security to prevent unauthorized access.
Energy-Efficient Design – Complies with IEEE 802.3az
(Energy-Efficient Ethernet), reducing power consumption by up to
30%.
| Model | Ruijie RG-PF2920-16GT2XS |
|---|---|
| Ports | 16x 10/100/1000BASE-T, 2x 10G SFP+ (shared with last 2 RJ45) |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | 95.2 Mpps |
| Stacking Support | Yes (up to 8 units) |
| Security Features | 802.1X, ACL, Port Security, DHCP Snooping |
| QoS | 8 priority queues, L2/L3/L4 traffic classification |
| Power Consumption | <18W (typical) |
| Dimensions | 440 x 220 x 44 mm (Rack-mountable) |
Ideal for growing businesses needing reliable, high-speed networking, the RG-PF2920-16GT2XS offers future-proof 10G uplinks, simplified stacking, and robust security—all in a cost-effective package. Whether deploying in office networks, surveillance systems, or campus environments, this switch ensures low latency, high throughput, and easy scalability.
Upgrade your network with Ruijie’s advanced switching technology today!
|
