22.5 Ton SWC515-A SS Weigh Module Stainless Steel Load Cell

Categories Mettler Toledo Load Cell
Brand Name: Mettler Toledo
Model Number: Weigh Module SWC515-A SS 22.5t
Place of Origin: CHINA
MOQ: 1 set
Price: Negotiation
Supply Ability: 2000 set per month
Delivery Time: 10-30days
Packaging Details: Caron box
Product: Mettler Toledo Load Cell
Maximum Capacity: 49,500 lb (22,500 kg)
Material: Stainless Steel V2A (AISI 304)
Metrology: NTEP III 5,000d OIML C3
Load Cell: 12 m cable SLC611
Accuracy: Standard
Protection Rating: IP68/69k
Environment / Material: Wash-down / Stainless Steel
Hazardous Approval: ATEX, FM
Criticality: Standard
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

22.5 Ton SWC515-A SS Weigh Module Stainless Steel Load Cell

22.5 Ton SWC515-A SS Weigh Module – Stainless Steel Load Cell
Product Overview

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features
Multi Purpose - Always Suitable

For static & dynamic tanks, hoppers, mixers & conveyors. Features a high accuracy, fully approved stainless hermetic load cell suitable for all applications.

No Compromise on Safety

Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells for maximum reliability.

Right the First Time

Fast and straightforward installation without damaging the Load Cell, thanks to the SafeLock™ plates. Integrated space for hydraulic jack included.

Technical Specifications
ProductMettler Toledo Load Cell
Maximum Capacity49,500 lb (22,500 kg)
MaterialStainless Steel V2A (AISI 304)
MetrologyNTEP III 5,000d OIML C3
Load Cell12 m cable SLC611
AccuracyStandard
Protection RatingIP68/69k
Environment / MaterialWash-down / Stainless Steel
Hazardous ApprovalATEX, FM
CriticalityStandard
SWC515-A SS Weigh Module - Stainless Steel Load Cell showing industrial installation

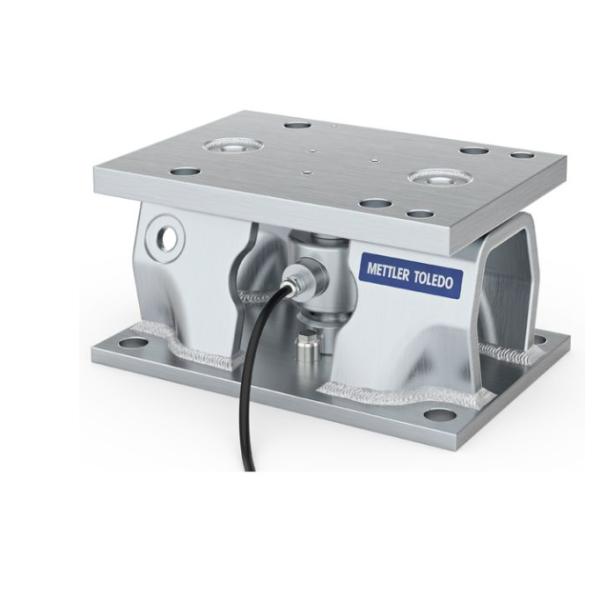

Quality 22.5 Ton SWC515-A SS Weigh Module Stainless Steel Load Cell wholesale
