MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

Categories One Way Bearings
Model Number: MI300 MG300
Brand Name: SUMA
Place of Origin: China
MOQ: 1
Price: $108-145
Precision Rating: P0
Seals Type: OPEN
Type: CAM, Cam clutch
Torque Capacity: 314 Nm
Max Indexing: 300 cycle/min
Drag Torque: 0.31 Nm
Weight: 1.8 kg
Bore Size: 19 mm
Outer Race: 77 mm
Keyway: 5x2
PCD: 63 mm
H-M: 13 mm
Tapped Holes: 4xM6xP1.0
Max Overrunning: 2800 r/min
Max Indexing Speed: 900 cycle/min
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

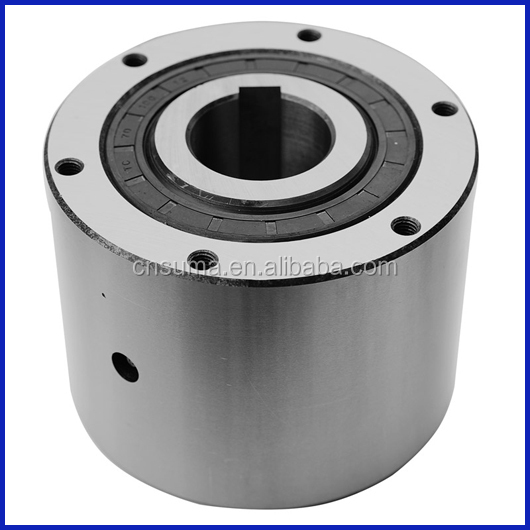

MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

MI300 MG300 One Way Cam Clutch Bearing for Offset Printing Machine

Product Description

Features of One way cam clutch bearing

  • Mainly used for indexing applications
  • Delivers high precision intermittent feed
  • Perfect for medium- and low-speed indexing applications where the feed length is short
  • Also excellent for applications subject to load changes in continuous engagement operations (overrunning)

SPECIFICATIONS

Item

MI300 one way cam clutch

PrecisionP0
Typecam
Bore size (mm)19
Outer race (mm)77
Torque (KN)314Nm
Max. Indexing (cycle/min)300
Drag Torque(Nm)0.31
Weight (kg)1.8kg
Packagewooden box or customizable
Delivery time5-7 days after order confirmed
Payment termsL/C, T/T, D/P, D/A, Western Union

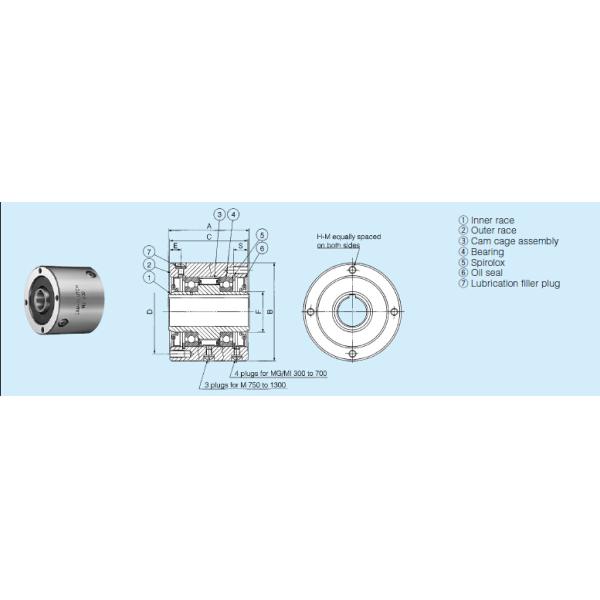

PARAMETER LIST of one -way cam clutches bearing


ModelTorqueDragMax.
Overrunning
Max.Bore SizePCDH-M
No.of
Weight
CapacityTorque(r/min)IndexingABCEFS

Tapped Holes

×Size×Pitch

(kg)
(Nm)(Nm)

Inner

Race

Outer

Race

(cycle/
min)

Dia.

(H7)

Keyway(h7)D
MG 3003140.232800900_195x26377606610.428.5134xM6xP1.01.8
MI 3000.3150_300
MG 4005390.292600800_225x27088677310.731.7164XM8xP1.252.7
MI 4000.3850_300
MG 50016200.512400800_31.57x389108869212.344.4164XM8xP1.255
MI 5000.6850_300
MG 60031400.852100700_5012x3.5951369212012.869.8166xM8xP1.258.6
MI 6001.5430_300
MG 70058801.71500500_7018x612718012416019.8101.5206xM10xP1.519.5
MI 7002.6330_300
MG 75095003.431800600_8524x615320015017575110258xM14xP2.037
MI 7504.1230_300
MG 800176005.391300475_11028x715825015522077.5140258xM16xP2.046.5
MI 8008.3320_300
MG 900245006.771200400_13535x9165300160265801703210xM16xP2.070.5
MI 9009.4120_300
MG 1000338008.141200325_16038x10188370180325902003212xM16xP2.0108.5
MI 100012.7420_300
MG 11007840015350__18545x142604702504151252604012xM20xP2.5250
MI 110022.1520_150
MG 12009510017.64300__20045x142605002504401252804512xM24xP3.0280
MI 120027.5420_150
MG 130017600018.72250__25056x17.52806002605301303405012xM30xP3.5
MI 130028.1320_150

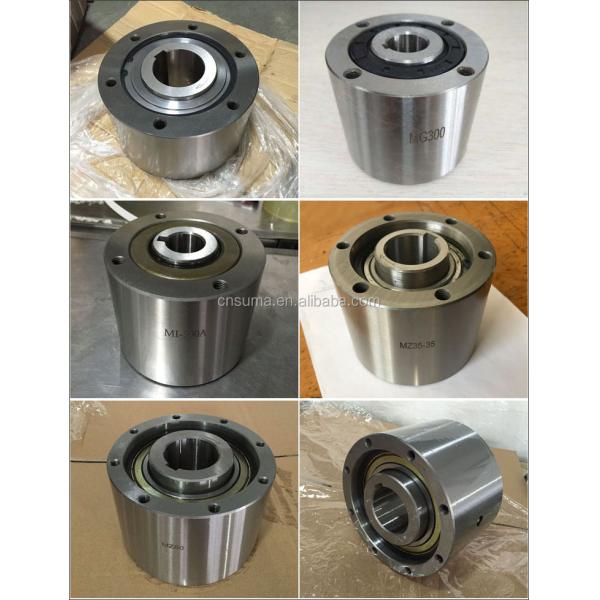

Detailed Images

Application

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
