7 parameters High Precision Handheld OLED display Surface Roughness Tester

Categories Portable Surface Roughness Tester
Brand Name: HUATEC
Model Number: SRT5060
Certification: CE
Place of Origin: China
MOQ: 1 SET
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 50 Sets per Month
Delivery Time: 3-5 working days after payment
Packaging Details: carton packaging
Parameters: Ra, Rz, Rq, Rt, Rp, Rv, Rc
Range: ±80um
Display Accuracy: ±10%
Indication variability: ≤6%
Resolution: 0.01um
Max. driving length: 6mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

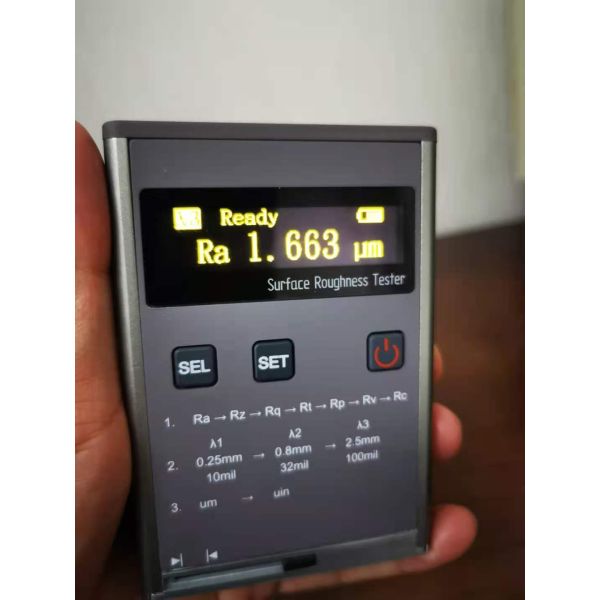

7 parameters High Precision Handheld OLED display Surface Roughness Tester

7 parameters High Precision Handheld OLED display Surface Roughness Tester


Features

l 7 parameters Ra, Rz , Rq, Rt, Rp, Rv, Rc

l High precision inductive sensor

l GAUSS filter

l Comply with ISO4287

l 256X64 OLED display

l Built in lithium ion battery and charging control circuit, high capacity, no memory effect

l Continuous working time more than 15 hours

l Aluminum mold design makes durable and better anti-electromagnetic interference ability


Specification

Parameters

Ra, Rz, Rq, Rt, Rp, Rv, Rc

Range

±80um

Display Accuracy

±10%

Indication variability

≤6%

Resolution

0.01um

Probe features

Type

Inductive

Stylus radius/angle

5um

Stylus material

Diamond

Measuring force

4mN(0.4gf)

Measuring unit

Um/uin

Sensor angle

90 degree

Longitudinal radius of guide head

45mm

Max. driving length

6mm

Traverse speed

λ1: cut off =0.25mm, Vt=0.135mm/s

λ2:cut off =0.8mm, Vt=0.5mm/s

λ3: cut off =2.5mm, Vt=1mm/s

Power

Built-in Rechargeable battery


Standard Delivery

l Main unit

l Calibration block

l AD/DC adapter and data line

l Testing support board

l Carrying case

l English instruction manual

l Calibration certificate

l Warranty card

l Packing list
