| Categories | FTTH Drop Cable |
|---|---|
| Brand Name: | MingTong |
| Certification: | ISO |
| Place of Origin: | Dongguan CHINA |
| Price: | 300-2000RNB/KM |
| Payment Terms: | L/C,T/T |
| Delivery Time: | It depends on the actual situation |
| MOQ: | 20km |
| Packaging Details: | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Supply Ability: | 200km/Day |

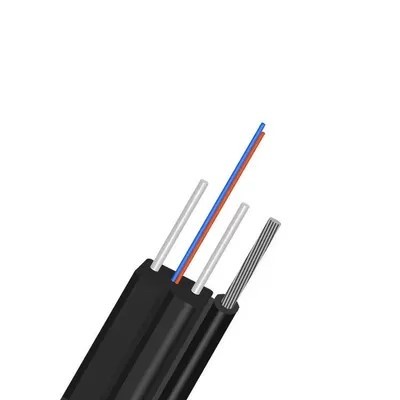

| Product: | Figure 8 FTTH DROP CABLE |
| Application: | FTTH |
| Messenger: | Stranded Steel Wires |
| Fiber: | G652D Or G657A |
| Self-Supporting Strength Member: | 3 Steel Wire |
| Package: | Wooden Drum |
| Weight: | 32kg |
| Highlight: | G657A FTTH Drop Cable, G652D FTTH Drop Cable, G652D self supporting fiber optic cable |
| Company Info. |
| Dongguan Mingtong Optoelectronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Drop Fiber optic cables for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network users to introduce the section of the optical cable.The drop FTTH cables are with flame retardant jacket and with supporting wire, there are strengthen members inside the cables for supporting the whole cables, the whole cable meet the RoHS standards and contains no harmful components, in general,it is a highly recommended FTTH drop cables for use in the fiber to the home projects.
Features
Adopt fiber with small bending radius (G.657),
offering good bending resistance;
Adopt all-dry structure and fiber with small bending radius,
offering good bending resistance;
Easy cable stripping without need of tools, easy cable fixation
and low cost of installation.
Application
As FTTH cable,for indoor horizontal and vertical cabling;
Indoor cabling under carpet and along corner.
Outdoor cable suitable as cable extending from outdoor (as aerial
cable) to indoor；
| Physical | Fiber account | 1 G.657A2 |
| Cable OD | ≤ 2.0*5.0mm | |
| Cable weight | ≤ 20kg/km | |
| Operation temperature range | -20 deg C to + 60 deg C | |
| Installation temperature range | -5 deg C to + 50 deg C | |
| Transport and storage temperature range | -20 deg C to + 60 deg C | |
| Mechanical | Max. tensile load | Short term:600N; Long term:300N |
| Crush resistance | Short term:2200 N/10cm; Long term: 1000 N/10cm | |
| Minimal installation bending radius | 20 x OD | |
| Minimal operation bending radius | 10 x OD | |
| Fiber Color | Blue | |
Structure
|
