| Categories | Pneumatic Air Cylinders |
|---|---|
| Brand Name: | FESTO or OEM |
| Model Number: | 532724 DNCB-32-25-PPV-A 532737 DNCB-40-25-PPV-A 532750 DNCB-50-25-PPV-A 532725 DNCB-32-40-PPV-A 532738 DNCB-40-40-PPV-A 532 751 DNCB-50-40-PPV-A 532726 DNCB-32-50-PPV-A 532739 DNCB-40-50-PPV-A 532752 DNCB-50-50-PPV-A 532727 DNCB-32-80-PPV-A 53274 |
| MOQ: | 1pc |
| Price: | EXW USD15-165 |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1200 pcs per month |
| Delivery Time: | 8-10 working days |
| Packaging Details: | plastic bag, carton，OPP bag |
| Cylinder barrel: | Anodized wrought aluminum alloy |
| Design: | Piston Piston rod |
| Working Pressure: | 0-10Bar |
| Operating medium: | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium: | Lubricated operation possible (in which case lubricated operation will always be required) |
| Ambient temperature: | -20°C-80°C |
| Piston Material: | High-alloy steel,and High-alloy stainless steel |
| Seals: | Polyurethane, nitrile rubber and Fluoro rubber |
| Bearing and end cap: | Wrought aluminium aloy |
| Constructions: | ISO 15552 standard, VDMA 24364-B1/B2-L (cleanroom compatibility), RoHS-compliant |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |
Order Codes:
| 532724 DNCB-32-25-PPV-A | 532737 DNCB-40-25-PPV-A | 532750 DNCB-50-25-PPV-A |
| 532725 DNCB-32-40-PPV-A | 532738 DNCB-40-40-PPV-A | 532 751 DNCB-50-40-PPV-A |
| 532726 DNCB-32-50-PPV-A | 532739 DNCB-40-50-PPV-A | 532752 DNCB-50-50-PPV-A |
| 532727 DNCB-32-80-PPV-A | 532740 DNCB-40-80-PPV-A | 532753 DNCB-50-80-PPV-A |
| 532728 DNCB-32-100-PPV-A | 532741 DNCB-40-100-PPV-A | 532754 DNCB-50-100-PPV-A |
| 532729 DNCB-32-125-PPV-A | 532742 DNCB-40-125-PPV-A | 532755 DNCB-50-125-PPV-A |
| 532730 DNCB-32-160-PPV-A | 532743 DNCB-40-160-PPV-A | 532756 DNCB-50-160-PPV-A |
| 532731 DNCB-32-200-PPV-A | 532744 DNCB-40-200-PPV-A | 532757 DNCB-50-200-PPV-A |
| 532732 DNCB-32-250-PPV-A | 532745 DNCB-40-250-PPV-A | 532758 DNCB-50-250-PPV-A |
| 532733 DNCB-32-320-PPV-A | 532746 DNCB-40-320-PPV-A | 532759 DNCB-50-320-PPV-A |
| 532734 DNCB-32-400-PPV-A | 532747 DNCB-40-400-PPV-A | 532760 DNCB-50-400-PPV-A |
| 532735 DNCB-32-500-PPV-A | 532748 DNCB-40-500-PPV-A | 532761 DNCB-50-500-PPV-A |
| 532763 DNCB-63-25-PPV-A | 532884 DNCB-80-25-PPV-A | 532897 DNCB-100-25-PPV-A |
| 532764 DNCB-63-40-PPV-A | 532885 DNCB-80-40-PPV-A | 532898 DNCB-100-40-PPV-A |
| 532765 DNCB-63-50-PPV-A | 532886 DNCB-80-50-PPV-A | 532899 DNCB-100-50-PPV-A |
| 532766 DNCB-63-80-PPV-A | 532887 DNCB-80-80-PPV-A | 532900 DNCB-100-80-PPV-A |
| 532767 DNCB-63-100-PPV-A | 532888 DNCB-80-100-PPV-A | 532901 DNCB-100-100-PPV-A |
| 532768 DNCB-63-125-PPV-A | 532889 DNCB-80-125-PPV-A | 532902 DNCB-100-125-PPV-A |
| 532769 DNCB-63-160-PPV-A | 532890 DNCB-80-160-PPV-A | 532903 DNCB-100-160-PPV-A |
| 532770 DNCB-63-200-PPV-A | 532891 DNCB-80-200-PPV-A | 532904 DNCB-100-200-PPV-A |
| 532771 DNCB-63-250-PPV-A | 532892 DNCB-80-250-PPV-A | 532905 DNCB-100-250-PPV-A |
| 532772 DNCB-63-320-PPV-A | 532893 DNCB-80-320-PPV-A | 532906 DNCB-100-320-PPV-A |
| 532773 DNCB-63-400-PPV-A | 532894 DNCB-80-400-PPV-A | 532907 DNCB-100-400-PPV-A |
| 532774 DNCB-63-500-PPV-A | 532895 DNCB-80-500-PPV-A | 532908 DNCB-100-500-PPV-A |

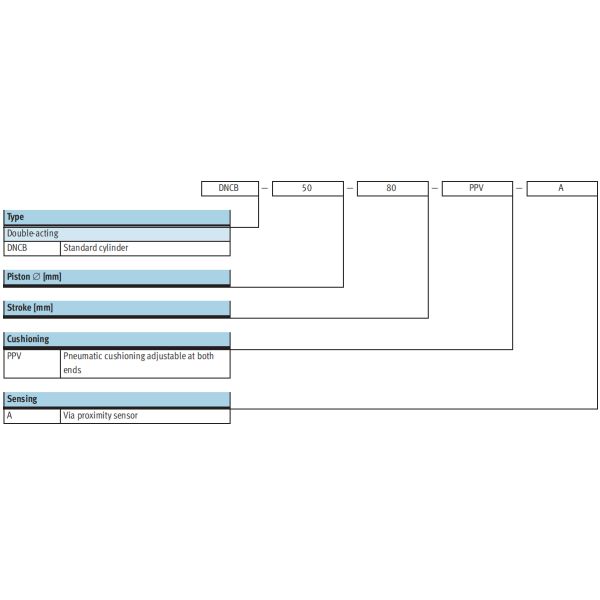

HOW TO ORDER:
| Attribute | Specification |
| Compliance | ISO 15552 standard, VDMA 24364-B1/B2-L (cleanroom compatibility), RoHS-compliant |
| Construction | Modular design with double-acting operation for precise control |
| Components | Includes piston rod, cylinder barrel, seals, bearings, cushioning systems, and mounting accessories |
| Materials | - Cylinder Barrel/Piston: Anodized wrought aluminum alloy |
| - Piston Rod: Hard-chrome-plated tempered steel or high-alloy stainless steel | |
| Seals: C8, FPM, HNBR (temperature-resistant options available) | |
| Cushioning | Adjustable pneumatic (PPV), self-adjusting (PPS), or elastic cushioning options |
| Operating Pressure | Optimized for standard industrial pneumatic systems (refer to Festo guidelines) |
| Temperature Range | - Standard seals: -20°C to +80°C |
| - Low-temperature seals: -40°C to +80°C (TPE-U variants) | |
| Stroke Length | 1 mm to 2800 mm (varies by model) |
| Bore Sizes | 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, 125 mm |
| Mounting | Flexible options: female thread, swivel mounts, or accessories (e.g., DPNC multi-position kit) |
| Weight | Varies by size (lightweight aluminum construction ensures easy integration) |
| Color | Natural metallic finish (anodized aluminum) |
| Lifespan | Extended durability due to corrosion-resistant materials and robust sealing systems |
| Pneumatic Ports | G1/8 to G1/2 connections, compatible with standard tubing |
| Special Features | - Optional protective bellows (DADB kit) for harsh environments |
| - Cleanroom Class 6 (ISO 14644-1) compatibility |
Datasheet:
Dimension:

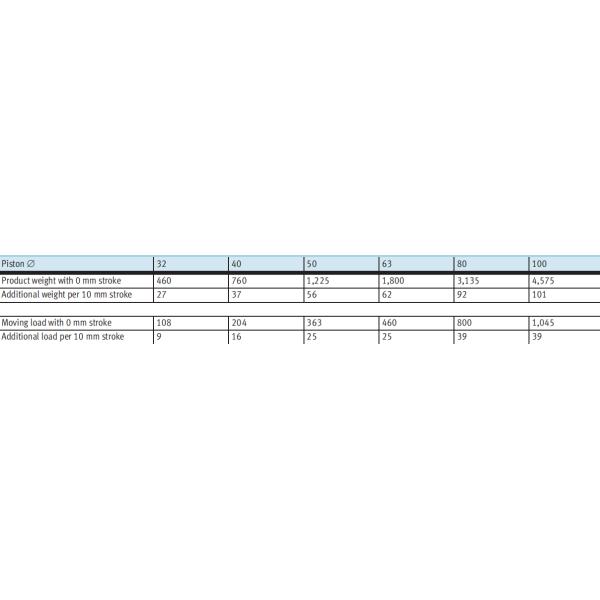

Weight:
|
