| Categories | Suspension Air Springs |
|---|---|
| Brand Name: | AIRSUSTECH |
| Model Number: | 2B6×2P |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | Guangzhou, China |
| MOQ: | 1 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Supply Ability: | 1000pcs/week |
| Delivery Time: | 3-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Trademark: | AIRSUSTECH |
| Product Number: | 2B6×2P |
| Threaded Hole: | 4-M8 |
| Total Stroke: | 115 MM |
| Structure: | Double Convoluted |
| Firestone: | W01-R58-4070 |
| Operating Temperature: | -40℃+70℃ |
| Operation: | Gas-filled |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

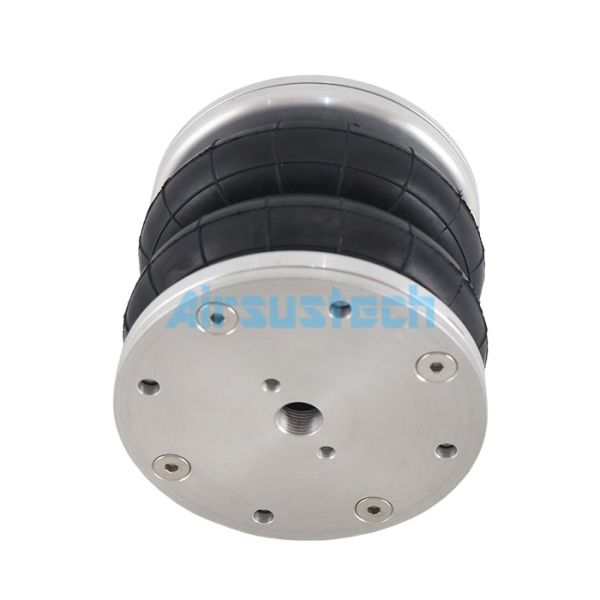

Norgren PM/31062 G1/2 M8 Stamped Flange Suspension Air Spring for Roller Tensioning
Product Specifications and Technical Datas
Diameter of the Top Cover Plate: 152.5 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 127 mm
Diameter of the Bottom Cover Plate: 152.5 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 127
mm
Screw (Nut) Thread Count for the Top Cover Plate: 4×M8
Screw (Nut) Thread Count for the Bottom Cover Plate: 4×M8
Air Inlet: G1/2
Max Diameter of the Rubber Bellow: 178 mm
Installation Space: 195 mm
Design Height: 160 mm
Maximum Height: 195 mm
Minimum Height: 80 mm
Vibration isolation - dynamic characteristics values
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [kN] | 2.6 | 3.5 | 4.5 | 5.5 | 6.5 | 7.6 | 2.0 |
| Spring Rate [N/cm] | 675 | 855 | 1035 | 1215 | 1395 | 1570 | |
| Natural Frequency [Hz] | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 | 2.3 |
Pneumatic application - static characteristic values
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
| Height H [mm] | 160 | 2.6 | 3.5 | 4.5 | 5.5 | 6.5 | 7.6 | 2.0 |
| 140 | 3.3 | 4.5 | 5.6 | 6.8 | 8.1 | 9.3 | 1.7 | |
| 120 | 3.9 | 5.2 | 6.6 | 8.0 | 9.4 | 10.8 | 1.5 | |
| 100 | 4.6 | 6.2 | 7.8 | 9.4 | 11.1 | 12.8 | 1.2 |
OEM Cross References
Air Spring Supplier: Norgren
Supplier Number: PM/31062, PM31062, PM 31062
Air Spring Supplier: Firestone
Supplier Number: W01-R58-4070, W01R584070, W01 R58 4070
Air Spring Supplier: Dunlop Pneuride
Supplier Number: 6"x2 (Al), 6x2 (Al), 6'x2 (Al)
Air Spring Supplier: Dunlop Springride
Supplier Number: SP2917
Air Spring Supplier: Contitech
Supplier Number: FD 76-14 DI, FD 7614 DI, FD 76 14 DI
Air Spring Supplier: Parker
Supplier Number: 9109001A
Safety Considerations of AIRSUSTECH Air Springs
Failure to observe these guidelines may result in:
For clarification on any operational parameter, consult the official product manual or contact technical support.
The Detailed Photos





|
