P25-25mm High Brightness Outdoor LED Mesh Display IP68 Waterproof
Technical Specifications
| Parameter | Specification |
|---|
| Model | EV25 |
| LEDs | 1R1G1B |
| LED Type | DIP346 Fortune |
| Pixel Pitch | 15.62mm(V) × 15.62mm(H) |
| Unit Size | 1000mm(W) × 1000mm(H) × 66mm(D) |
| Unit Resolution | 40 × 40 dots |
| Resolution | 1,600 dots/㎡ |
| Transparency Rate | 60% |
| Brightness | ≥6,500 nits |
| Weight | 18kg/㎡ |
| Max Power Consumption | 300W/㎡ |
| Average Power Consumption | 100W/㎡ |
| Viewing Angle | H120° / V60° |
| Protection Level | IP68 |
| Thickness | 66mm |
| Heat Dissipation | Convective |
| Wind Resistance | Level 12 |
| Power Supply | Power supply with PFC |
| Installation | Fast install |
| Fire Safety | 10S/unit |
| Fire Resistance | Full VO grade |
| Service Access | Front & Back |
| Control Mode | Static steady state |
| Color Temperature | 3200-9300K |
| Refresh Rate | 60Hz |
| Working Temperature | -40℃ to 70℃ |
| Storage Temperature | -55℃ to 120℃ |
| Lifespan | ≥100,000 hours |
| Input Voltage | AC110-220V |
| Grey Grade | 14bit |
| Warranty | 2 years |
Product Overview
Our outdoor LED mesh features an efficient, streamlined design that
saves valuable time and labor during installation—making it the
ideal choice for complex outdoor environments. Its modular
structure, paired with excellent heat dissipation performance,
ensures long-term stable operation even in harsh conditions while
significantly reducing maintenance costs, offering reliable and
cost-effective visual solutions for your outdoor projects.
Key Features
- Ultra-light & Ultra-thin Construction: The cabinet weighs only
18kg/㎡, 75% lighter than traditional outdoor LED screens. The
supporting steel structure is just 5kg/㎡, an 80% reduction compared
to conventional outdoor LED display steel structures.

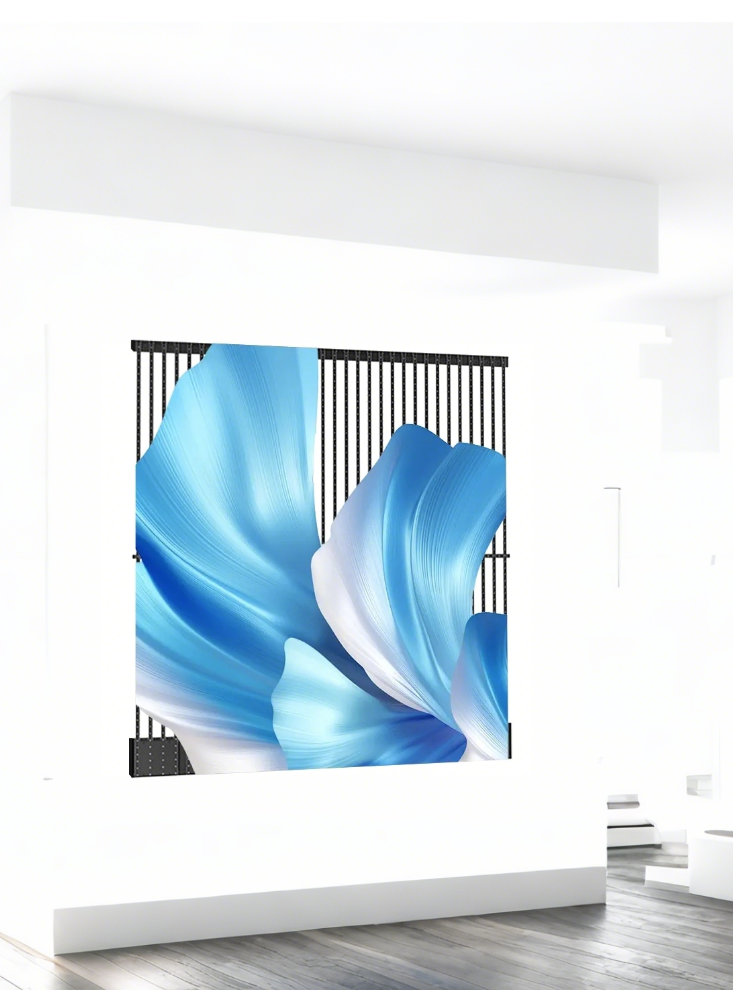

- High Light Transmission Rate: Effectively preserves the building’s
original lighting, putting an end to the "screen blocking" and
"dark screen" issues common with traditional displays.
- Stable & Reliable Performance: Built with high thermal conductivity
materials, heat dissipation efficiency is improved by 80%. Features

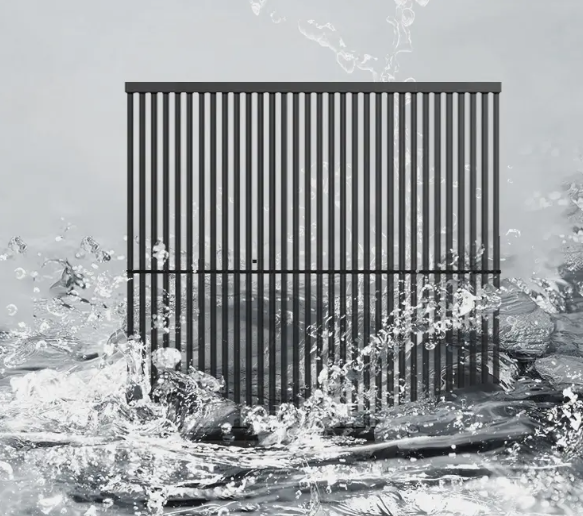

an overall potting process and military-grade IP68 full protection,
enabling stable operation in extreme climates ranging from -40℃ to
60℃.
- Highly Permeable Windproof Design: Boasts an excellent wind
resistance rating, suitable for outdoor environments with strong
wind conditions.
Quick Specifications
Our Services
- 10+ years professional LED display manufacturing experience
- Short delivery time: 5-15 working days (adjustable per customer
request)
- Competitive wholesale pricing
- OEM and ODM services available
- Customizable products to meet specific requirements
Frequently Asked Questions
How does the service work?
We have experienced engineers with 15+ years in the industry who
provide fluent English technical support via video conference,
TeamViewer, or on-site guidance.
What installation options do we have?
Wall mounting with metal structures.
Do you have any MOQ limit for LED screen orders?
Low minimum order quantity - modules or complete screen orders are
all welcome.
What's the shipping method?
Air freight, sea, and train transport options available based on
destination region.
What's the payment method?
Telegraphic transfer accepted - 50% deposit before production and
50% balance before shipment.
How do you control the production quality?
Comprehensive quality management from incoming materials inspection
through production. All LEDs, ICs, and power supplies are
pre-inspected. Modules and complete screens undergo 72+ hours of
aging tests to ensure stable performance.
How does warranty work?
1-3 years warranty depending on product. Includes free repair or
exchange of defective parts with one-way shipping.
