45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes

45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes

45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes
45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes
Categories Stainless Steel Buttweld Pipe Fittings
Brand Name: YUHAO
Model Number: Butt Weld Pipe Fittings
Certification: ASTM, AISI, GB, DIN, JIS
Place of Origin: China
MOQ: 100kgs
Price: Negotiation
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2000tons/per month
Delivery Time: 15days
Packaging Details: Standard sea worth bundles,Standard Plywood cases
Wall Thickness: Sch5-SCH160
Standard: ASTM, AISI, GB, DIN, JIS
Surface Finish: Polished, Brushed, Matte, Sandblasted
Material: 304, 304l, 316, 316, 321, 347h, 310s, s31803, 2205, etc.
Pipe Fitting Type: Concentric reducer
Connection Type: Butt Welded
Application: Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment, Shipbuilding
Diameter Range: DN15-DN900
Corrosion Resistance: High Corrosion Resistance
Package: Wooden box or Pallet or carton
Sizerange: 1/2 inch to 48 inch
End Type: Beveled
Price Term: CIF, FOB, EX-WORK
Contact Now
Company Info.
Zhejiang Yuhao Stainless Steel Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes

45-Degree Stainless Steel Reducing Elbow: Seamless Transition for Pipe Size Changes
Product Specifications
AttributeValue
Wall ThicknessSch5-SCH160
StandardASTM, AISI, GB, DIN, JIS
Surface FinishPolished, Brushed, Matte, Sandblasted
Material304, 304l, 316, 316, 321, 347h, 310s, s31803, 2205, etc.
Pipe Fitting TypeConcentric reducer
Connection TypeButt Welded
ApplicationOil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment, Shipbuilding
Diameter RangeDN15-DN900
Brand NameYuhao
Corrosion ResistanceHigh Corrosion Resistance
Place of OriginChina
Size1/2" up to 110"
EndBevel end ANSI B16.25
PackageWooden box or Pallet or carton

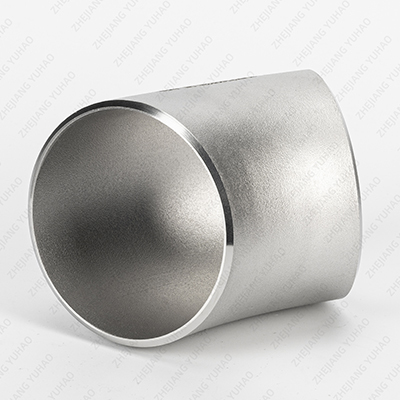

This specialized 45-degree reducing elbow provides an efficient solution for piping systems requiring both directional change and diameter transition. Manufactured from 304/316L stainless steel, it eliminates the need for separate reducers and additional fittings, reducing potential leak points and installation time. The precision-engineered design maintains optimal flow characteristics while accommodating pipe size changes.
Technical Specifications:
  • Material Grades: 304, 304L, 316, 316L stainless steel options
  • Size Combinations: 1"×3/4" to 8"×6" and custom combinations
  • Pressure Rating: SCH 10S to SCH 80 compatibility
  • Temperature Range: -30°C to 250°C standard service
  • Manufacturing Process: Cold formed or hot formed per application requirements
  • Standards Compliance: ASME B16.9, ASTM A403, MSS SP-75
Key Applications:
  • Pump suction and discharge lines
  • Process equipment connections
  • Water treatment plant piping
  • Industrial plant expansions and modifications
  • HVAC system main-to-branch transitions
  • Chemical processing unit operations
Design Advantages:
  • Space Optimization: Combines two fittings into one compact unit
  • Flow Efficiency: Gradual transition minimizes turbulence and pressure drop
  • Installation Economy: Reduces welding points and labor costs
  • Maintenance Friendly: Fewer connections mean fewer potential leak points
  • System Integrity: Uniform material composition throughout the fitting
The reducing elbow features precision-machined beveled ends matching both pipe sizes, ensuring perfect alignment and weld quality. Available in both short-radius and long-radius configurations to suit specific space and flow requirements. All fittings undergo dimensional verification, visual inspection, and material certification. Custom combinations and special wall thicknesses can be manufactured to meet project-specific requirements.
Quality Assurance:
  • Material traceability with mill test certificates
  • Dimensional verification to ASME B16.9 tolerances
  • Surface inspection for defects and imperfections
  • Optional NDE testing (RT, UT, PT, MT) per project specifications
  • Positive material identification (PMI) available upon request
Our technical team can provide stress analysis and flow calculations for critical applications. Download our comprehensive dimension tables and pressure rating charts for proper specification. Volume pricing available for large projects with lead time optimization.
