Heavy-Duty Cable Drum Jack | Adjustable Pay-Off Cable Reel Stand for Wire and Cable Handling

1. Product Overview

The Heavy-Duty Cable Drum Jack is a stable and durable solution designed for lifting, supporting, and paying off large cable reels during electrical wiring, utility construction, and installation work. With its robust structure and adjustable height, this cable reel stand ensures a smooth and controlled cable pay-off, reducing labor effort and improving jobsite efficiency. It is widely used in power transmission, telecom, factory wiring projects, and underground or overhead cable installation.

2. Product Definition

A Cable Drum Jack, also known as a Cable Reel Stand or Pay-Off Stand, is a mechanical device used to lift heavy cable drums off the ground and allow smooth rotation during cable pulling. The adjustable jack supports reels of different diameters and weights, enabling operators to unroll cables safely and efficiently.

3. Key Features

• Heavy-Duty Steel Construction
  Built with reinforced steel frames for maximum stability and long-term reliability.

• Adjustable Height Design
  Supports a wide range of cable drum sizes and allows easy height adjustments for different working environments.

• Smooth Cable Pay-Off System
  Designed with a rotating spindle or shaft to ensure controlled and even cable release without tangling.

• Anti-Slip Base for Safety
  Wide base and anti-slip pads provide excellent ground grip to prevent tipping during operation.

• Compatible with Manual or Hydraulic Jacks
  Available with manual screw-type jacks or optional hydraulic lifting systems for heavy drum handling.

• Portable and Easy to Set Up
  Compact structure makes it easy to transport and assemble at any jobsite.

4. Product Advantages

• Improves Work Efficiency
  Allows cable reels to rotate easily, significantly reducing manual handling time.

• Reduces Labor Intensity
  Eliminates the need for heavy lifting, protecting workers from fatigue and injury.

• Supports Large Cable Drums
  Ideal for heavy, large-diameter power cables used in electrical and utility projects.

• Long Service Life
  High-strength materials and corrosion-resistant coating ensure extended durability.

• Stable and Safe Operation
  Sturdy frame design prevents wobbling or drum displacement during cable pay-out.

5. Typical Applications

The Heavy-Duty Cable Drum Jack is suitable for:

• Power transmission line construction

• Electrical wiring installation projects

• Telecom and fiber optic cable deployment

• Underground and overhead cable pulling

• Factory and industrial electrical maintenance

• Construction sites needing reliable cable pay-out

• Utility engineering and municipal projects

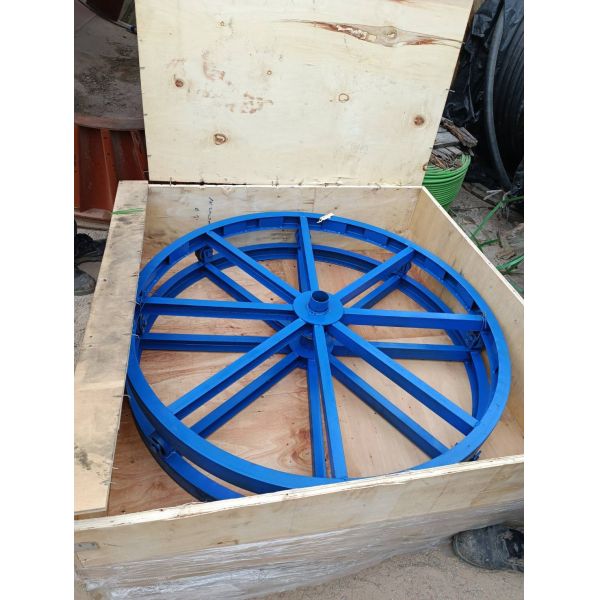

Technical Data for Cable drum jack/ Plate Cable Reel Stand

6. Frequently Asked Questions (FAQ)

Q1: What drum sizes can the cable drum jack support?

A: It supports a wide range of cable reel diameters and widths. Custom sizes are available based on customer requirements.

Q2: Is this stand suitable for very heavy cable drums?

A: Yes. The heavy-duty model supports high load capacities and can be equipped with hydraulic lifting for extremely heavy reels.

Q3: How is the drum lifted onto the stand?

A: The drum is lifted using the built-in manual screw jack or hydraulic jack, depending on the model.

Q4: Can it be used outdoors?

A: Absolutely. The stand is made with corrosion-resistant steel and is suitable for outdoor and harsh environments.

Q5: Is assembly difficult?

A: No. The structure is simple and can be set up within minutes with basic tools.
