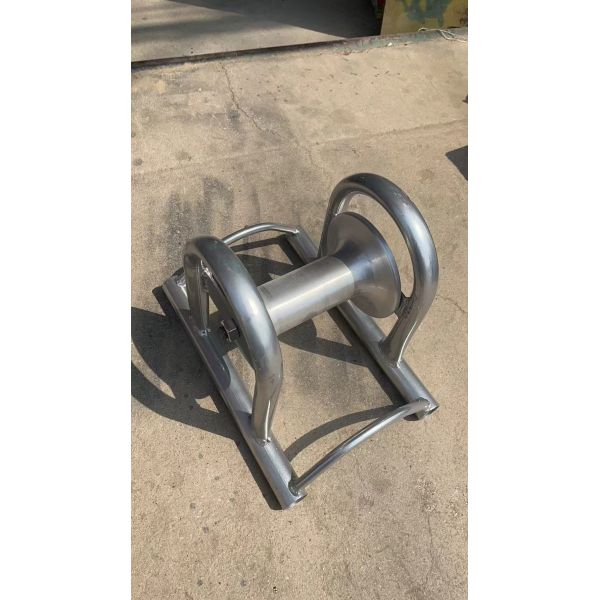

10KN Rated Load Heavy-Duty Aluminum Straight Line Cable Roller for Smooth Wire Pulling in Underground & Overhead Cable Installation

Heavy-Duty Aluminum Straight Line Cable Roller – Smooth Wire Pulling Guide for Underground & Overhead Cable Installation

1. Product Overview

The Aluminum Wheel Straight Line Cable Roller is a professional cable guiding tool designed for smooth and efficient cable pulling in straight-line pathways. With a high-strength aluminum alloy wheel and a sturdy steel frame, this roller minimizes friction and protects cable jackets during installation. It is widely used in underground cable laying, overhead line construction, and various wire-pulling operations in power, communication, and utility projects.

2. Product Definition

A Straight Line Cable Roller is a guiding device placed on the ground or inside cable trenches to support and direct cables during pulling operations. Its primary function is to reduce cable drag, prevent insulation damage, and ensure a smooth, low-resistance pulling path. The aluminum wheel provides lightweight durability, making the roller suitable for both heavy-duty and long-distance stringing work.

3. Key Features

• High-Strength Aluminum Wheel: Corrosion-resistant, lightweight, and capable of handling heavy cable loads.

• Heavy-Duty Steel Frame: Powder-coated or galvanized frame ensures stability and long service life.

• Low-Friction Rotation: Equipped with sealed bearings for smooth and effortless cable movement.

• Straight-Line Design: Ideal for guiding cables on flat surfaces or trench bottoms.

• Wide Cable Compatibility: Suitable for power cables, fiber optic cables, communication lines, and more.

• Easy Deployment: Simple to position and adjust along the cable route.

4. Product Advantages

• Protects Cable Insulation: Reduces friction and prevents scratching or deformation during pulling.

• Improves Work Efficiency: Smooth rotation significantly reduces pulling force and installation time.

• Durable for Outdoor Use: Aluminum wheel and steel frame withstand harsh construction environments.

• Lightweight & Portable: Easy for workers to carry and set up in long-distance cable projects.

• Cost-Effective: Long service life with minimal maintenance requirements.

5. Applications

The Aluminum Straight Line Cable Roller is widely used in:

• Underground Power Cable Installation

• Telecommunication & Fiber Optic Cable Laying

• Overhead Line Construction & Stringing

• Substation and Utility Project Cable Routing

• Infrastructure and Industrial Cable Pulling

• Construction Sites and Electrical Contractors

Data Sheet

6. FAQ

Q1: What cable sizes are suitable for this roller?

It is compatible with most medium to large-diameter power cables, communication cables, and fiber optic cables. Custom sizes can be provided.

Q2: Is the aluminum wheel durable for outdoor use?

Yes. The aluminum alloy is corrosion-resistant and built for long-term field work.

Q3: Can the roller handle heavy cable loads?

Absolutely. The steel frame and sealed bearings allow it to support significant cable weight during pulling.

Q4: Do the rollers require maintenance?

Only basic cleaning and occasional lubrication of bearings are recommended.

Q5: Can this roller be used with winches or cable pullers?

Yes. It is compatible with all standard pulling winches and stringing equipment.
