High-temperature Resistant Air-water Cooled Thermal lmaging Camera

Categories High Temperature Furnace Camera
Brand Name: KAIDUN
Model Number: KDG003
Place of Origin: China
MOQ: 1
Payment Terms: T/T
Supply Ability: 5000 units/year
Delivery Time: 5-8 week
Packaging Details: Wooden box packaging / cardboard box packaging
Thermal Resolution: 384*288,640*512 etc
Pixel Size: 17μm
Temperature  Museurement Range: -20°C to 150°C / 0°C to 550°C
Temperature Museurement accuracy: ±2°C or ±2% of the reading(whichever is larger).
Power: DC12V
Total Weight: ≤4.5kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

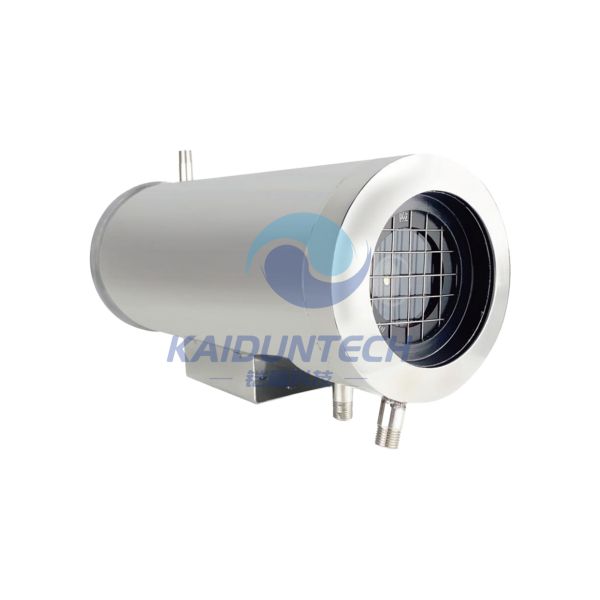

High-temperature Resistant Air-water Cooled Thermal lmaging Camera

High-temperature Resistant Air-waterCooled Thermal lmaging Camera
Key Features
  • The KDG002 is a High-temperature Camera Equipped with an Air-cooled Dome housing
  • The temperature-measuring lens enables it to have a temperature measurement range of -20°C to 550°C, with a measurement accuracy of +2°C or +2% of the reading (whichever is larger).
Application Environment

Metallurgical & Steel Industry


Power Generation Industry


Petrochemical & Chemical Industry


Glass & Ceramic Industry


Waste Incineration & Environmental Protection

High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
Main Features
MaterialDouble-layer 304/316L Stainless Steel
Protection ClassIP66
Working Temperature-10℃~+150℃C/+200℃(with refrigeration tube)
Working Humidity<95%(non-condensing)
VideoIP
Thermal Resolution384*288,640*512 etc
Pixel Size17μm
Spectral Range8~14μm
Comperssed Air Pressure0.2~0.4Mpa
Compressed Air Flow Rate0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
Temperature Museurement Range-20°C to 150°C / 0°C to 550°C
Temperature Museurement accuracy±2°C or ±2% of the reading(whichever is larger).
VoltageDC12V
Dimensions360*150*145mm
Weight≤4.5kg
MountingStainless Steel Wall-mounted,Pole Installation, etc.
Dimensions
