| Categories | USB Shell2.0 |
|---|---|
| Brand Name: | ShuangYi |
| Model Number: | SHU-04M-023-N2H |
| Certification: | ROHS, HF, ISO 9001, ISO 14001, IATF 16959 |
| Place of Origin: | China |
| MOQ: | 1000 |
| Price: | $0.01-0.02 PCS FOB |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pcs per month |
| Delivery Time: | 8-15 working days |
| Packaging Details: | Tape and Reel, 1500 per case, 10KG |
| Structure: | Two-piece stamped iron shell (SPCC) |
| Material: | Brass (C2680) |
| Plating: | Copper ≥100 μ″ + Nickel ≥80 μ″ |
| Surface Treatment: | Smooth, no scratches, dents, or deformation |
| Orientation: | 180-degree straight type |
| Application Category: | Wire-to-PCB, power transmission, electronic equipment |
| Compliance: | RoHS, REACH |
| Withstand Voltage: | AC 500V/min |
Product Description

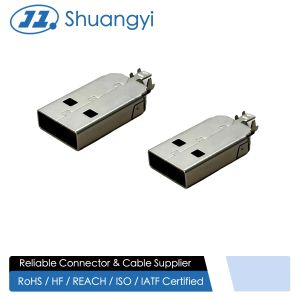

This USB 2.0 AM connector features a durable two-piece SPCC metal shell with a 24.7 mm length and support for 2.2 mm cable OD, making it ideal for molded USB cable assemblies. The shell is plated with 100 μ″ copper and 80 μ″ nickel to ensure excellent corrosion resistance, conductivity, and long-term stability. Designed for reliable electrical and signal transmission, it is widely used in computers, peripherals, chargers, consumer electronics, and custom wire-to-cable manufacturing.
| Product Type | USB 2.0 AM 2-Piece Metal Shell Connector |
| Structure | Two-piece stamped iron shell (SPCC) |
| Overall Length | 24.7 mm |
| Cable OD Compatibility | 2.2 mm |
| Material Thickness | 0.35 mm (SPCC) |
| Plating | Copper ≥100 μ″ + Nickel ≥80 μ″ |
| Insulation / Fit | Designed for molded USB cable assembly |
| Salt Spray Test | 24 hours minimum |
| Application | Data transmission & power supply cables |
| Compliance | RoHS2.0 + REACH |
Applications
USB data and power cable manufacturing
Consumer electronics and peripheral devices
Computer accessories and charging products
Automotive infotainment wiring
Custom PCB-to-wire cable assemblies
Ensure cable OD matches the required 2.2 mm for proper molding and strain relief
Verify plating thickness requirements before mass production
Avoid deformation of the shell during assembly and crimping
Store in a dry, clean environment to maintain surface integrity
|
