SAS 29P Wire Solder Female Cable Connector with Positioning Peg and Bump, 1.27mm Pitch 15U" Gold Electrical Signal Terminal Connector for Server, Storage & Automotive Power Transmission

Categories Solder Wire Connector
Brand Name: ShuangYi
Model Number: SAS-C29F-02S43A5-00LH
Certification: ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin: China
MOQ: 1000
Price: $0.15-0.25 PCS FOB
Payment Terms: T/T
Supply Ability: 500000 pcs per month
Delivery Time: 8-15 working days
Packaging Details: Tape and Reel, 1500 per case, 10KG
Housing Material: LCP G/F Black UL94V-0
Terminal Material: Phosphor Bronze C5191-H
Type: IDC / crimp wire termination (staking type)
Rated Current / Voltage: 1.5A @ 40VAC
Contact Resistance: ≤ 30 mΩ
Insulation Resistance: ≥ 1000 MΩ
Withstand Voltage: 500VAC / minute
Operating Temperature: -20°C ~ +85°C
Plating: Au G/F plated on contact area
Environmental Standard: ROHS 2.0+HF
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

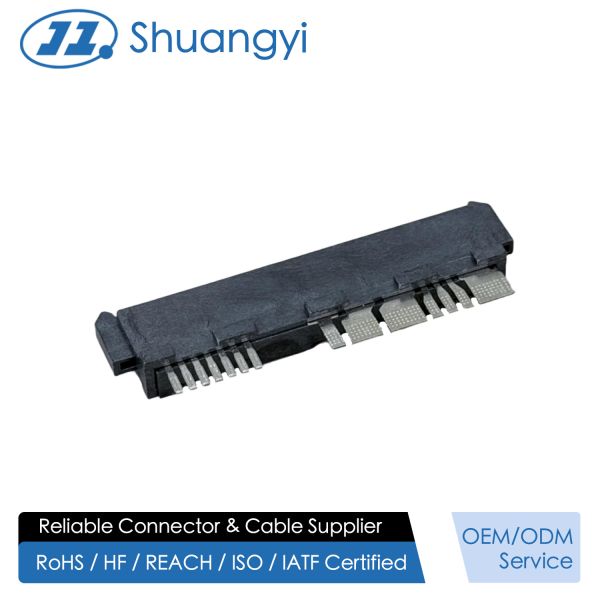

SAS 29P Wire Solder Female Cable Connector with Positioning Peg and Bump, 1.27mm Pitch 15U" Gold Electrical Signal Terminal Connector for Server, Storage & Automotive Power Transmission

Our SAS 3.0/4.0 series connectors deliver exceptional data transfer speeds of up to 24 Gb/s, ensuring stable and efficient transmission for enterprise storage and server systems. Designed with high reliability and hot-plug capability, each connector undergoes strict quality control and automated precision manufacturing. With flexible customization options and strong R&D support, our SAS connectors are ideal for both board-to-board and wire-to-board applications in enterprise storage systems, servers, and data centers requiring consistent, high-speed performance. ShuangYi Precision — Powering Smarter Connections.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

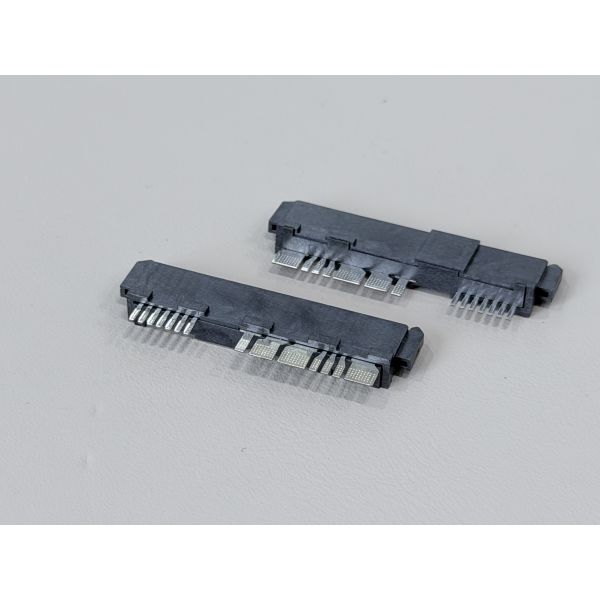

The SAS 29P Solder-Type Female Cable Connector 180° with Positioning Peg & Top Boss is a robust electronic signal and power connector designed for SAS-based server, storage and industrial applications. With a 1.27mm pitch housing and 29 female pins, it enables compact, high-density wire and cable assemblies between backplanes, test fixtures or dummy ports and controller boards.

Each terminal is made from phosphor bronze C5191-H (t = 0.25mm) and receives a three-layer plating system:

  • 50u" minimum nickel over the entire terminal for corrosion resistance,

  • 15u" minimum gold on the contact area to ensure low contact resistance and stable high-speed electrical signal performance,

  • 80u" minimum tin on the solder tail for strong solder joints to copper wires in cable harnesses.

The glass-filled LCP housing (black, UL94-V0, Halogen-Free) offers excellent mechanical strength, dimensional stability and heat resistance, making the connector suitable for demanding electrical and electronic equipment.

Electrically, the connector is rated at 1.5A @ 40VAC, with contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and withstand voltage 500VAC/minute. Mechanical specifications define mating and unmating forces for both backplane and cable, and single pin retention ≥0.8kgf, ensuring that terminals remain secure even under vibration and handling.

The positioning peg and top boss help align the connector accurately in jigs, housings or over-molded shells, simplifying assembly and improving reliability for customized wire, cable and PCB interconnect solutions.

Product TypeSAS “dummy” 29P female cable connector, 180° straight, wire solder type, with positioning peg and top boss
Interface SeriesSAS series
Number of Positions29 pins (29P)
Pitch of Housing1.27mm (C: 1.27 pitch of housing)
GenderFemale connector
Links Way of Terminal with WireS43: solder way of 180° terminal with wire (soldered cable type)
Plating Specification CodeA5: Au 15u" plated
Rated Current / Voltage1.5A @ 40VAC
Operating Temperature–20°C to +85°C
Contact Resistance≤ 30mΩ (Max)
Withstand Voltage500VAC / minute
Insulation Resistance≥ 1000MΩ (Min)
Terminal Plating – BaseNi 50u" min plated over terminal
Contact Area PlatingAu 15u" min plated on contact area
Solder & Crimp Area PlatingSn 80u" min plated on solder & crimp area
Mating ForceBackplane ≤ 25N max; Cable ≤ 50N max
Unmating ForceBackplane ≥ 5N min; Cable ≥ 20N min
Single Pin Retention Force≥ 0.8kgf per pin
Durability Test – Frequency200 cycles/hour, 25 cycles
Durability After TestContact resistance per pin ≤ 30mΩ, no distortion, split, curliness or cracks
Salt Spray TestGold-plated area ≥ 48 hours (salt spray)
Housing MaterialLCP G/F, Black, UL94-V0, Halogen-Free (HF)
Terminal MaterialPhosphor Bronze C5191-H, t = 0.25mm (TS-C07F-S04, TS-C15F-S86)
Environmental ComplianceRoHS 2.0 + HF
Special FeaturesPositioning peg for accurate location; straight body with top boss for mechanical guidance and locking; wire solder tail for cable assembly


Key Features

  • SAS 29P, 1.27mm pitch solder-type female connector designed for high-density wire and cable applications
  • Ni 50u" + Au 15u" contact plating provides low contact resistance, excellent conductivity and corrosion resistance
  • Sn 80u" min on solder area ensures reliable electrical and mechanical bonding with copper wires
  • Phosphor bronze C5191-H terminals offer stable spring force and durability under vibration and repeated insertion/removal
  • LCP G/F black UL94-V0, HF housing delivers high mechanical strength and heat resistance for harsh server, automotive and industrial environments
  • Defined mating/unmating forces for both backplane and cable help protect terminals and maintain consistent connection quality
  • Single pin retention ≥0.8kgf prevents terminal back-out during assembly, cable pulling or long-term use
  • Positioning peg and top boss provide precise mechanical guidance and locking, ideal for over-molding and custom connector shells
  • Fully RoHS 2.0 + Halogen-Free compliant, suitable for global electrical and electronic markets

⚙️ Applications

  • This SAS 29P IDC female connector is suitable for a wide range of wire / cable / electrical uses:
  • Server & Data Center Wiring Harness
    • SAS dummy or alignment connectors in backplane harnesses
    • Internal server cable assemblies between controller boards and mechanical interfaces
  • Storage & Communication Equipment
    • Cable harnesses in disk arrays, JBOD, NAS and test fixtures
    • Communication equipment where SAS-style connectors are used for signal or power routing
  • Automotive & Industrial Electronics
    • Industrial PCs, data logging systems and test jigs requiring robust SAS-style cable connectors
    • Vehicle and equipment harnesses where high-density, reliable electrical connector performance is required
  • Custom Wire & Cable Assemblies
    • OEM / ODM wire cable electronic connector solutions for PCB-to-cable or cable-to-cable transmission
    • Mechanical dummy or keying connectors in fixtures, test boards and simulation systems

⚠️ Notes

  • Select appropriate wire gauge and insulation according to the 1.5A @ 40VAC rating and application requirements (signal + power).
  • Use the recommended soldering process for the tin-plated tails; ensure sufficient solder wetting for low resistance and high pull-out strength.
  • Keep the gold-plated contact area clean; avoid touching terminals with bare fingers to prevent contamination and oxidation.
  • When assembling, make full use of the positioning peg and top boss to align the connector correctly in fixtures or housings, reducing stress on the terminals and PCB.
  • Do not exceed the specified mating/unmating forces for backplane and cable to maintain terminal elasticity and connector lifetime.
  • After durability testing (up to 25 cycles at 200 cycles/hour), verify that contact resistance per pin remains ≤30mΩ and that no distortion, cracks or deformation appear.
  • Store connectors in dry, anti-static packaging, and handle them in ESD-protected areas when integrating into sensitive electronic systems.
  • Operate only within the specified temperature range (–20°C to +85°C) and electrical ratings to guarantee long-term reliability.
