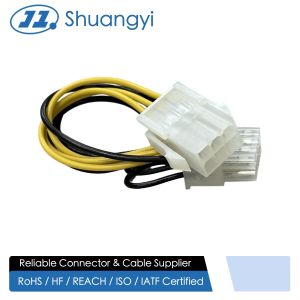

Power connector cable male 4-pin to female 6-pin GPU PCIe, electrical wire harness for PC power supply, server graphics card, automotive DC power transmission customization

Categories	PSU Cable
Brand Name:	ShuangYi
Model Number:	Mx 4.2 2x4P M TO Mx 4.2 2x3P F
Certification:	ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin:	China
MOQ:	1000
Price:	$0.79-0.97 PCS FOB
Payment Terms:	T/T
Supply Ability:	500000 pcs per month
Delivery Time:	8-15 working days
Packaging Details:	Tape and Reel, 1500 per case, 10KG
Product Type:	4-pin to 6-pin power connector cable / adapter wire harness
Function:	Board-level electrical / electronic signal connection
Connector style:	8-pin power connector, latch design, keyed housing
Mounting type:	SMT to PCB with mechanical pegs
Housing material:	PA66 (nylon), UL94V-0 flame-retardant
Contact material:	Phosphor bronze terminals
Contact plating:	Tin plated (gold plating available on request)
Rated current:	Up to 1.5 A per contact (reference, application dependent)
Rated voltage:	Up to 30 V AC / DC (low-voltage signal use)
Insulation resistance:	≥ 1,000 MΩ at 500 V DC
Contact resistance:	≤ 30 mΩ (initial)
Dielectric strength:	300 V AC / minute
Mechanical durability:	≥ 500 mating cycles
Operating temperature:	−20 °C to +105 °C
PCB thickness reference:	Around 1.0 mm board edge design
RoHS/REACH:	Halogen-free, RoHS-compliant materials
Customization options:	Gold thickness, housing color, packaging, harness assembly
Environmental compliance:	RoHS / HF / REACH compliant

Contact Now

Add to Cart

Company Info.

ShuangYi Precision Electronics Co., LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Power connector cable male 4-pin to female 6-pin GPU PCIe, electrical wire harness for PC power supply, server graphics card, automotive DC power transmission customization

Product Description

This power connector cable converts a standard 4-pin peripheral power output to a 6-pin PCIe connector for graphics cards and other electronic equipment. High-conductivity 18 AWG copper wires and reliable crimped terminals ensure low-loss power transmission and stable electrical performance. The nylon housings with locking features provide secure mating with mating terminals, preventing accidental disconnection under vibration.

The wire harness is designed for easy routing inside PC cases and server chassis. Black and yellow power wires clearly distinguish ground and 12 V lines, simplifying installation and maintenance. Custom wire length, connector combinations, and pin configurations are available to match different PCB layouts, power supplies, and device interfaces.

Product type	4-pin to 6-pin power connector cable / adapter wire harness
Connector A	Male 4-pin peripheral power plug (Molex-style)
Connector B	Female 6-pin PCIe GPU power connector
Pin pitch	4.20 mm (typical PCIe / peripheral power pitch)
Number of positions	4 pins (input), 6 pins (output)
Wire gauge	18 AWG stranded tinned copper (customizable 16–22 AWG)
Wire insulation	PVC, black and yellow power wires
Cable length	150 mm standard, length and routing customizable
Rated voltage	300 V AC/DC
Rated current	Up to 7 A per contact (depending on wire gauge and ambient temperature)
Contact material	Phosphor bronze terminals
Contact plating	Tin plated (gold plating available on request)
Housing material	PA66 (nylon), UL94V-0 flame-retardant
Termination method	Crimp terminals inserted into plastic housings
Operating temperature	−20 °C to +105 °C
Compliance	RoHS / REACH / halogen-free options
Customization options	Cable length, wire gauge, color, connector type, pin count, packaging, logo

Applications

Supplying 12 V power from desktop PC power supplies to 6-pin PCIe graphics cards.

Power adapter cable for workstation and server upgrades where additional GPU power connectors are required.

DC power transmission inside industrial PCs, mining rigs, and embedded control cabinets.

Replacement or customized harnesses for OEM system integrators and automotive/industrial electronic projects.

Precautions

Name: Power connector cable male 4pin to female 6pin GPU PCIe electrical wire harness for PC power supply server graphics card automotive DC power transmission customization
Brand: ShuangYi
Price: 0.79 USD

Verify that the power supply can provide sufficient current on the 12 V rail before connecting high-power GPUs or other loads.

Check connector orientation and pin assignment; incorrect wiring may damage the graphics card, PCB, or power supply.

Do not exceed the rated current and temperature limits of the cable, connectors, or terminals.

Avoid excessive bending, pulling, or twisting of the wire harness during installation.

Ensure all connectors are fully inserted and locked before powering on the system; periodically inspect for loosened terminals or discoloration caused by overheating.
