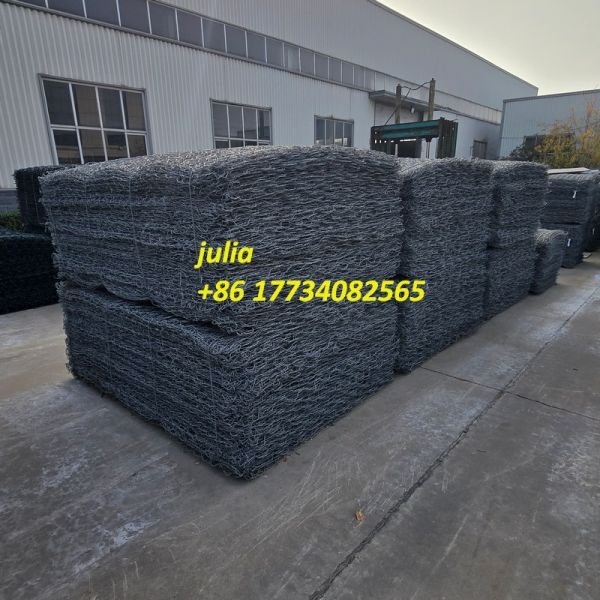

80x100mm Mesh Structure Woven Gabion Basket Wire Mesh For Riverbank Stabilization And Flood Defense

Manufacturer Double Twisted Types Gabion Basket For Construction ​Project

Constructed from double-twisted hexagonal steel mesh (2.7-4.0mm wire diameter) with galvanized or PVC coating, our woven gabion baskets are designed for water control infrastructure. The 80×100mm mesh structure forms durable, permeable containers when filled with stone, used in riverbank stabilization, flood defense barriers, and coastal revetments. Standard units (1×1×1m to 2×1×1m) feature internal diaphragms for structural integrity in flowing water. Compliant with EN 10223-3 standards, these baskets adapt to subgrade contours while resisting hydraulic pressure. Custom dimensions and configurations are available for dam construction, bridge abutment protection, and erosion-prone waterway projects.

• Free samples available (freight to be paid by the customer).
• Ample inventory for fast delivery.
• A variety of styles to choose from.

• We welcome customers' suggestions on prices and products.
• If you have any questions, pls feel free to contact us via email or phone at any time.Julia here , waiting for you .

• (1) Aperture: 60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm, 90*110mm
  The length of the twisted part of the double wire shall not be less than 50mm. In order to ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.
  (2) Wire diameter: gabion mesh is divided into three wire diameters - mesh wire, edge wire, tied wire
  1. The range of mesh is 2mm-4mm
  2. The edge wire is generally larger than the mesh wire, 0.5-1.0mm thicker than the mesh wire
  3. The binding wire is generally smaller than the mesh wire, and the most common one is 2.2mm
  (3) Steel wire tension: not less than 38kg/m2 380N/mm
  (4) Surface treatment
  1. Electro-galvanized. The amount of zinc is 10g/m2. Poor corrosion resistance
  2. Hot dip galvanized. The amount of zinc can reach 300g/m2. Strong corrosion resistance
  3. Galvan (zinc-aluminum alloy). This is divided into two materials, zinc-5% aluminum-mixed rare earth alloy steel wire, zinc-10% aluminum mixed rare earth alloy steel wire. Super anti-corrosion
  4. PVC coated. The thickness of the plastic wrap is generally 1.0mm thick, for example: 2.7mm is 3.7mm after wrapping. Strong corrosion

• Mesh Sizes (mm)	Gabion basket dimensions and volumes					Wire diameter
  	L(M)	W(M)	D(M)	Capacity(m³)	Number of diaphragm
  60*80 80*100 100*120	4	2	0.3	2.4	3	Mesh Wire: 2.0mm,2.2mm 2.5mm, 2.7mm,3.05mm. 2.0/3.0mm,2.2/3.2mm 2.5/3.5mm,2.7/3.7mm. selvedge wire: 2.5mm,2.7mm 3.2mm,3.4mm,3.8mm 2.5/3.5mm,2.7/3.7mm 3.2/4.2mm,3.4/4.4mm lacing wire: 2.0mm,2.2mm 2.0/3.0mm,2.2/3.2mm
  	6	2	0.3	3.6	5
  	4	2	0.23	1.84	3
  	6	2	0.23	2.76	5
  	2	1	0.5	1	1
  	3	1	0.5	1.5	2
  	4	1	0.5	2	3
  	2	1	1	2	1
  	3	1	1	3	2
  	4	1	1	4	3
  Other specifications can also be customized processing.

• Cost-effective: Simply fill with stones and seal for use.
• Easy Installation: No special skills required.
• Weather-resistant: Good corrosion resistance in natural environments.
• Eco-friendly: The gaps between stones allow silt to accumulate, which is conducive to plant growth and can blend with the natural environment.
• Low Transportation Costs: Foldable for transportation and then unfolded on-site.

Application Fields

• Water Conservancy Projects: Used for embankments, riverbank protection, and waterway lining to effectively prevent scouring by water flow.
• Environmental Protection: Plays an important role in ecological restoration and soil conservation.
• Road Protection: Protects road foundations, enhancing the stability and durability of roads.
• Coastal Protection: Used in seawalls and port projects to resist wave erosion.

Cooperation and Services

Hebei KN Wire Mesh Co., Ltd, was established in 2013, is a professional manufacturer engaged in the research, development, production, sale and service of Defensive barrier, Welded Gabion Box, Wave Gabion Basket , Gabion Mattress. We are located in Anping county hengshui city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including welded wire mesh machine,Cutting Machine,Bending machine,air pump,Punching machine. We have strong technical strength,scientific management and complete inspection means to guarantee iron wire products of high grade .We will with the most preferential price,best quality in the face of the customer. In addition, we have obtained ISO EU CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Britain, France, Germany, USA,UK Kenya, Zambia, Philippines,Thailand,Korea,New Guinea,Greece, Mexico. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Our company always insist on the quality strives for the survival, to the credibility of development the objective, wholeheartedly for the domestic and foreign customers, with quality products and first-class service. and foreign customers, with quality products and first-class service.
