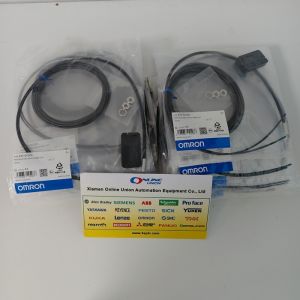

E32-DC200 2M OMRON Fiber Optic Sensor Head

Omron E32-DC200 Fiber Optic Sensor Head

Fiber optic sensor head, diffuse, M6 cylindrical axial, R25 fiber, 2 m cable.

The OMRON E32-DC200 is a diffuse-type plastic fiber optic sensor designed for reliable object detection in various industrial applications. It features a compact and flat model design that allows for easy attachment and wiring, saving space and simplifying installation. The sensor is suitable for detecting both conductive and dielectric objects, making it versatile for different sensing tasks.

Technical Specifications:

Type: Diffuse-type plastic fiber optic sensor with reflective sensor capabilities.

Sensing Range: The maximum sensing range is 300mm, with a minimum detectable object diameter of 0.005mm.

Fiber Optic Cable: The sensor comes with a 2-meter cable, which can be cut to length for custom fit applications. The minimum bending radius is 10 or 25mm, depending on the cable type.

Operating Temperature Range: The sensor can operate in temperatures ranging from -40°C to 70°C, making it suitable for harsh industrial environments.

IP Rating: The sensor meets the IP67 standard, indicating that it is dust-tight and can withstand temporary immersion in water.

Electrical Ratings: The sensor operates on a voltage range of 12 to 24 VDC, with a ripple (p-p) of 10% max. It consumes a maximum current of 15 mA.

Output Configuration: The sensor features a DC 3-wire NPN output with a normally open (NO) contact configuration. The switch capacity is 100 mA, and the residual voltage is 1.5 V max. at a load current of 100 mA with a 2-meter cable length.

Indicators: The sensor includes a detection indicator (red LED) for easy status monitoring.

Protection Circuits: It is equipped with reverse polarity protection and a surge suppressor to ensure reliable operation.

Compliance: The sensor complies with RoHS standards, indicating that it is free from hazardous substances. It also meets other international standards such as UL, CSA, and REACH SVHC.

Construction: The sensor's case and sensing surface are made of fluorine resin, providing excellent resistance to chemicals and oil. The clamping nuts are included for easy installation.

Weight: The sensor weighs approximately 0.031 kilograms, making it lightweight and easy to handle.
