25BY High Torque 25mm Gearbox Stepper Motor For Industrial Automation

Categories	Geared Stepper Motor
Brand Name:	WEIGU
Model Number:	25BY-50G
Certification:	RoHS
Place of Origin:	China
MOQ:	1unit
Price:	$4.5~7/unit
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	10000Units/month
Delivery Time:	7-30 work days
Packaging Details:	Standard export package, or can be customized
Type:	Geared Stepper Motor
Rated Voltage:	5-24V
Step Angle:	7.5°、15°
Gear Ratio:	1/10,1/30,1/60,1/75,1/100
Insulation Resistance:	100MΩ (MIN.)
Dielectric Strength:	600VAC 1mA 1S

Contact Now

Add to Cart

Company Info.

Yancheng Weigu Intelligent Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

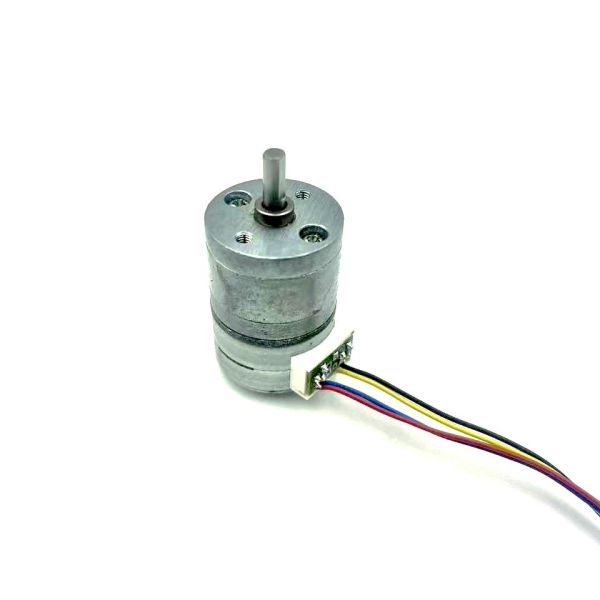

25BY High Torque 25mm Gearbox Stepper Motor For Industrial Automation

The PM25 25mm Reduction Stepper Motor redefines precision engineering for industrial and medical devices. Its core advantage lies in subdivided step angles (via integrated gearbox) and 5 optimized reduction ratios (10–100), delivering amplified load torque and unmatched control accuracy—critical for applications like welding machines, blood analyzers, and fiber fusion splicers. Measuring just 25mm in diameter with a 15mm motor length and four gearbox options (16.0mm–20.5mm), it balances compactness with power.

Operating at 5V–24V, it offers speeds from 10rpm to 500rpm, adapting to slow, precise movements or high-speed workflows. Built with ROHS materials, it’s energy-efficient, low-noise, and low-heat, with a lightweight design for easy installation. What sets it apart? Under non-overloaded, interference-free conditions, its speed and stop position are strictly pulse-controlled—immune to load fluctuations, guaranteeing consistent results. With a motor service life of >10,000 hours and gear life of >2,000 hours, it’s a durable choice for intelligent security products, digital electronics, and saliva analyzers.

Specifications

Product Name	Geared stepper motor
Model	25BY-50G
Resistance	10 Ω ± 10%/ phase (25℃)
Current Per Phase	100 mA/phase(800PPS)
Max Starting Frequency	800 pps
Max Response Frequency	1000 pps
Excitation Method	2-2 phase excitation
Drive Mode	Bipolar drive
Pull-out Thrust	More than 1490g at 200 pps
Insulation Class	Class F for one second
Insulation Strength	100 V AC for one second
Insulation Resistance	50 mΩ DC 500 V
Operating Temperature Range	-0~+ 55 ℃

Mechanical Dimension:MM
