2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers AS60076 Standard


Cast coil transformers are the ideal solution for voltage distribution in harsh environments with airborne dust or high humidity. The windings are vacuum-cast into a solid block of epoxy resin, providing the highest level of protection for the windings.

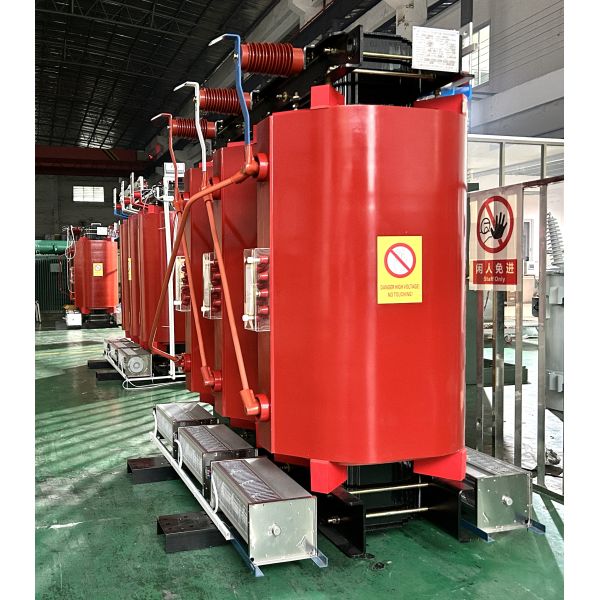

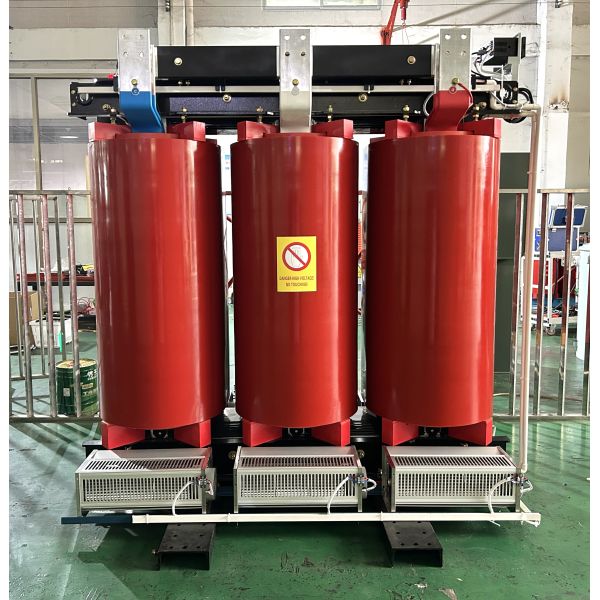

Product Photos

winley electric’s cast coil transformers are designed, built, and tested in accordance with the highest industry standards including NEMA, ANSI, DOE, AS60076,and IEEE as applicable.

Main data

Technical drawings

Features

• Self Cooled (AN/AF)
• 50/60Hz
• Aluminum/copper Windings
• 100°C Temperature Rise
• Primary taps +/-2 x 2.5%
• Terminal Bus Stubs Suitable For Cables
• NEMA 2, 3R, 4, 4X Enclose
• Dial or Digital Thermometers
• Anti-Condensation Strip Heaters
• Anti-Vibration mounting to reduce transformer hum (sound level)
• Distribution, Intermediate or Station Class Surge Arresters
• Provision for Buss Duct Entry
• Fully Insulated Buss
• Mimic Buss

Cast Coil Transformer ​ Benefits

• Low to no maintenance
• Self-extinguishing insulation system
• Can be used in a variety of environments
• Overload capable and fan options for extra cooling
• Lower installation costs than oil-filled transformers

Production process

WINLEY is located in Xiamen, China. We are specialized in manufacturing all kinds of transformers, voltage stabilizers, voltage regulators, etc. The products are widely used in industrial machinery, new energy, power generation, power supply, coal, metallurgy, petroleum, chemical, construction, port, airport, railway transportation, urban infrastructure, and other areas.

With more than 17 years experience, WINLEY always adhere to the route of "Integrity makes brand,quality wins the market"! We have a professional R&D team, a quality control team, scientific production management system and comprehensive customer service system.

WINLEY holds ISO 9001:2015 quality management system certification, All products have approved by CE certification, we can also apply for UL(Authorized by partner), SASO, SONCAP, etc. according to customer requirements.

WINLEY products are sold to Europe, North & South America, Oceania, Asia and Africa, more than 100 countries and regions in the world are using WINLEY products. Products’ quality and technical service are recognized by all customers around the world, and we have cooperative distributors in some countries.

And we will continue to carry forward the integrity of compliance, scientific and technological innovation, win-win cooperation spirit, provide quality products and comprehensive service to all partners, and work hard for the development of the world’s green electrical power.
